XCMG Official hot Asphalt Mixing Plant XAP120 Asphalt batch Mixing Plant price
![](/app/topc/statics/images/close.png)
![XCMG Official hot Asphalt Mixing Plant XAP120 Asphalt batch Mixing Plant price](/images/store/357636/item/XAP120 (4).jpg)
![](/app/topc/statics/images/close.png)
Summary
- Weight:1000kg
- Power(W):298kw
- Model Number:XAP120
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO9001
Specifications
- weight:10000.000kg
- Condition:New
- Moving Type:Other
- Mixing capacity:1750 kg /batch
- Voltage:220V/380V-50Hz
- Rated production rate:120 t/h
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

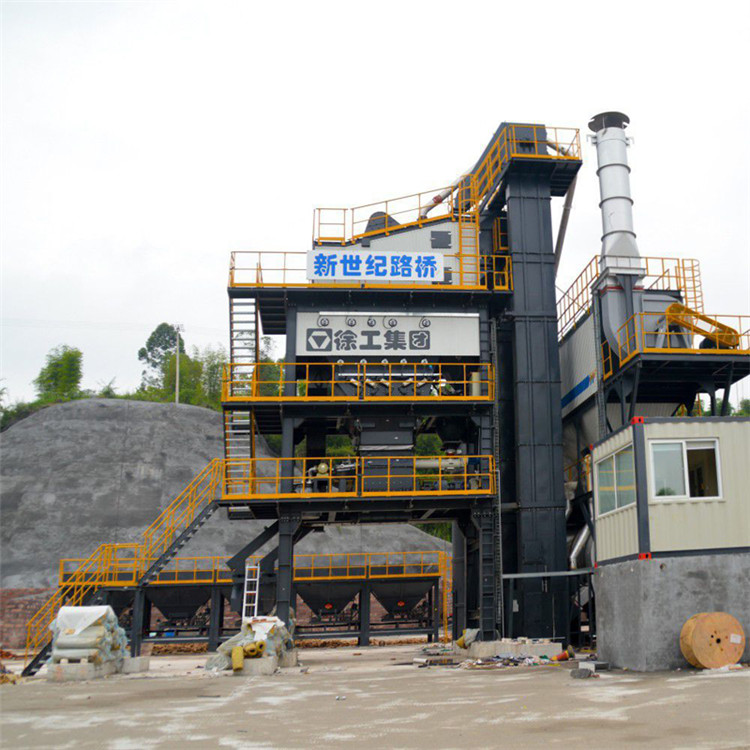

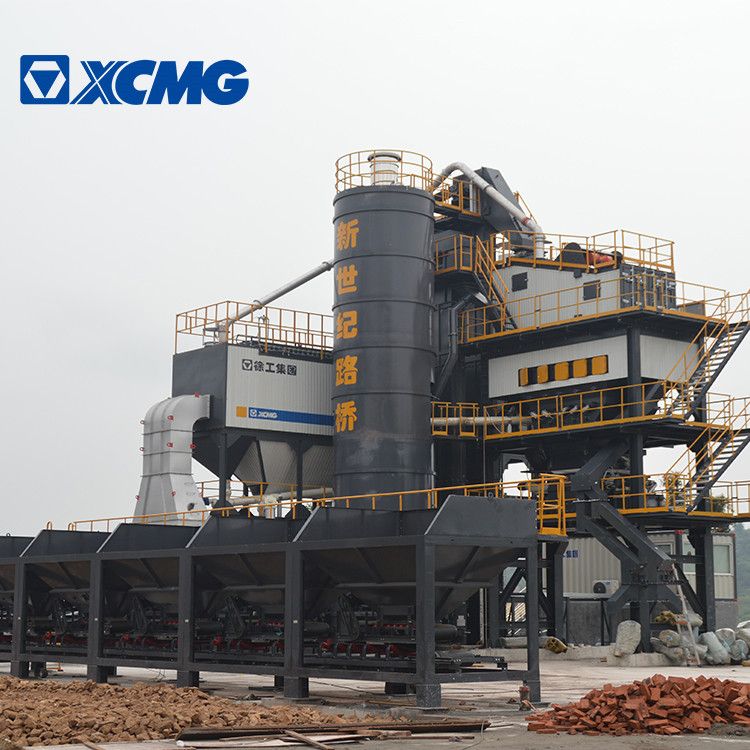

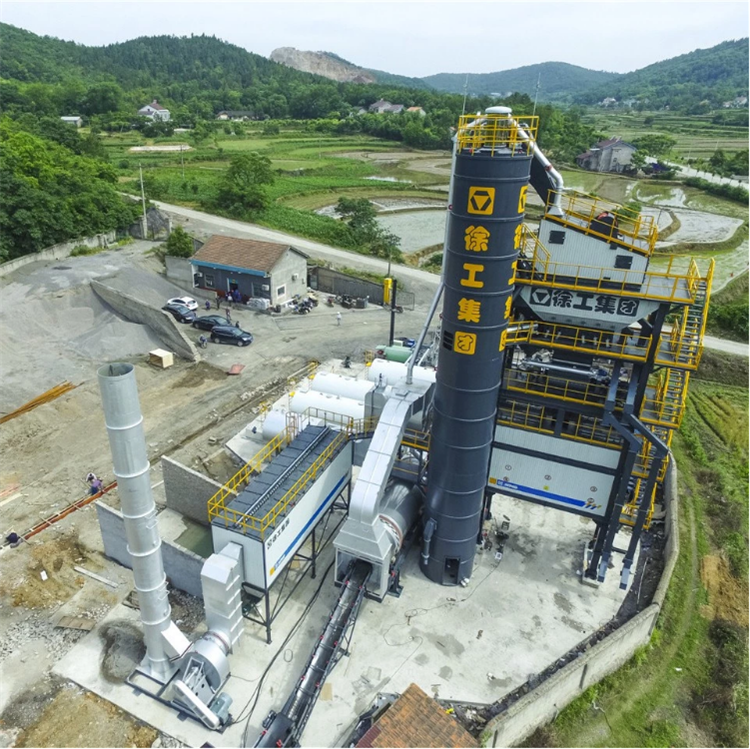

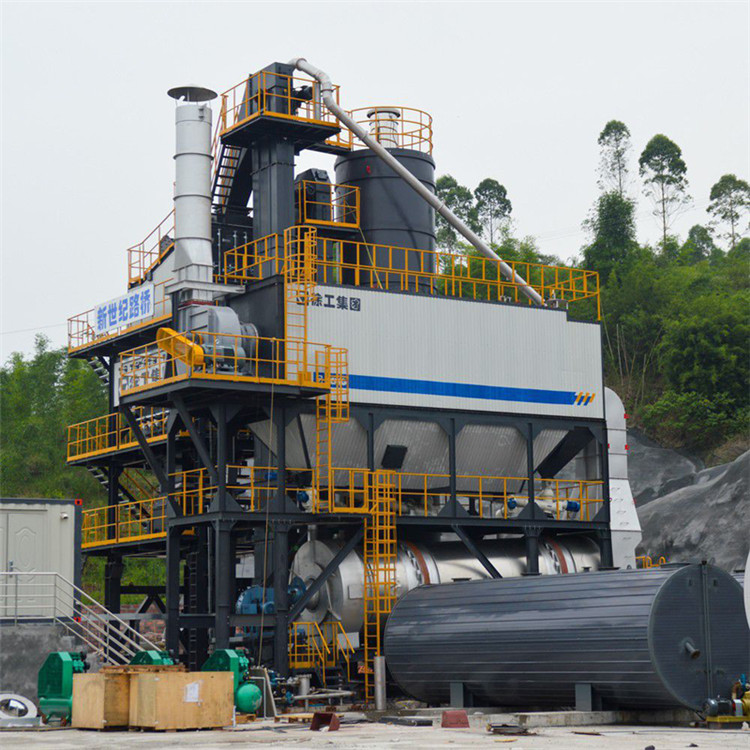

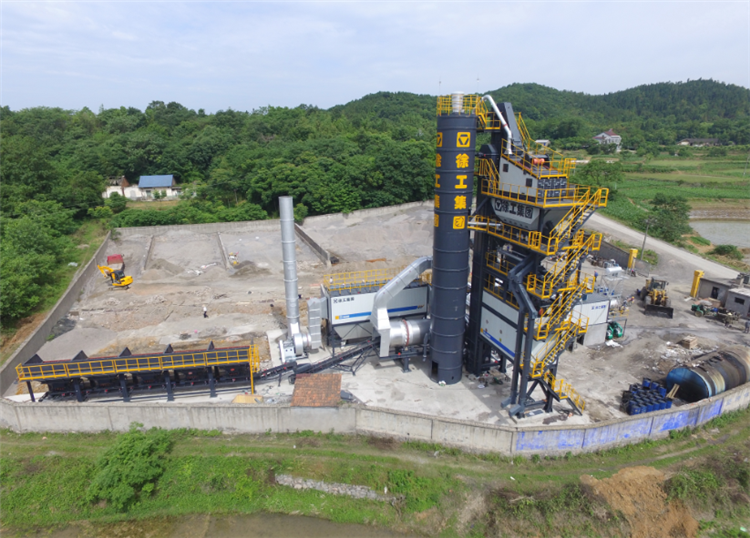

XCMG Official XAP120 Asphalt Mixing Plant.
XAP120
asphalt mixing equipment is a modern advanced product in domestic developed by
XCMG based on the introduction of advanced and mature technology from Europe.
The
equipment can produce various grades of asphalt mixture, modified asphalt
mixture and warm mix asphalt materials, etc., and it can also be used matching
with thermal regeneration equipment and foam asphalt equipment, to fully meet
the needs of grade highway, municipal roads, freight yard and other
engineering.
The equipment is equipped with screening precision control technology, secondary weighing asphalt technology, cauldron slow mixing, intelligent feeding material compensation technology, PID control and expert control technology, optimized combination of secondary dust removal technology and so on, which highlights the core features such as economy, reliability, advancement and intelligence of XCMG asphalt mixing equipment.
Performance
Characteristics:
*
Weichai turbocharged electronic injection diesel engine system, low emissions,
low noise, low fuel consumption, fulfilling the requirements of Chinese Stage
III emission standard. Three level power regulation control technology,
allowing the machine working in the best fuel consumption area, more energy
efficient.
*
Sprinkler system: automatic/manual control mode, user-friendly control, high
spraying precision. Sprinkling water pump has self-priming function, can be
seamless connected to all kinds of water wheel wagon.
*
Milling system: the grain size of milling material can be adjusted according to
the rotor speed and operating speed, so as to ensure the uniformity of material
granularity, meeting the requirements of different grading.
*
Front axle drive mode, propelling speed and operating speed is stepless
variable, convenient for operation.
*
Milling rotor end door can be opened to large angle by electro-hydraulic
control, cutting tools are fast and convenient to replace.
*
Optional rear wheel drive system adapt to complex conditions such as certain
degree of muddy, slippery roads.
Item |
Parameters |
Unit |
|
Rated production rate |
120 |
t/h |
|
Mixing capacity |
1750 |
kg /batch |
|
Fuel consumption rate |
≤6.5 |
kg/t |
|
Dust emission concentration(bag dust) |
≤20 |
mg/Nm³ |
|
Blackness of exhaustion(ringelman
level) |
≤I |
Level |
|
Static measurement accuracy |
±0.3 |
Aggregate |
% |
±0.3 |
Powder |
% |
|
±0.2 |
Asphalt |
% |
|
Dynamic measurement accuracy |
±2.5 |
Aggregate |
% |
±2.5 |
Powder |
% |
|
±2.0 |
Asphalt |
% |
|
Total installed power |
332 |
kW |
|
Maximum stand-alone power |
75 |
kW |
|
Occupied area |
841 (29m×29m) |
2 |
