XCMG official 21 ton Wheel Excavator XE210WB for sale
Summary
- Rated Speed: 2050rpm
- Max Digging Radius:9840mm
- Machine Weight:20500kg
- Maximum Digging Depth:6460mm
- Bucket capacity:0.86m³
- Operating Weight:20500kg
- Model Number:XE210WB
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:20500.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

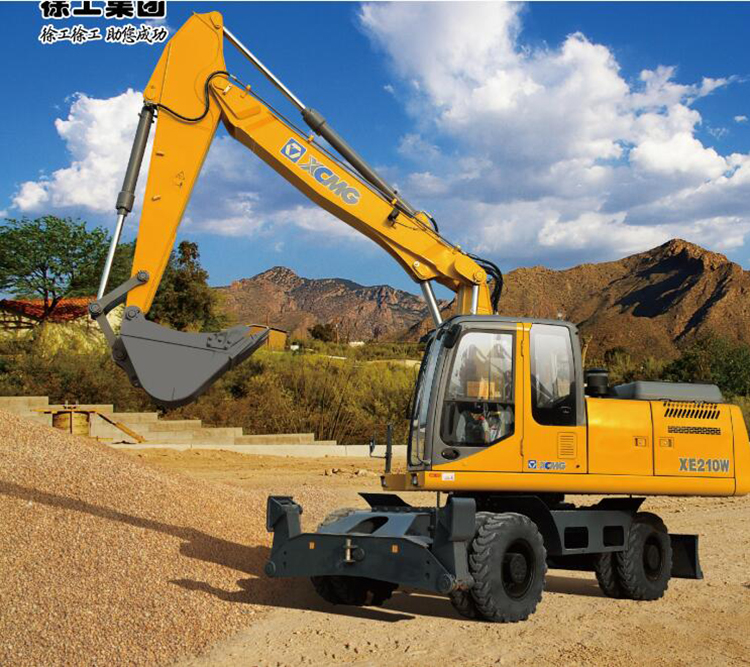

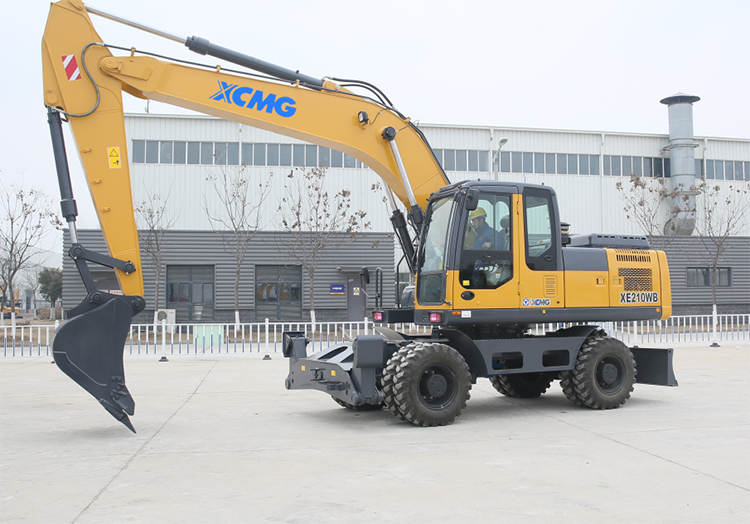

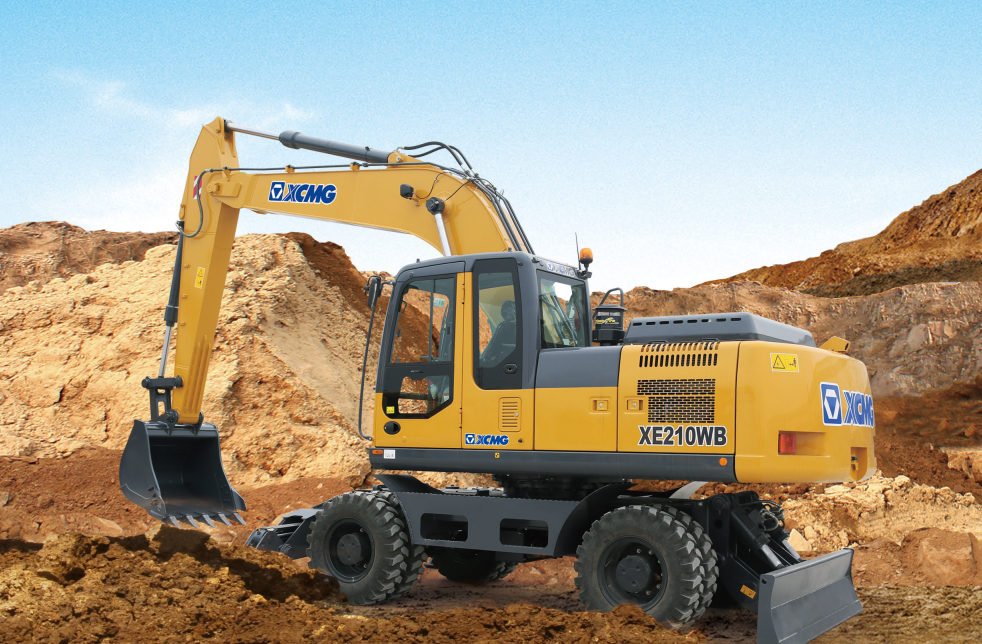

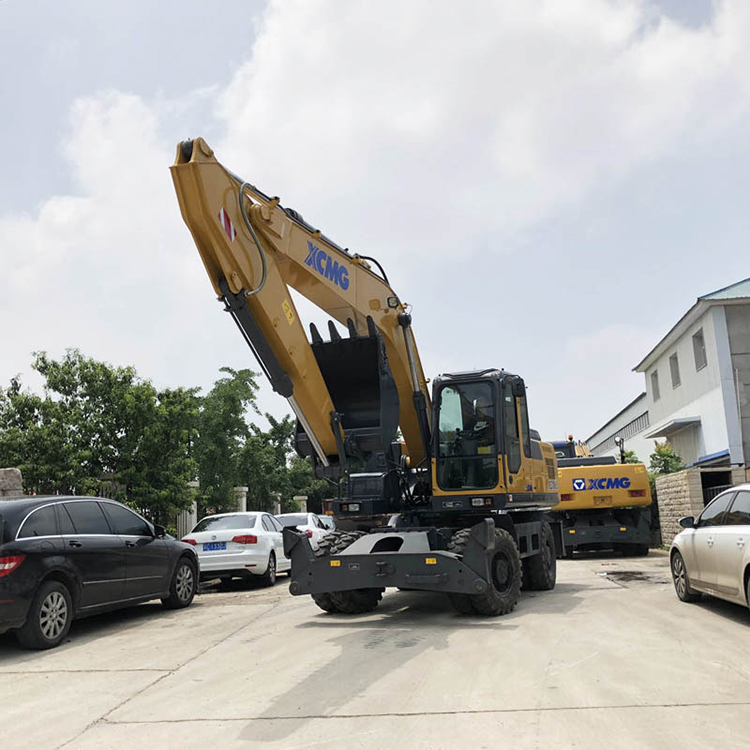

XCMG official 21 ton Wheel Excavator XE210WB.
With its excellent stability, high mobility, first-class digging force and two kinds of working equipment options (single and double boom), XCMG Wheel Excavator XE210WB is strong enough to cope with a variety of working environments. By applying a series of new technologies and multiple functions,XCMG Wheel Excavator XE210WB can guarantee customers' comprehensive benefits and low use costs.
* Adopt the dozer blade that can move in parallel and the assistant stabilizing outrigger to improve the stability of the machine support. The outrigger and dozer blade in contact with the ground are carefully designed to prevent damage to the asphalt pavement. The support of the contact surface is enlarged to further reduce the bearing pressure of the ground.
* The advanced wheel brake system makes the machine brake more effectively. It eliminates the rocking effect of the machine on the wheels when excavating. The transmission and axle integrated braking system can ensure the safety and meanwhile minimize the vibration of the whole machine, and effectively improve the braking stability.
* Along with the self-developed intelligent control system of multi-functional attachments, the machine can perform multiple operations, including crushing, shearing, cleaning, compacting, milling and planning, pushing, clamping, grasping, scraping, loosening and lifting. It is widely used in the earthwork construction of city water, municipal engineering, pipeline maintenance engineering, civil engineering, industrial material loading and unloading, tunnel excavating, water conservancy engineering, urban demolition and relocation.
|
Model |
Unit |
XE210WB |
|
|
Operating weight |
Kg |
20500 |
|
|
Bucket capacity |
m³ |
0.86 |
|
|
Engine |
Model |
/ |
QSB7 |
|
Output power |
kW/r/min |
135/2050 |
|
|
Maximum torque/speed |
N.m |
740/1200 |
|
|
Displacement |
L |
6.7 |
|
|
Fuel tank |
L |
305 |
|
|
Main performance |
Rated flow |
L/min |
2×220 |
|
Working Pressure |
MPa |
31.4/34.3 |
|
|
Hydraulic tank |
L |
202 |
|
|
Swing speed |
r/min |
13 |
|
|
Bucket digging force |
kN |
144 |
|
|
Arm digging force |
kN |
100 |
|
|
Min. turning radius |
mm |
6500 |
|
|
Travel speed |
km/h |
9.5/31 |
|
|
Gradeability |
% |
60% |
|
|
Hydraulic system |
Main pump/Pilot pump |
/ |
2×Piston pump |
|
Appearance size |
A Overall length |
mm |
9597 |
|
B Overall width |
mm |
2552 |
|
|
C Overall height |
mm |
3590 |
|
|
D Counterweight clearance |
mm |
1250 |
|
|
E Min. ground clearance |
mm |
340 |
|
|
F tail turning radius |
mm |
2820 |
|
|
G Wheel base |
mm |
2850 |
|
|
H Tread width |
mm |
1890 |
|
|
I Width of chassis |
mm |
2495 |
|
|
J Distance from front bridge to rotary center |
mm |
1550 |
|
|
K Hood height |
mm |
2542 |
|
|
L Max. digging depth of dozer |
mm |
145 |
|
|
Dozer(width/height) |
mm |
2495/566 |
|
|
Working scope |
A Max. digging radius |
mm |
9840 |
|
B Max. digging distance |
mm |
9638 |
|
|
C Max. digging height |
mm |
9000 |
|
|
D Max. dumping height |
mm |
7000 |
|
|
E Max. digging depth |
mm |
6460 |
|
|
F Maximum depth cut for 2240mm(8 ft) level bottom |
mm |
6285 |
|
|
G Max. vertical wall digging depth |
mm |
5810 |
|
|
H Max. lifting height of dozer |
mm |
497 |
|
|
Standard |
|
|
Single boom |
