XCMG Manufacturer 700 Meter Deep Water Well Drill Rig Machine XSL7/350 Price
Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):6400x2250x2860mm
- Weight:14t
- Usage:Water Well
- Model Number:XSL7/350
- Brand Name:XCMG
- Place of Origin:China
- Power Type:Diesel
- Type:Deep (Water) Well Drilling Rig
Specifications
- Weight:14000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

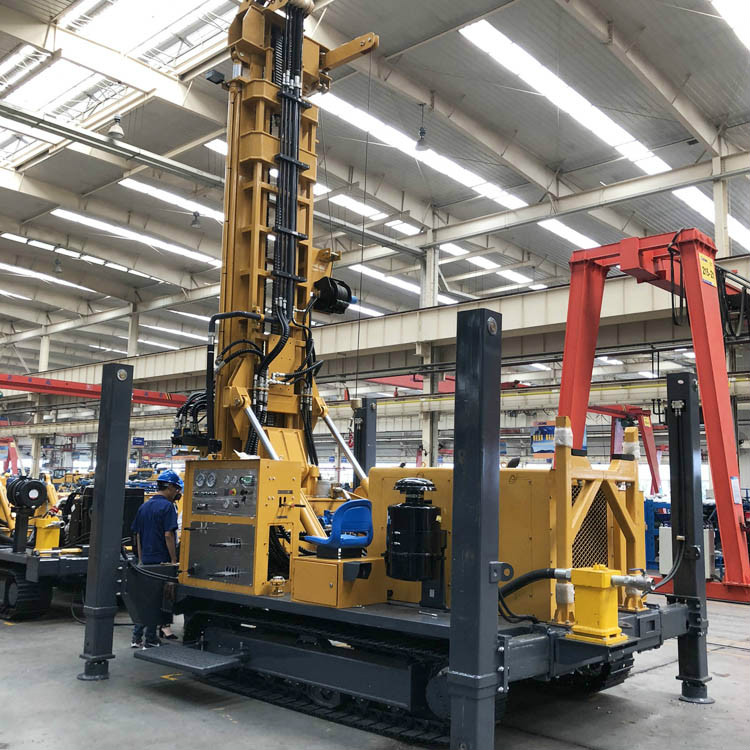

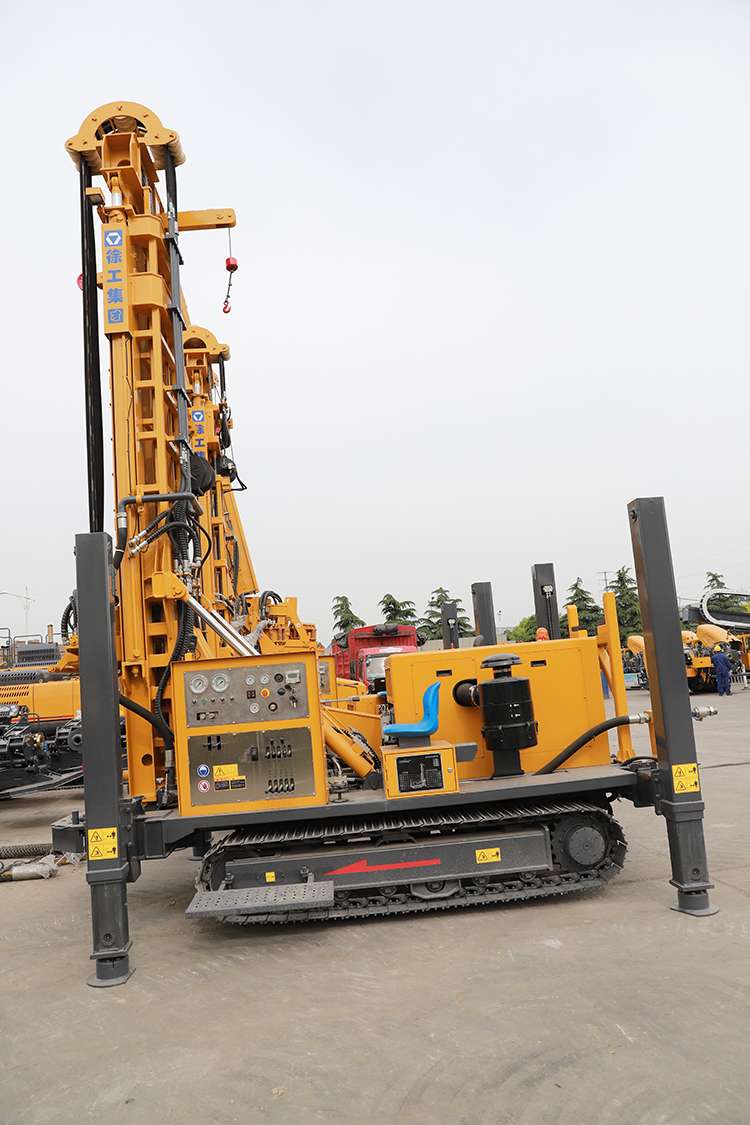

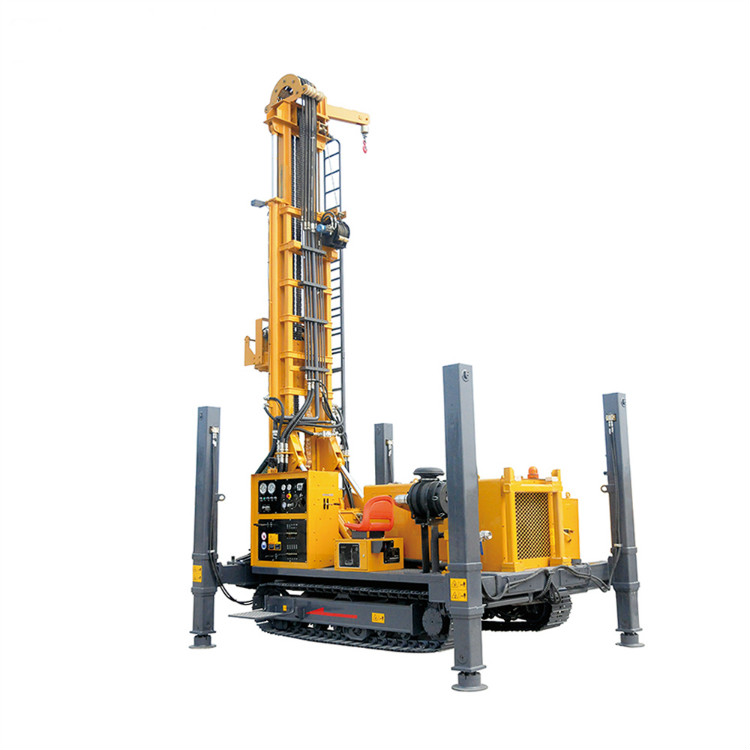

XCMG Manufacturer 700 Meter Deep Water Well Drill Rig Machine XSL7/350.

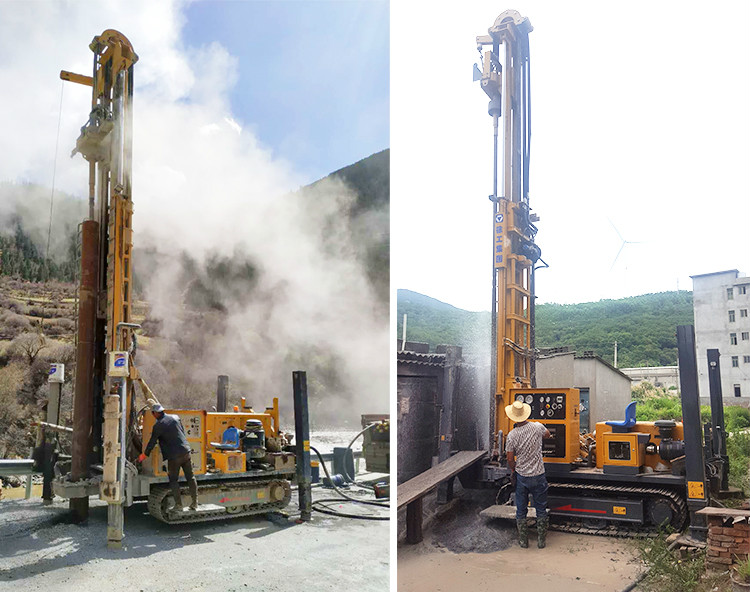

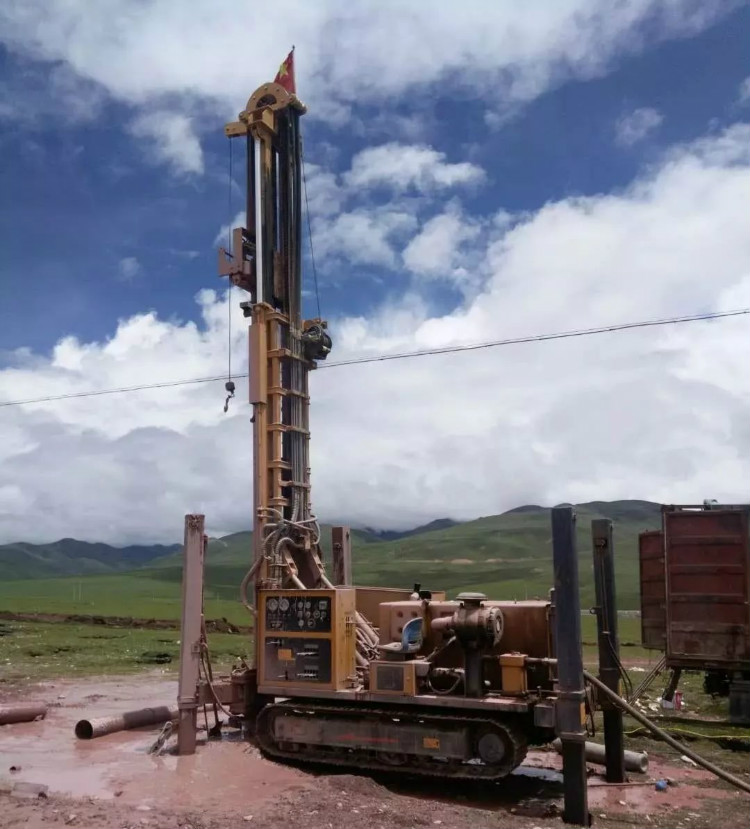

XCMG XSL series deep(water) well drilling rig machine uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency. Reasonable overall layout uses the tractor-mounted or all terrain chassis for transportation with good maneuverability. Very flexible in difficult roads, it can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc., and can also be used for coal-mine gas exploitation or salvage work.
The top-mounted driving head principal shaft has a great drift diameter, which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands of well-drilling in different terrain strata.
Performance Characteristics:
* Mature and reliable hydraulic top drive power head with large bearing capacity and good sealing effect.
* The gap adjustable telescopic drill collar can meet the requirements of long casing construction and has high work efficiency.
* Unique hydraulic matching technology for high system efficiency.
* Integrated visualization pressurize and pressurize decompression feed system for fine adjustment of drilling pressure according to drilling depth.
* Four hydraulic high supporting legs are provided to achieve rapid leveling of the rig without lifting.
* The swing-type centering device provides a wide working space when working.
Parameter | Unit | XSL7/350 | |
Drilling capacity | Drilling depth | m | 700(dia.102) |
Max. diameter of working floor | mm | dia.500 | |
Feeding system | Max. lifting capacity | KN | 350 |
Max. feeding capacity | KN | 150 | |
Max. lifting speed | m/min | 32 | |
Max. feeding speed | m/min | 60 | |
Stroke | mm | 7000 | |
Top drive | Max. torque | N.m | 12200/6100 |
Max. speed | r/min | 180/90 | |
I.D | mm | dia.55 | |
Floating distance | mm | / | |
Max. tilting angel | ° | / | |
Deck engine | Type | / | CUMMINS QSB5.9-C210 |
Rated power | KW | 154 | |
Main winch | Hoisting capacity | KN | 30(Optional） |
Tool winch | Hoisting capacity | KN | 15 |
Breakout device | Max. breakout torque | N.m | 36000 |
Vise clamping range | mm | Customized | |
Mud pump | Max. flow | L/min | / |
Max. pressure | MPa | / | |
Foam pump | Max. flow | L/min | 35 (Optional) |
Max. pressure | Mpa | 4 (Optional) | |
Mud pipe | I.D | mm | Dia.55 |
Max. pressure | Mpa | 8 | |
Chassis | Drive mode | / | Crawler base |
Rated power | kw | / | |
Highest speed | km/h | 3 | |
Max. climbing gradient | % | 39 | |
Working dimension | mm | 5150x3250x10500 | |
Transportation dimension | mm | 6400x2250x2860 | |
Weight | t | 14 | |
