XCMG Manufacturer XC6-3007K 3 ton 7m Small Telehandler for sale



Summary
- Overall Dimensions:4995x2250x2470mm
- Fork Length:1200mm
- Max Lifting Height:6950mm
- Rated Loading Capacity:3000kg
- Power Source: Diesel Engine
- Model Number:XC6-3007K
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:7850.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Manufacturer XC6-3007K 3 ton 7m Small Telehandler.
XCMG Telehandler XC6-3007K is the latest XCMG telehandler which features the highest operation simplicity, safety and efficiency.
XCMG Telehandler Advantages and Highlights:
*The intelligent independent cooling system features high energy-saving and efficiency.
* With compact short wheelbase and lateral engine arrangement, this machine features high handiness and flexibility.
* The four-wheel drive and multiple steering modes (including four-wheel, two-wheel, and crab steering modes) realize super-strong off-road capability and adapt to diversified working conditions.
* The frame leveling function equipped realizes powerful site adaptability and meets the needs of diversified working conditions.

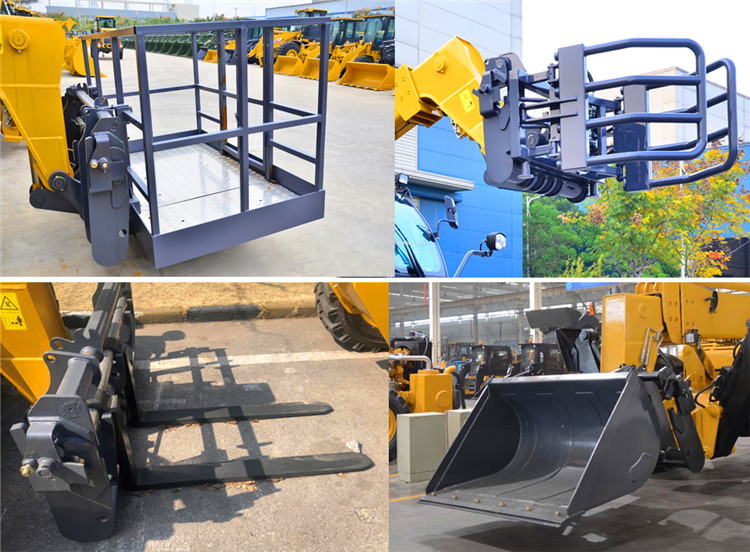

* This machine can be equipped with diversified attachments, including aerial platform, bucket, and bale clamp, to meet the users' individual needs.
Description |
Unit |
Parameter value |
Gross weight |
kg |
7450 |
Engine power |
kW |
90 |
Rated load |
kg |
3000 |
Effective load at maximum forward reach |
kg |
1250 |
Maximum lifting height |
mm |
6950 |
Maximum forward reach |
mm |
3690 |
Center distance of load |
mm |
500 |
Luffing angle |
° |
-3~65 |
Fork angle |
° |
-90~18 |
Maximum traction force |
kN |
≥55 |
Gradeability |
° |
≥25 |
Maximum traveling speed |
km/h |
40* |
Turning radius |
mm |
≤4020 |
Braking distance |
m |
≤8 |
Overall length |
mm |
4820 |
Overall width |
mm |
2355 |
Overall height |
mm |
2460 |
Wheelbase |
mm |
2850 |
Wheel tread |
mm |
1920 |
Fork length |
mm |
1000 |
Bale clamp diameter |
mm |
800-1800 |
