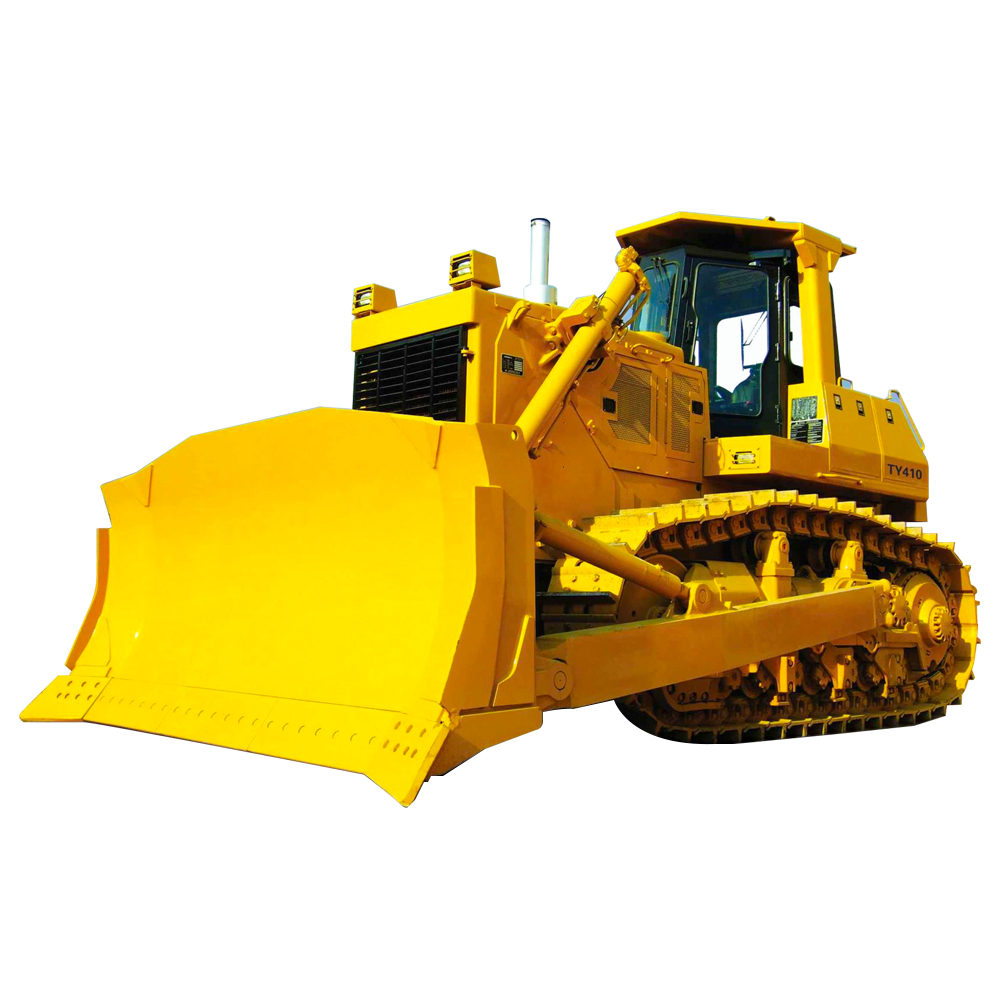

XCMG Official TY410 Bulldozers for sale

  • XCMG Official TY410 Bulldozers for sale

XCMG Official TY410 Bulldozers for sale

XCMG Official TY410 Bulldozers for sale
XCMG Official TY410 Bulldozers for sale

XCMG Official TY410 Bulldozers for sale

View All >
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG Official TY410 Bulldozers for sale
XCMG Official TY410 Bulldozers for sale
Quantity:
- + /EA

Content:

Or choose from these questions:
What is the best price you can offer?
Do you support customization?
What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

Specs & Compare
Details
Specs & Compare
Select 3 models for comparison
Dimension(Long * Breadth * High)
Machine Weight
Model Number
Brand Name
Place of Origin
Certification
Dimension(L*W*H)
Weight
Power(W)
Voltage
Power Type
Type
Engineering & Construction Machinery
--
--
TY410
XCMG
China
CE/ISO9001
7092×4314×3928mm
49500kg
306kW
24V
Electric
Bulldozers
+   Add a Product
+   Add a Product

Summary

  • Model Number:TY410
  • Brand Name:XCMG
  • Place of Origin:China
  • Certification:CE/ISO9001
  • Dimension(L*W*H):7092×4314×3928mm
  • Weight:49500kg
  • Power(W):306kW
  • Voltage:24V
  • Power Type:Electric
  • Type:Bulldozers

Specifications

  • Weight:49500.000kg
  • Condition:New
  • Moving Type:Crawler
  • Blade type:Semi-U blade
  • Width * Height:4314mm×1841mm
  • Max.lift above ground:1620mm
  • Max.drop below ground:749mm
  • Pitch adjustment:52°
  • Max.Tiit:1000mm
  • Blacle capacity:12.8m³
  • Max. working pressure of hydraulic system:20Mpa
  • Rated speed:2000r/min
  • Min fuel consumption ratio:217g/kw·h
  • Track width:610mm

Packaging & Shipping

  • Delivery Lead Time:7 days for ready goods
  • Minimum Order:1 Piece
  • Supply Ability:10,000 Set/ Sets per Month
  • Total Quantity In Stock:Over 5000
  • Delivery Port:Any Port In China


XCMG Official TY410 Bulldozers for sale


XCMG Official TY410 Bulldozers for sale



XCMG Official TY410 Bulldozers for sale



XCMG Official TY410 Bulldozers for sale


XCMG Official TY410 Bulldozers for sale


XCMG Official TY410 Bulldozers for sale


XCMG Official TY410 Bulldozers for sale



WORK EQUIPMENT

Blade type

Semi-U blade

Width x Height (mm)

4314x1841

Max.lift above ground (mm)

1620

Max.drop below ground (mm)

749

Pitch adjustment (° )

52

Max. Tilt (mm)

1000

Blade capacity(m3)

12.8

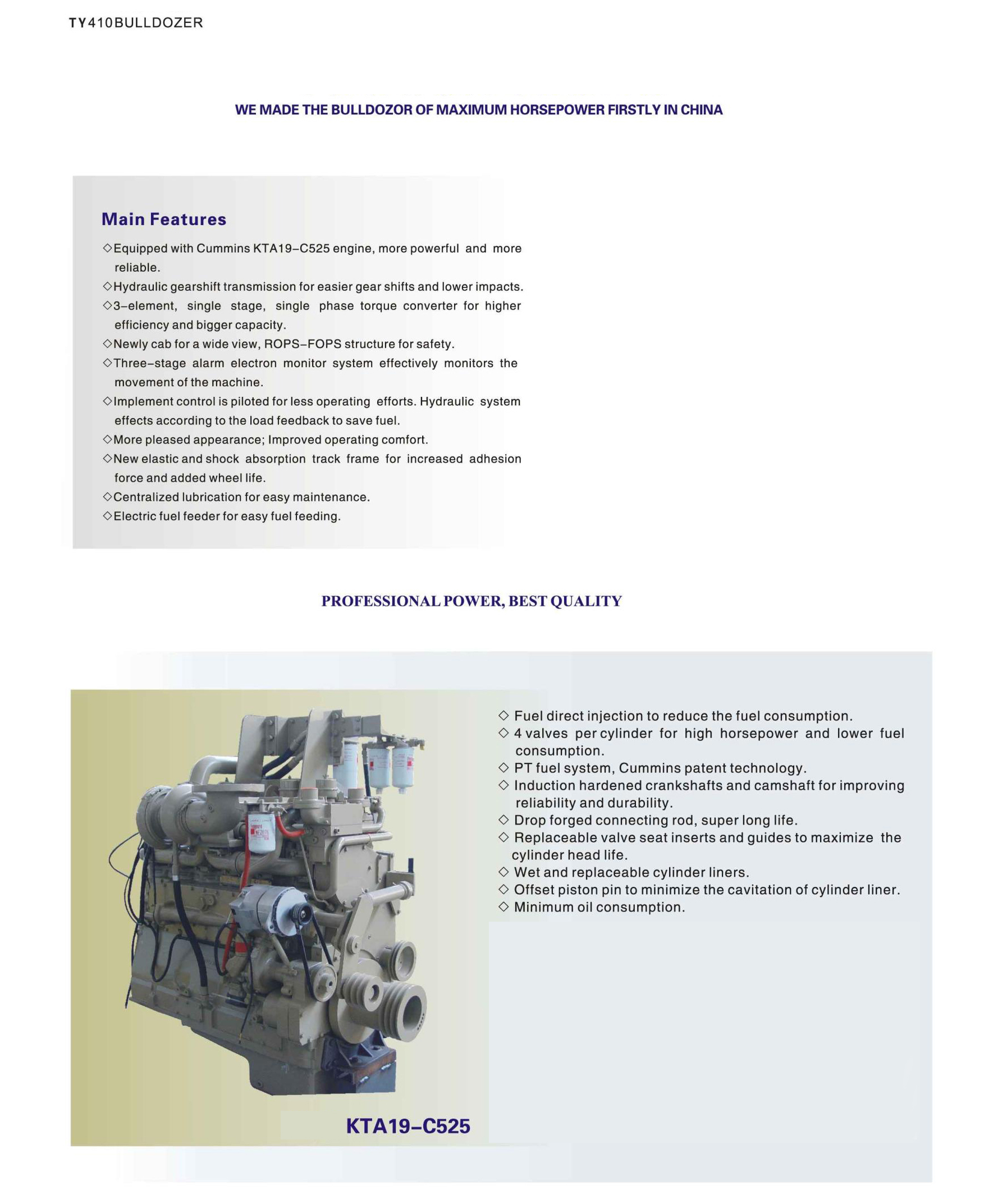

ENGINE

Model

KTA19-C525 Cummins KTA19-C525

Type

Turtbocharged Vertical Four-Stroke, PT Pump Injection

Flywheelpower(kW)

306

Rated speedr/min

2000

Number of cylinders-bore x stroke (mm)

6-Φ159x159

Starting method

Electric starting 9kW/24V

Battery

24V(12Vx2)

Air cleaner

Dry horizontal type with precleaner

Min fuel consumption ratio(min)

217

TRANSMISSION

Torque converter

3-elementsingle-stage, single-phase

Gearbox

Hand-operated,Hydraulic shift, Planetary gear, muliple-disc clutch,hydraulic-actuated, forced lubrication by gearpump, 3forward and 3 reverse speeds.

Bevel gear

Helical bevel gear, Splash lubricated

Steering clutch

Wet, multiple-disc clutch, spring loaded, Hand-operated with booster and hydraulic-released

steering brake

Wet ,band brake, operatedwith hydraulic booster

Final drive

Spur Gear,One Reduction,Interplanetary Gear, one Reduction,splash Lubricated

TRACK

Type

Lubricated track

Track pitch (mm)

206.35

Track width (mm)

610

Number of track shoes(each side)

40

Length of track on ground (mm)

3425

Track gauge (mm)

2260

TRAVELSPEED(km/h)

1st

2nd

3rd

Forward

3.4

6.7

12.2

Reverse

4.2

8.0

14.8

HYDRAULIC SYSTEM OF WORK EQUIPMENT

Working pressure (Mpa)

20

Rated flow (L/min) (1700r/min)

264

Pump

CBZb4160T CBZb4160T gear pump

Control valve

Hydraulic-operated plungre, loadresponse, pilot control

Cylinder, Bore x Rod x Stroke (mm)

Φ140xΦ90x1440

UNDER CARRIAGE

Sprocket

Segmented

No. of carrier roller (each side)

2

No. of track rollers (each side)

7(4 Single, 3 double)

Track tension

Hydraulic-adjusted

Floating seals are used in all sprockets, track rollers, carrier rollers and front idlers



WORK EQUIPMENT

Blade type

Semi-U blade

Width x Height (mm)

4314x1841

Max.lift above ground (mm)

1620

Max.drop below ground (mm)

749

Pitch adjustment (° )

52

Max. Tilt (mm)

1000

Blade capacity(m3)

14.6

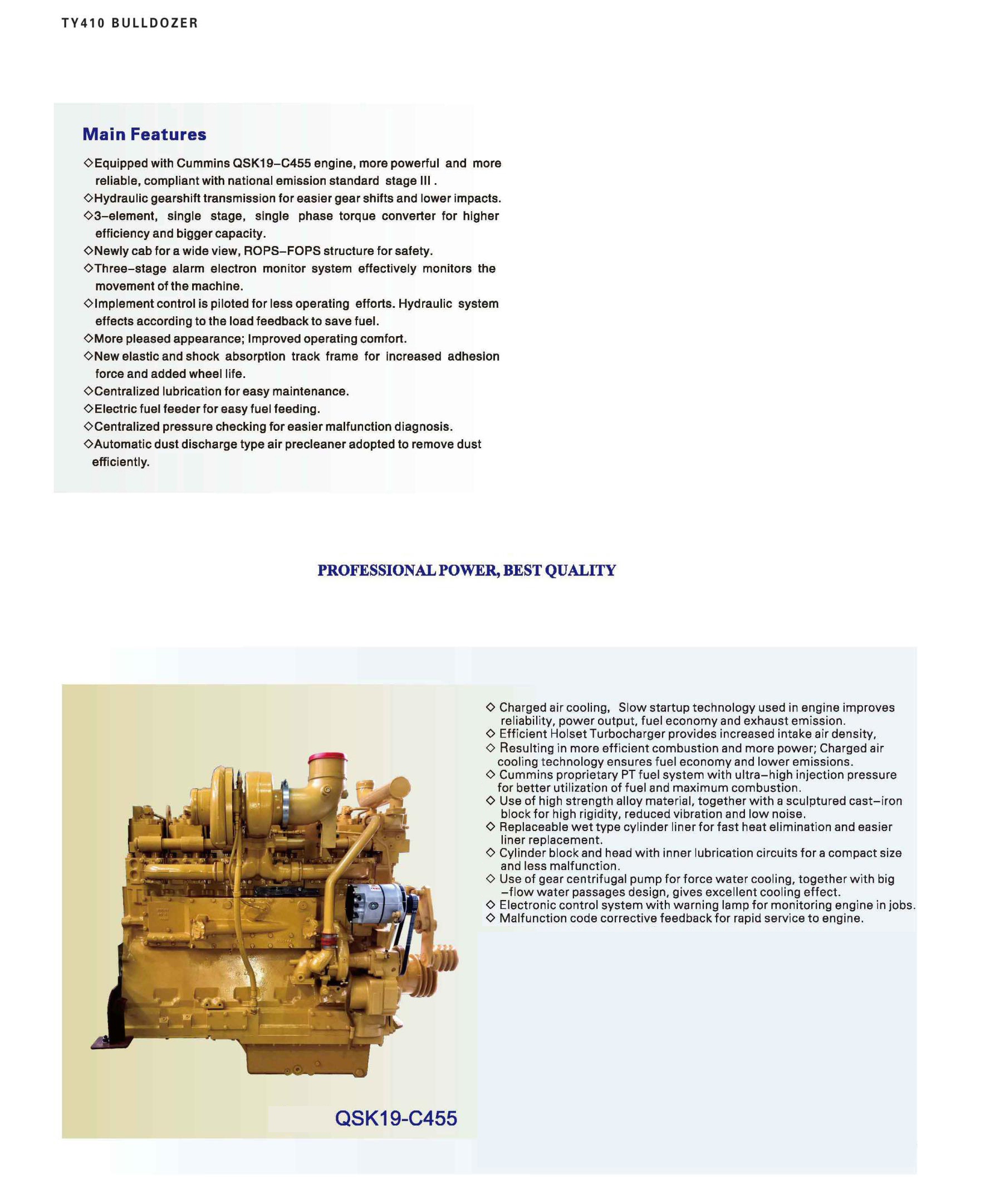

ENGINE

Model

QSK19-C455 Cummins

Type

4-cycle, straight vertical, 6-cylinder, electronic injection, turbocharged, charged air cooled

Flywheel power(kW)

340

Rated speedr/min

2000

Number of cylinders-bore x stroke (mm)

6-Φ159x159

Starting method

Electric starting 8.25kW/24V

Battery

24V(12Vx2)

Air cleaner

Dry horizontal type with precleaner

Min fuel consumption ratio(min)

227

TRANSMISSION

Torque converter

3-elementsingle-stage, single-phase

Gearbox

Hand-operated,Hydraulic shift, Planetary gear, muliple-disc clutch,hydraulic-actuated, forced lubrication by gearpump, 3forward and 3 reverse speeds.

Bevel gear

Helical bevel gear, Splash lubricated

Steering clutch

Wet, multiple-disc clutch, spring loaded, Hand-operated with booster and hydraulic-released

steering brake

Wet ,band brake, operatedwith hydraulic booster

Final drive

Spur Gear,One Reduction,Interplanetary Gear, one Reduction,splash Lubricated

TRACK

Type

Lubricated track

Track pitch (mm)

260.35

Track width (mm)

610

Number of track shoes(each side)

40

Length of track on ground (mm)

3425

Track gauge (mm)

2260

TRAVELSPEED(km/h)

1st

2nd

3rd

Forward

3.4

6.7

12.2

Reverse

4.2

8.0

14.8

HYDRAULIC SYSTEM OF WORK EQUIPMENT

Working pressure (Mpa)

20

Rated flow (L/min) (1700r/min)

264

Pump

CBY4160- 145L gear pump

Control valve

Hydraulic-operated plungre, load response, pilot control

Cylinder, Bore x Rod x Stroke (mm)

Φ140xΦ90x1440

UNDER CARRIAGE

Sprocket

Segmented

No. of carrier roller (each side)

2

No. of track rollers (each side)

7(4 Single, 3 double)

Track tension

Hydraulic-adjusted

Floating seals are used in all sprockets, track rollers, carrier rollers and front idlers
