FOB Price: $144958.00-$144958.00
View All >
After-sales Service: Engineers available to service machinery overseas
Min Order Quantity: 1 Unit
Delivery Time:
In Stock (Within 7 days)
Production (Within15 to 20 days)
Customization (negociated delivery time)
After-sales Service:
1. It is recommended that you keep in touch with the seller after purchasing offline...
About after-sales service:
1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:
1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
XCMG Official TY320 Bulldozers for sale
XCMG Official TY320 Bulldozers for sale
Quantity:
- + /EA

Content:

Or choose from these questions:
What is the best price you can offer?
Do you support customization?
What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

Specs & Compare
Details
Specs & Compare
Select 3 models for comparison
Dimension(Long * Breadth * High)
Machine Weight
Model Number
Brand Name
Place of Origin
Certification
Dimension(L*W*H)
Weight
Power(W)
Voltage
Power Type
Type
Engineering & Construction Machinery
--
--
TY320
XCMG
China
CE/ISO9001
6580×4130×3696mm
35900kg
239kW
24V
Electric
Bulldozers
+   Add a Product
+   Add a Product

Summary

  • Model Number:TY320
  • Brand Name:XCMG
  • Place of Origin:China
  • Certification:CE/ISO9001
  • Dimension(L*W*H):6580×4130×3696mm
  • Weight:35900kg
  • Power(W):239kW
  • Voltage:24V
  • Power Type:Electric
  • Type:Bulldozers

Specifications

  • Weight:35900.000kg
  • Condition:New
  • Moving Type:Crawler
  • Blade type:Semi-U blade
  • Width * Height:4130mm×1590mm
  • Max.lift above ground:1560mm
  • Max.drop below ground:560mm
  • Pitch adjustment:55°
  • Max.Tiit:1000mm
  • Blacle capacity:9.2m³
  • Max. working pressure of hydraulic system:13.7Mpa
  • Rated speed:2000r/min
  • Min fuel consumption ratio:207g/kw·h
  • Track width:560mm

Packaging & Shipping

  • Delivery Lead Time:7 days for ready goods
  • Minimum Order:1 Piece
  • Supply Ability:10,000 Set/ Sets per Month
  • Total Quantity In Stock:Over 5000
  • Delivery Port:Any Port In China


XCMG Official TY320 Bulldozers for sale


XCMG Official TY320 Bulldozers for sale



XCMG Official TY320 Bulldozers for sale



XCMG Official TY320 Bulldozers for sale


XCMG Official TY320 Bulldozers for sale


XCMG Official TY320 Bulldozers for sale


XCMG Official TY320 Bulldozers for sale

WORK EQUIPMENT

Blade type

Semi-U blade

Angle

U dozer

Width x Height (mm)

4130x1590

4850x1140

4225x1745

Max.lift above ground (mm)

1560

1560

1560

Max.drop below ground (mm)

560

560

560

Pitch adjustment (° )

55

55

55

Max. Tilt (mm)

1000

1000

1000

Blade capacity(m3)

9.2

6.3

12.3

Ripper

Type

Single Tooth

Triple Teeth

Max. dig below ground(mm)

1250

842

Max. lift above ground (mm)

955

883

Weight(kg)

3937

5142

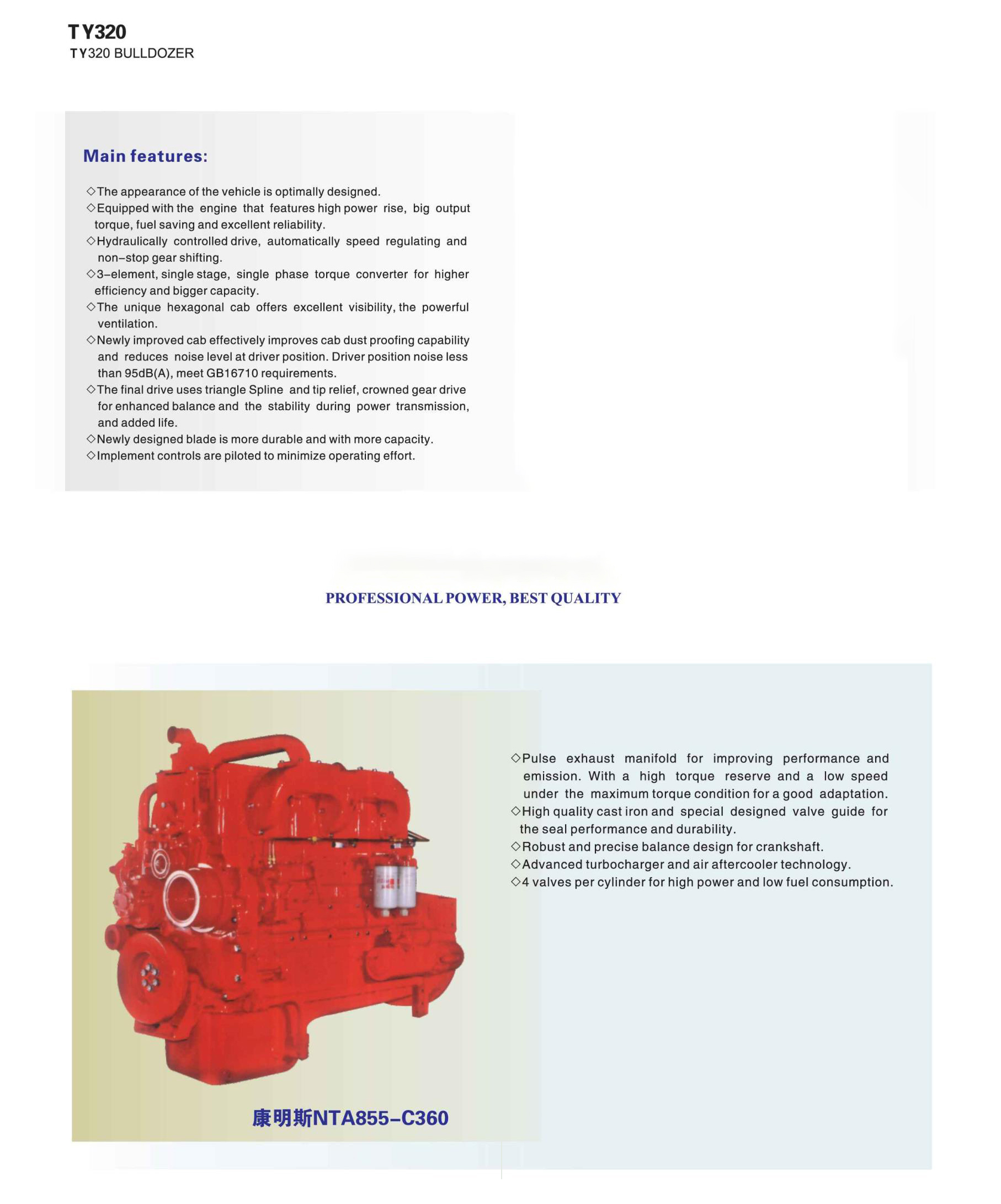

ENGINE

Model

NTA855-C360 Cummins NTA855- -C360

Type

Turbocharged, aftercooled, Four- Stroke

Flywheel power(kW)

239

Rated powerr/min

345HP(257kW)

Rated speedr/min

2000

Number of cylinders-bore x stroke (mm)

6-Φ139.7x152.4

Starting method

Electric starting motor 24V,11kW

Battery

24V(12Vx2)

Air cleaner

Dry horizontal type with precleaner

Min fuel consumption ratio(min)

207

TRANSMISSION

Torque converter

3-elementsingle-stage, single-phase

Gearbox

Planetary gear, multiple-disc clutch, hydraulic actuated,

forced lubrication by gear pump, 3forward and 3 reversespeeds

Bevel gear

Helical bevel gear, Splash lubricated

Steering clutch

Wet, multiple-disc clutch, spring loaded, Hand-operated with booster and hydraulic-released

steering brake

Wet ,band brake, operatedwith hydraulic booster

Final drive

Spur Gear,One Reduction,Interplanetary Gear, one Reduction,splash Lubricated

Type

Sealed single grouser

Track pitch (mm)

228.6

Track width (mm)

560

Number of track shoes(each side)

41

Length of track on ground (mm)

3150

Track gauge (mm)

2140

TRACK

TRAVELSPEED(km/h)

1st

2nd

3rd

Forward

3.6

6.6

11.5

Reverse

4.4

7.8

13.5

HYDRAULIC SYSTEM OF WORK EQUIPMENT

Working pressure (Mpa)

13.7

Rated flow (L/min) (2000r/min)

335

Pump

CBZ4200 gear pump

Control valve

Hand-operated plunger servo controlling

Cylinder, Bore x Rod x Stroke (mm)

Φ140xΦ75x1340

UNDER CARRIAGE

Sprocket

Segmented

No. of carrier roller (each side)

2

No. of track rollers (each side)

7(5 Single, 2double)

Track tension

Hydraulic-adjusted

Floating seals are used in all sprockets, track rollers, carrier rollers and front idlers
