XCMG New 160HP Mini Crawler Track Dozer Tractor TY160 Made in China
Summary
- Dimension(Long * Breadth * High):5128*3416*3120mm
- Machine Weight:18200kg
- Model Number:TY160
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:18200.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

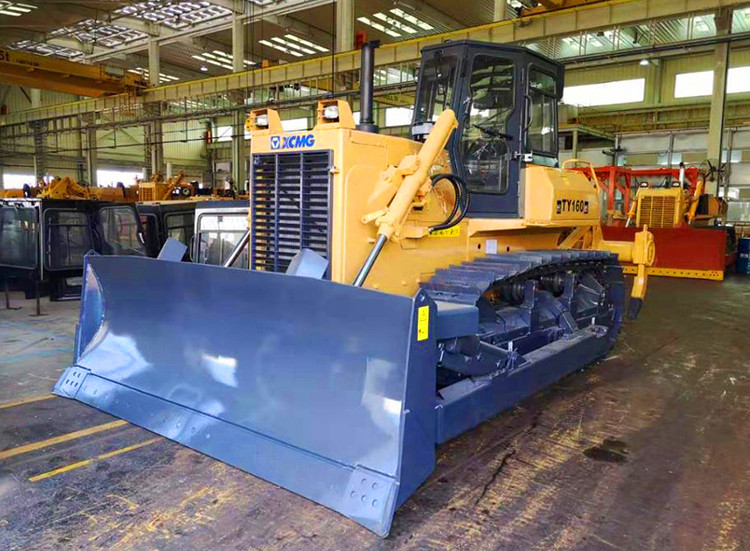

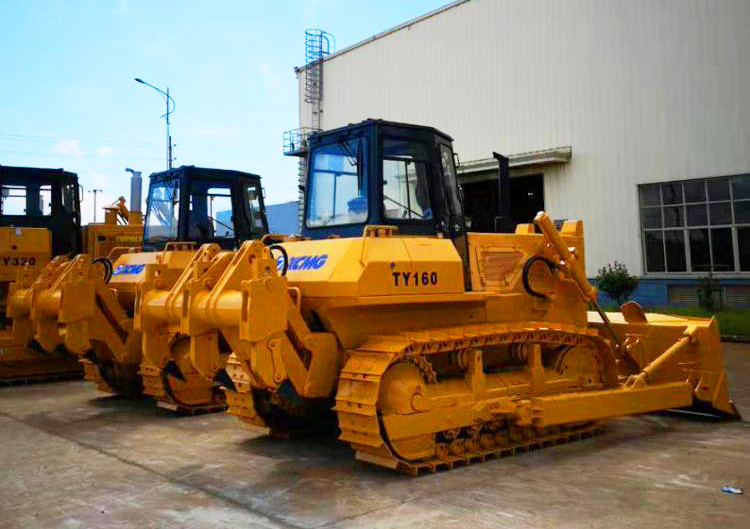

XCMG New 160HP Mini Crawler Track Dozer Tractor TY160.
The TY160 crawler track bulldozer which has excellent power, reliability and a long service life. Through the introduction of Japanese D65A-8 bulldozer technology, at the same time absorb the advantages of D60A-8, The TY160 crawler type bulldozer has been developed by the domestic design.
Technical Characteristics:
1. High engine power reserve, strong torque output, low fuel consumption, reliable controls.
2. Hydraulically powered, automatic speed change, shift the gears without stop the vehicle.
3. 3 elements, single stage and single phase torque convertor features high efficiency and capacity.
4. The updated hexahedral cab features outstanding visibility and good tightness.
5. New blade is more durable and capacious.
6. Alarming & monitoring system is reliable.
7. Reliable manual- operated spool valve and external mounted valve for easy maintenance.
|
Name |
Remarks |
TY160 |
|
Overall size of the machine（mm） |
Straight shovel, traction rod |
5128×3416×3120 |
|
Straight shovel, three toothed soil loosen |
6215×3416×3120 |
|
|
The use quality of the whole machine（kg） |
Straight shovel, traction rod |
17100 |
|
Straight shovel, three toothed soil loosen |
18700 |
|
|
Maximum traction power (kN) |
148 |
|
|
Minimum turning radius (mm) |
3100 |
|
|
Maximum climbing performance (°) |
30 |
|
|
Minimum ground clearance (mm) |
No crawler |
400 |
|
Average ground specific pressure (MPa) |
0.065 |
|
|
Forward speed (km/h) |
F1 |
3.1 |
|
F2 |
5.47 |
|
|
F3 |
9.07 |
|
|
Back speed (km/h) |
R1 |
4.03 |
|
R2 |
7.12 |
|
|
R3 |
11.81 |
|
|
Tracked ground length (mm) |
2430 |
|
|
Caterpillar center distance (mm) |
1880 |
|
|
Production efficiency (m3/h) |
30m distance |
350 |
|
Engine |
||
|
Model |
Weichai WD10G178E25 |
|
|
type |
Water cooling,straight line,four stroke,direct injection |
|
|
The number of cylinder - bore * stroke (mm) |
6－126×130 |
|
|
Rated power (kW) |
131 |
|
|
Rated speed (r/min) |
1850 |
|
|
Maximum torque (N.m/r/min) |
830/1000～1200 |
|
|
Fuel consumption rate (g/kW.h) |
≤210 |
|
|
Walking system |
||
|
type |
Swing type and balance beam suspension structure |
|
|
Pitch (mm) |
203.2 |
|
|
Number of wheels of single side belt |
2 |
|
|
Number of single side pulley |
unilateral and 2 bilateral |
6 |
|
Crawler height (mm) |
60 |
|
|
Working device |
||
|
Straight shovel single shovel capacity (M3) |
3.9 |
|
|
The maximum lifting height of the blade (mm) |
1095 |
|
|
The maximum depth of soil cutting blade (mm) |
545 |
|
|
The maximum tilt blade height (mm) |
860 |
|
|
Type of soil looser |
Three teeth |
|
|
Three tooth looser tooth distance (mm) |
950 |
|
|
Three tooth looser |
Soil depth (mm) |
572 |
|
Elevation (mm) |
702 |
|
|
The three tooth scarifier weight (kg) |
1621 |
|
