XCMG 180 ton gantry crane TT180 China hydraulic mobile overhead crane flip gantry crane price
Specifications
- Weight:23500.000kg
- Warranty Period:12 Months
- Condition:New
- Self-weight:23.5t
- Rated lifting capacity:180t
- Power with generator set:50KW
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
180 ton gantry crane TT180 China hydraulic mobile
overhead crane flip gantry crane.

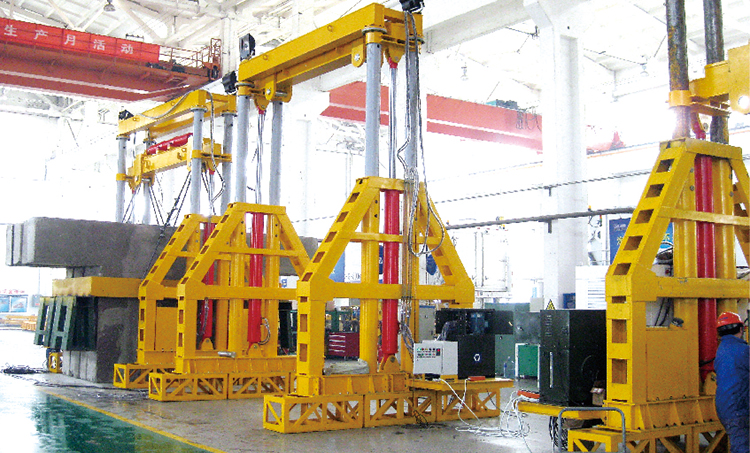

XCMG TT180 overhead gantry crane is applicable for the
inversion of girder segments and rail sections for bridge-erecting machines.
Technical Features:
* It features high structural strength, convenient installation
and transfer, and reliable working and lifting.
* With extensive adaptability, it can realize the
inversion of girder segments under diversified working conditions, including
diversified tunnels, curves, and gradients.
* The multifunctional configuration is available to meet
the customer’s diversified working needs.
|
Item |
Unit |
Parameter |
|
|
Rated lifting capacity |
t |
2*90 |
|
|
Self-weight |
t |
23.5 |
|
|
Maximum outline dimension |
Operating status |
mm |
3650*5500*6300 |
|
Lifting |
Full loading
lifting (Lifted at the same time) |
m/min |
0.28 |
|
Full loading dropped (Lowered at the same time) |
m/min |
0.45 |
|
|
Inner clearance at reloading |
mm |
3600*5350 |
|
|
Beam lateral moving range |
mm |
±150 |
|
|
Power with generator set |
kW |
50 |
|
|
Rated pressure for hydraulic system |
MPa |
25 |
|
