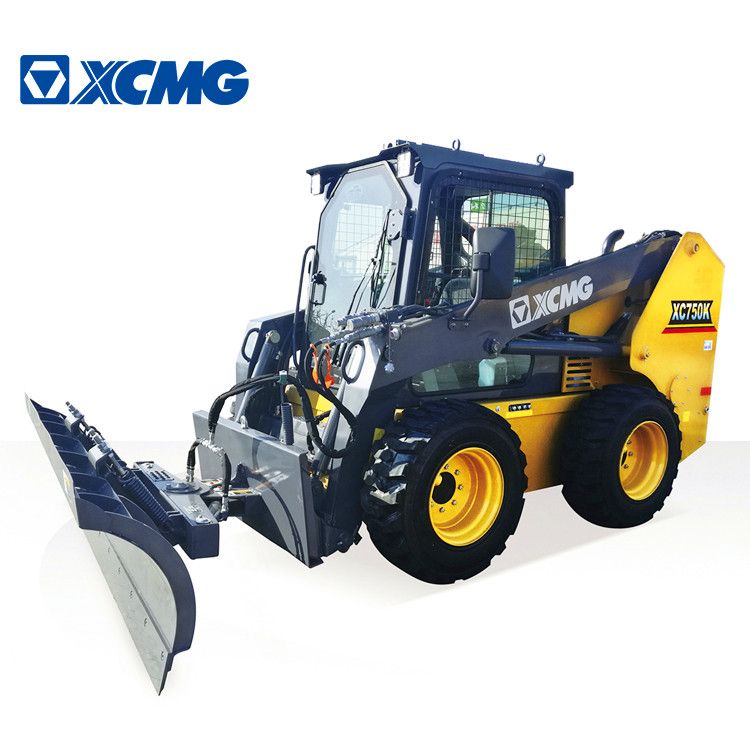

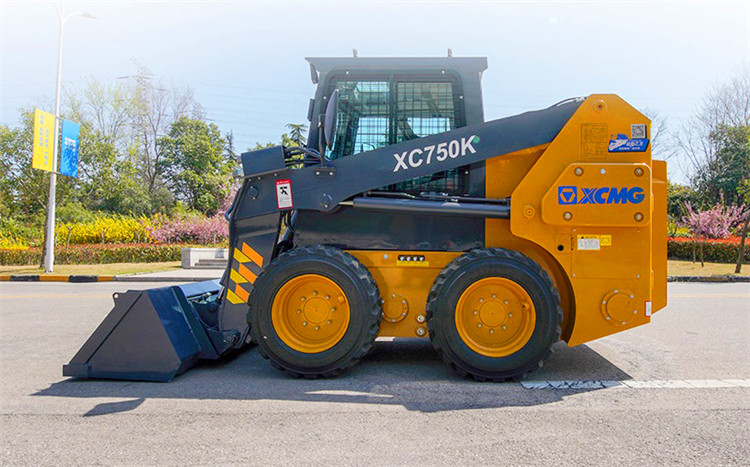

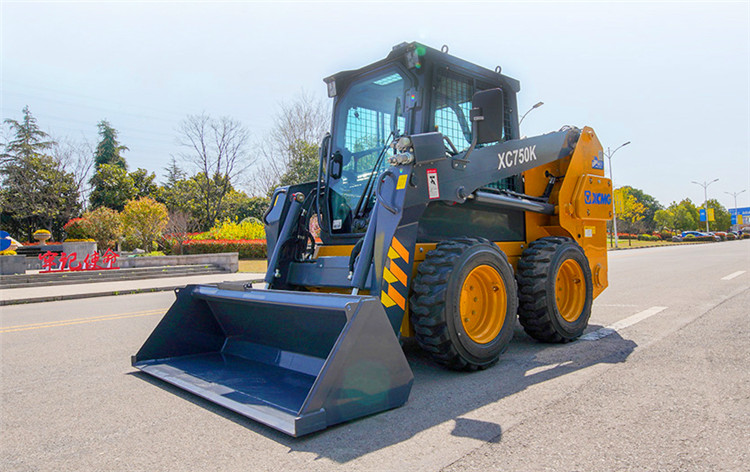

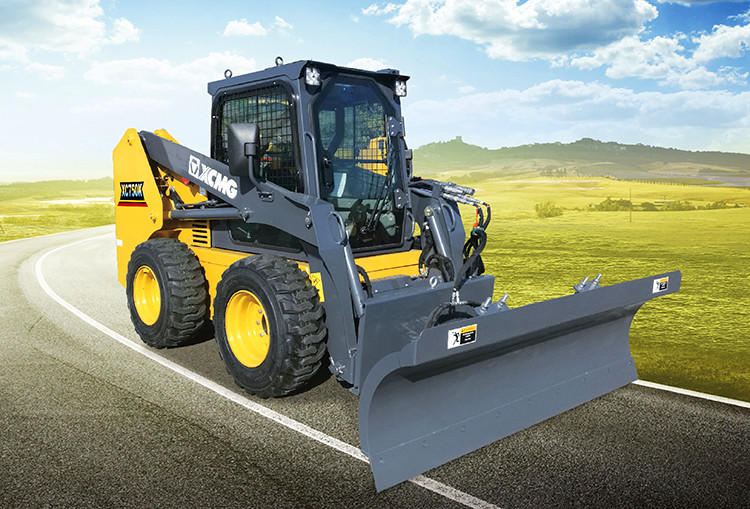

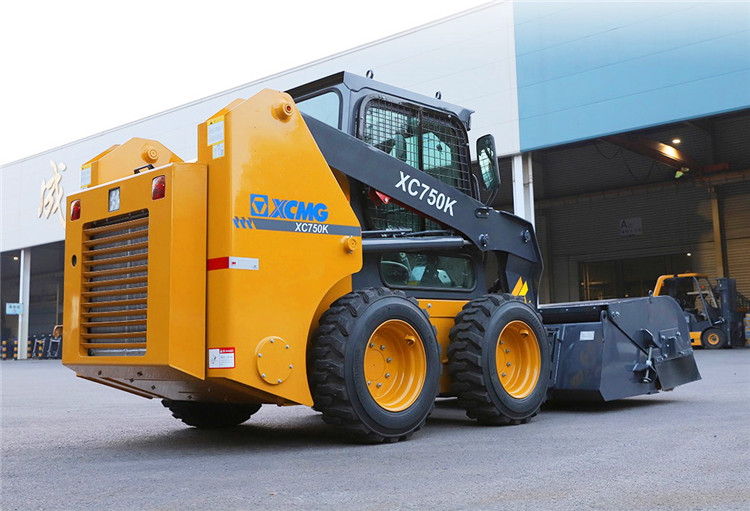

XCMG XC750K 1 ton Mini SkidSteer Tracked Loader With Attachments
Summary
- Rated Load:900 kg
- Dimension(Long*Breadth*High):3750*2000*1950mm
- Type:Skid Steer Loader
- Place of Origin:Jiangsu, China
- Model Number:XC750K
- Brand Name:XCMG
- Certification:CE/ISO9001
Specifications
- Weight:3200.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG XC750K 1 ton Mini SkidSteer Tracked Loader With Attachments.
The XC750K is a new medium-sized skidsteer loader of XCMG. The unit can be equipped with a two-speed walking configuration, a pressurized cab and a fresh air conditioning system. The whole machine adopts a large flow system, which can meet the needs of working conditions such as clearing manure in cattle house, loose sand in bed, stacking pasture, and road cleaning.
1. Strong power and high energy-conservation and efficiency
*The renowned brand engine equipped features strong power, ultra-low emission, and higher fuel efficiency.
*The double speed motor with maximum speed up to 18km/h is installed to achieve high working efficiency. It can complete the site transfer rapidly and efficiently.
*It can respond faster to the needs of emergency working conditions such as rapid snow removing.
*The hydrostatic drive device is applied to realize quick change of appropriate attachments in the operation site.
2. Platform design for high reliability and firmness
*The serialization design is applied for the frame based on the skid- steer tonnage to realize high structural reliability. All critical structural parts are optimized by finite element analysis to realize reasonable stress distribution.
*The imported high-quality hydraulic parts are applied to realize higher reliability.
3. Multiple Applications:

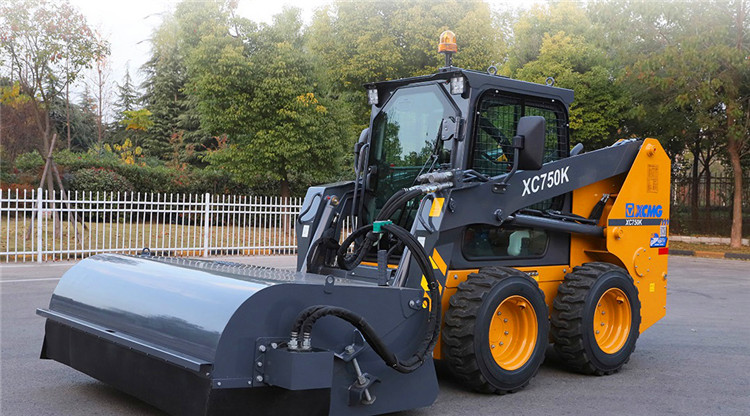

Inclined sweeper/ Snow plough/ Rotary tiller/ Closed sweeper/ Planer/ Manhole cover planer/ Breaking hammer/ Twist drill/ Continuous ditcher.
Description |
Unit |
XC750K |
|
Engine |
Rated power |
HP(Kw)/rpm |
67(50)/2300 |
Emission standard |
Chinese-III |
||
Working hydraulic system |
Standard flow |
L/min |
75.9 |
Optional high flow |
L/min |
119.6 |
|
System pressure |
bar |
210 |
|
Traveling System |
Maximum traveling speed |
Km/h |
12 |
Optional two speed, maximum traveling speed |
Km/h |
18 |
|
Tire specification |
10-16.5 |
||
Control system |
Operating weight |
Kg |
3200 |
Loading performance |
Rated load |
Kg |
900 |
Static tipping load |
Kg |
1800 |
|
Breakout force |
kN |
20 |
|
Overall dimensions |
Cab roof height |
mm |
1950 |
Length with bucket |
mm |
3330 |
|
Dumping angle |
° |
40 |
|
Maximum dumping height |
mm |
2375 |
|
Dumping range |
mm |
575 |
|
Wheelbase |
mm |
1027 |
|
Departure angle |
° |
25 |
|
Ground clearance |
mm |
185 |
|
Wheel tread |
mm |
1380 |
|
Bucket edge width |
mm |
1800 |
|
Bucket capacity (High heap) |
m3 |
0.45 |
