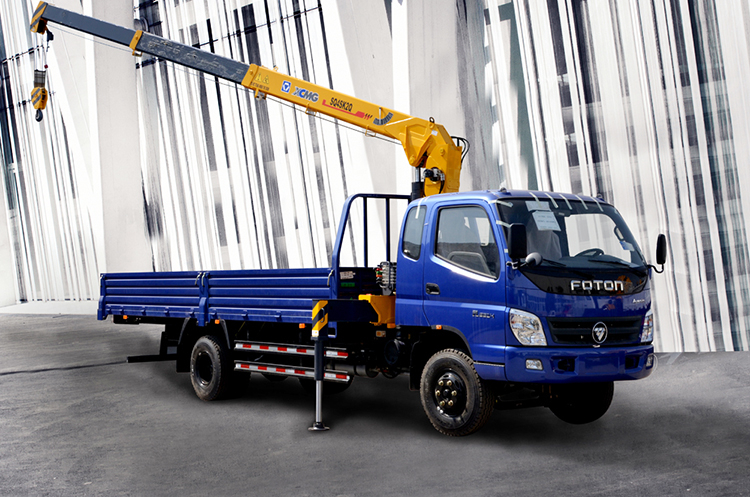

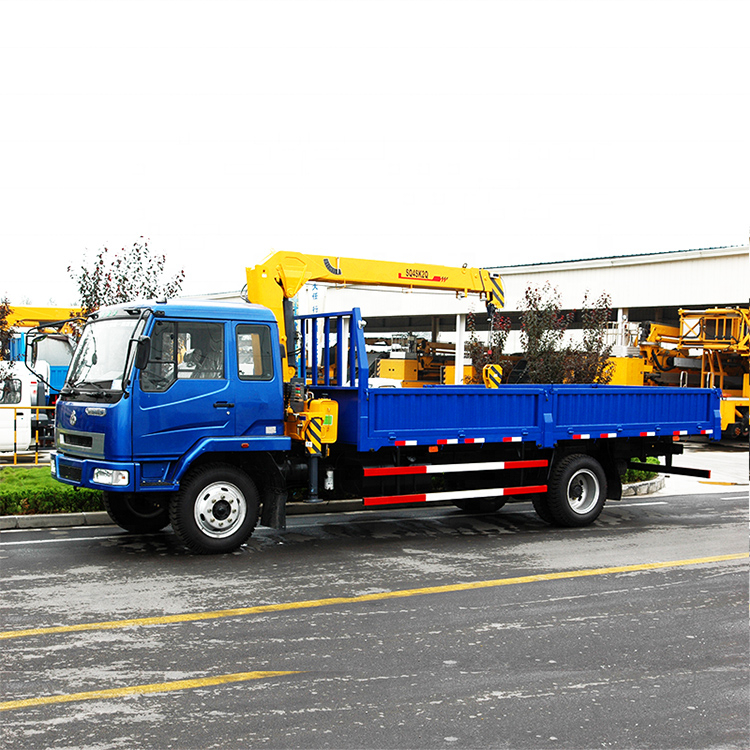

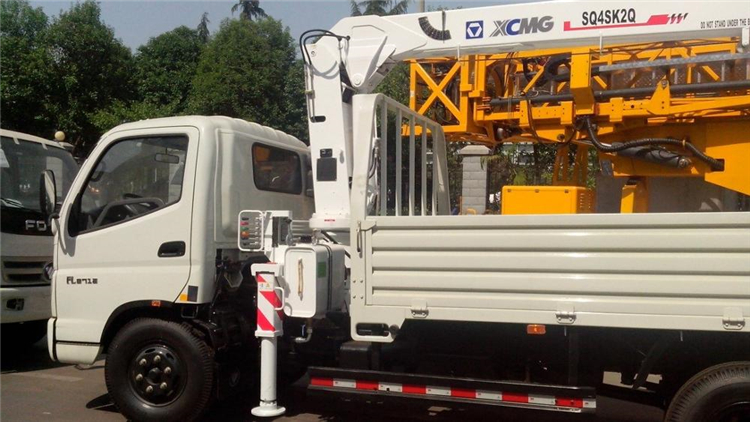

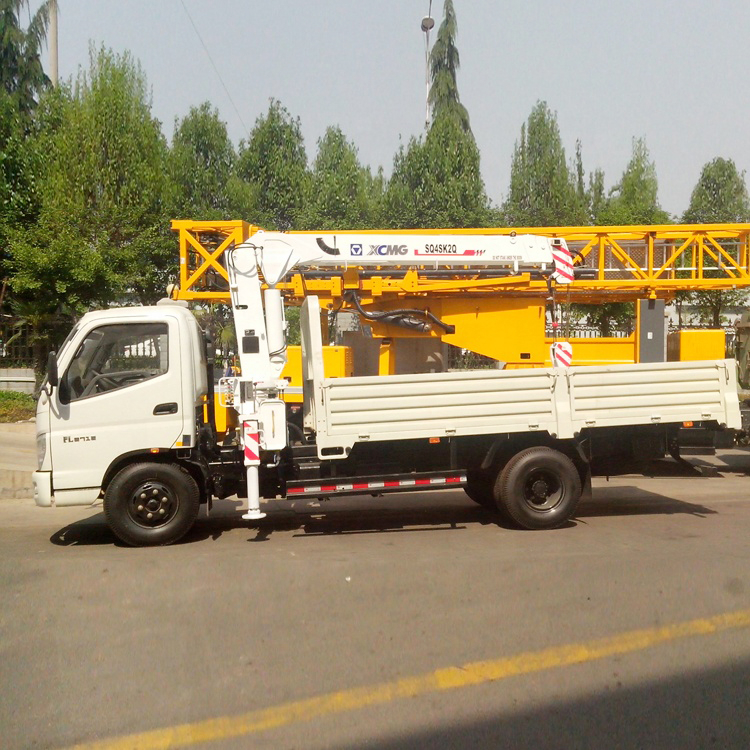

XCMG Official Brand New 4 Ton Small Pickup Truck Mounted Crane Sq4sk2q for Sale
![](/app/topc/statics/images/close.png)
![XCMG Official Brand New 4 Ton Small Pickup Truck Mounted Crane Sq4sk2q for Sale](http://www.machmall.com/images/store/357636/item/SQ4SK2Q-1 (2).jpg)
![](/app/topc/statics/images/close.png)
Summary
- Certification:CE/ISO9001
- Model Number:SQ4SK2Q
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Span:6.9m
- Max. Lifting Height:9.42m
- Rated Lifting Moment:8.4 T.M
- Rated Loading Capacity:4 ton
- Application:Construction
Specifications
- weight:4000.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official Brand New 4
Ton Small Pickup Truck Mounted Crane Sq4sk2q.
Single cylinder synchronization guy cable
technology makes work efficiency higher than before.
Advanced development means make sure that the
design is very reliable.
The more symmetrical center design of
pentagon or hexagon boom make it has bigger anti-bending capacity.
Compact hinge point design takes up smaller
space.
The work is more safety after fitted with
alarm device.
The integer lifting winch improved the work
efficiency greatly and prolonged work life of hydraulic system.
Float three –point bridge structure design
can lower the accessional stress on the chassis when traveling.
It has been fitted own powerful slewing of
working in diversifying conditions.
Anti-slewing impulse equipment makes vehicle
running safety.
ITEM |
UNITS |
SQ4SK2Q |
Max lifting capacity |
KG |
4000 |
Max lifting capacity |
T.M |
8.4 |
Recommend power |
KW |
16 |
Max oil flow |
L/MIN |
25 |
Max pressure |
MPA |
20 |
Oil Tank Capacity |
L |
60 |
Crane weight |
KG |
1271 |
Installation space |
MM |
850 |
Rotation angle |
DEGREE |
360 All Rotation |
Max extension length |
MM |
7930 |
Max lifting height |
MM |
9000 |
Max elevation |
DEGREE |
75 |
uMore truck mounted crane
