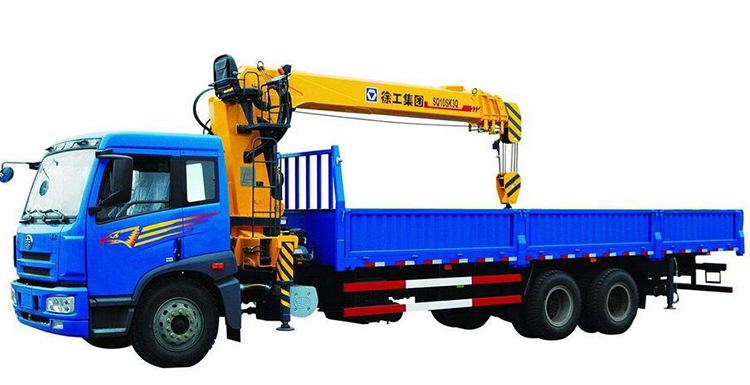

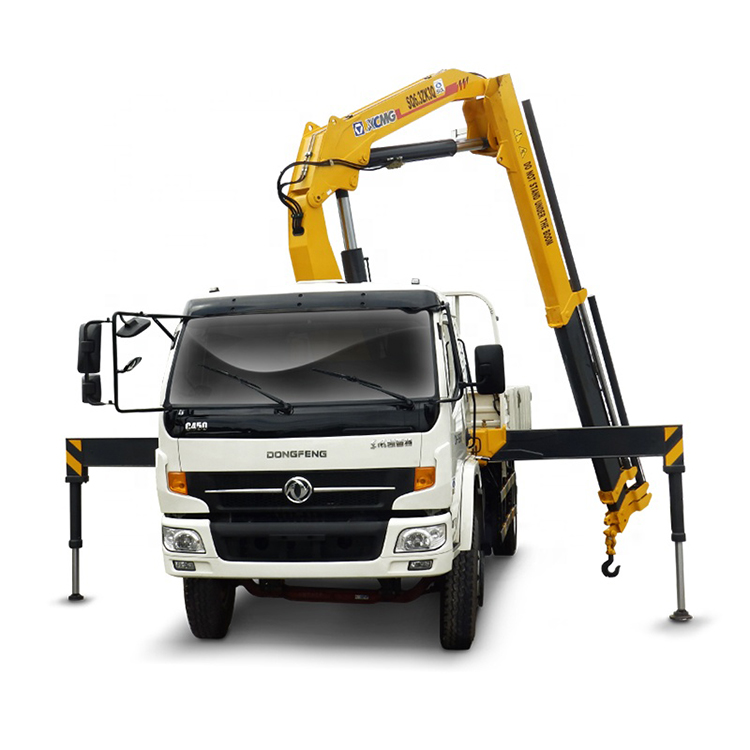

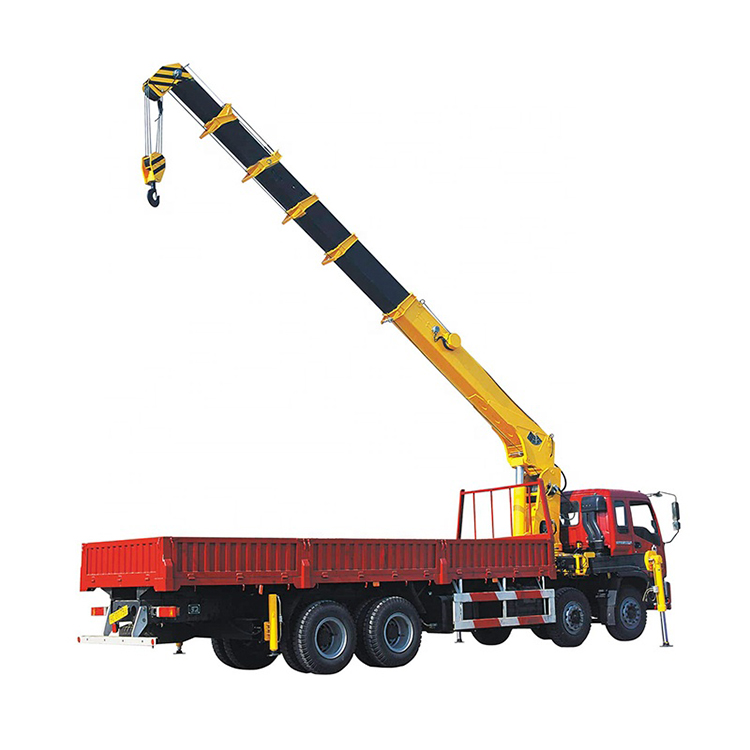

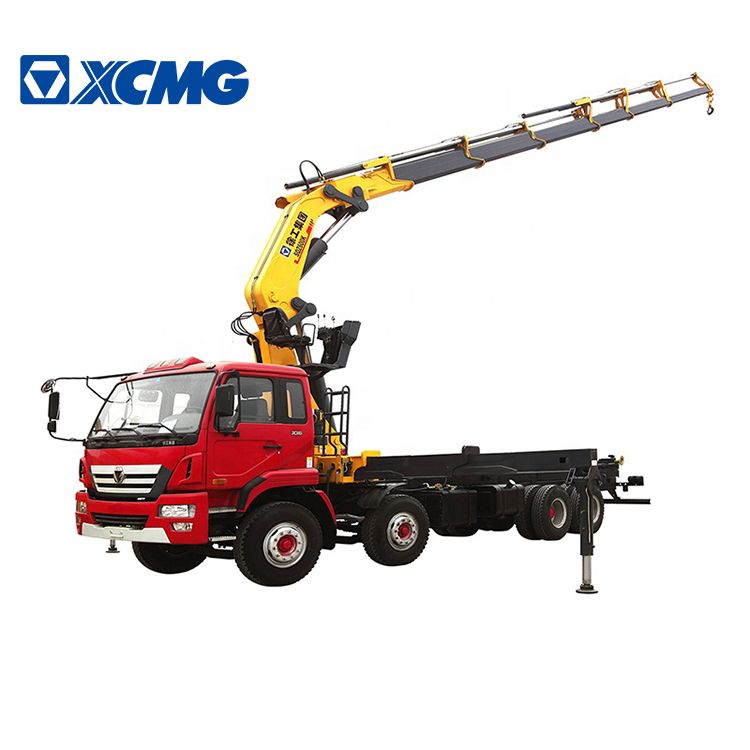

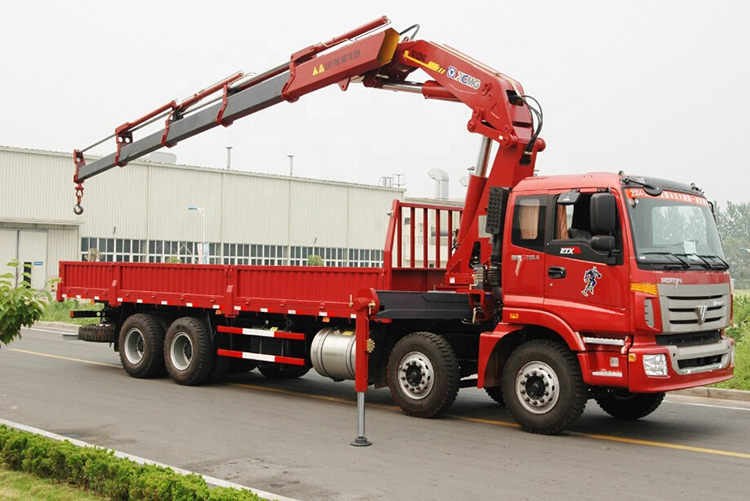

XCMG Official Lorry Crane SQ16ZK4Q 16 ton Knuckle Truck Crane Price For Sale
Summary
- Certification: ISO
- Model Number:SQ16ZK4Q
- Brand Name:XCMG
- Place of Origin:JiangSu,China
- Span:7.6m
- Max. Lifting Height:50m
- Rated Lifting Moment:40 T.M
- Rated Loading Capacity:16t
- Application:construction
Specifications
- Weight:5000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official Lorry Crane SQ16ZK4Q 16 ton Knuckle Truck Crane.
Main parameters:
Max Lifting Moment: 40t.m
Max Lifting Capacity: 16000kg
Optional parts:
* Moment limited valve
*Remote control equipment
*High seat on column
*JIB
Advantages and highlights:
1. Safety
• Have multiple job safety protection measures
• Complies with CE, GOST and other safety requirements
2. Environmental protection
• Optimized structural design for lighter weight
• Optimized hydraulic system with less energy consumption
3. Folding arm type truck crane operating system
On the train and get off the use of a separate operation of the valve, the use of rotary valve to select the oil, on and off interlock, effectively reducing the risk of misuse. In addition to the car to operate the seat arrangement of the turntable side, with the turntable infinite rotation, with better control of the field of vision.
On the train and get off together to use a control valve, the crane on the standing control, simple and convenient operation process, with a better vision, the operation can directly see the situation inside the container.
Parameter Item |
Scale |
Unit |
Max Lifting Capacity |
kg |
16000 |
Max Lifting Moment |
t.m |
40 |
Recommend Power |
kw |
37 |
Max Oil Flow of Hydraulic System |
L/min |
63 |
Max Pressure of Hydraulic System |
Mpa |
31.5 |
Oil Tank Capacity |
L |
250 |
Crance Weight |
kg |
5000 |
Installation Space |
mm |
1500 |
Rotation Angle |
° |
360°All Rotaion |
