XCMG Official Fire Truck 4 ton water tank fire truck SG40F2 new mini fire truck for sale
Summary
- Model Number:SG40F2
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Size:7400*2500*3400mm
- Fuel Type:Diesel
- Emission Standard:EURO 5
- Tank Capacity:7001 - 10000L
- Horsepower:251 - 350hp
- Transmission:Automatic
- Type:Tanker
- Drive Wheel:4X2
- Certification:CE/ISO
Specifications
- Weight:13500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

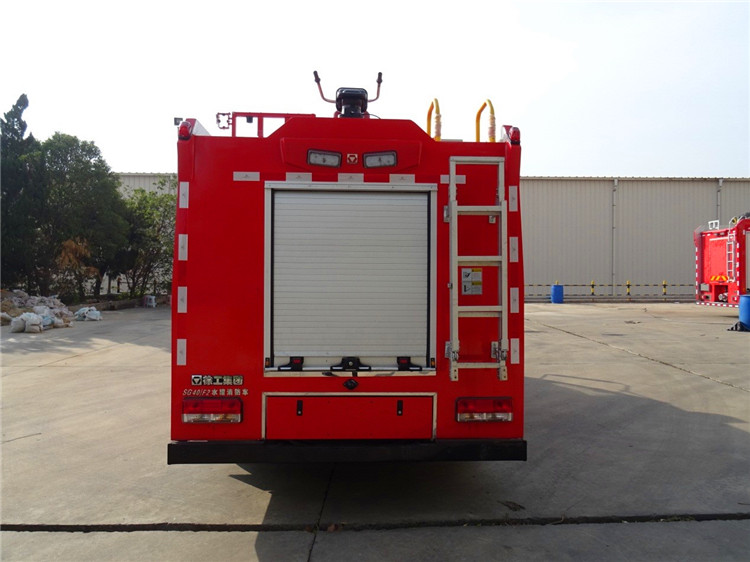

XCMG Official water tank fire truck SG40F2
new mini fire truck.
SG40F2 fire-extinguishing water tanker uses
four open door type 4x2 chassis; fire extinguishing system uses two stage fire
pumps, fire monitor, combined with fire pump to integrate ring-pumping type B
foam mixing system; with the function of water supply, fire fighting in a
vehicle.
Advantage & Highlight:
1.Strong single-vehicle operational capability
The heavy truck T5 chassis with double-row cab has strong power performance,
safe and reliable quality, which can carry 6 persons and is suitable for
marshaling fire fighting.
2. Fire control system is convenient and efficient, and
has high safety
Fire system operation is designed to be humanized that making the operation
convenient and fast.
3. Security protection settings and high intelligence
The vehicle adopts a variety of safety protection devices to ensure that
driving, rescue, and firefighting are safe and reliable. With details
considered, multilayer storage compartment structures use light bars to realize
multi-layer space lighting to meet usage requirements.
|
Overall Dimension: (L×W×H) |
7400×2500×3400mm |
||
|
Full Load |
13500kg |
||
|
Maximum Speed |
≥80km/h |
||
|
Complement |
6 persons |
||
|
Tank Capacity (Water) |
3800L |
||
|
Fire Extinguishing System |
Model |
Huayu CB40·10/6·50-TB |
|
|
Rated Flow of the Pump |
50 L/s |
6 L/s |
|
|
Rated Pressure of the Pump |
1.0MPa |
4.0 MPa |
|
|
Model of the Cannon |
PS30-50 |
||
|
Rated Flow of the Cannon |
40 L/s |
||
|
Rated Pressure of the Cannon |
1.0MPa |
||
|
Range of the Cannon |
≥60m |
||
|
Pitch Angle of the Cannon |
-15°～60° |
||
|
Dimension parameter |
Wheelbase (mm) |
4500 |
|
|
Tread(front/back) (mm) |
1960/1855 |
||
|
Oil tank capacity(L) |
200 |
||
|
Performance parameter |
Maximum speed(km/h) |
90 |
|
|
Minimum diameter of turning circle(m) |
15 |
||
|
Mass parameter |
16000(kg) |
16000 |
|
|
Engine |
Type and category |
Inline, six-cylinder, supercharged and mid-cooling
diesel engine |
|
|
Displacement (ml) |
7790 |
||
|
Fuel type |
Diesel |
||
|
Rated power/speed (kW/r/min) |
176/2400 |
||
|
Maximum torque/speed (N.m/r/min) |
706/1450 |
||
