XCMG Official Fire Truck 25 ton new large capacity water tank fire truck SG250F2 fire fighting truck price for sale
Summary
- Model Number:SG250F2
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Size:11850*2500*3600mm
- Fuel Type:Diesel
- Emission Standard:EURO 5
- Tank Capacity:> 10000L
- Horsepower:351 - 450hp
- Transmission:Manual
- Type:Tanker
- Drive Wheel:8x4
Specifications
- Weight:41700.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

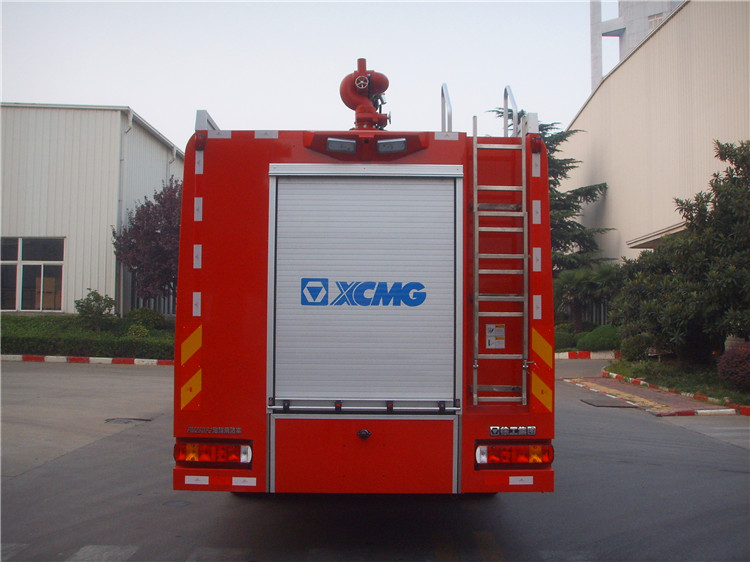

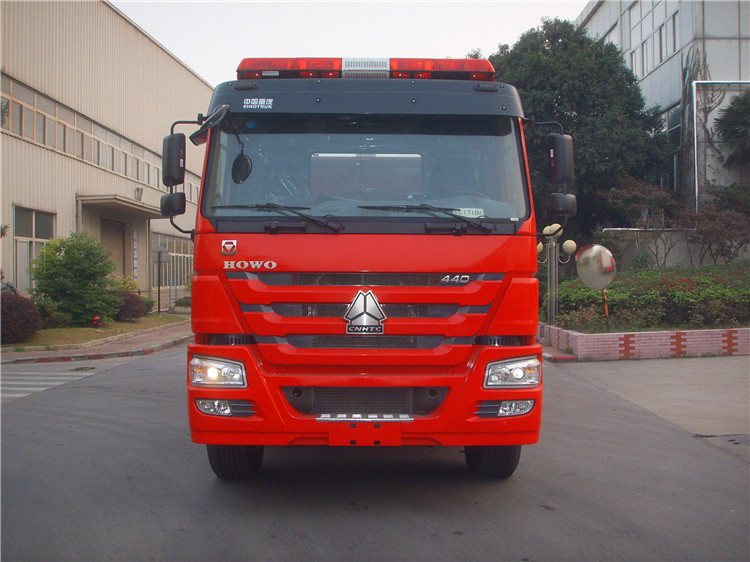

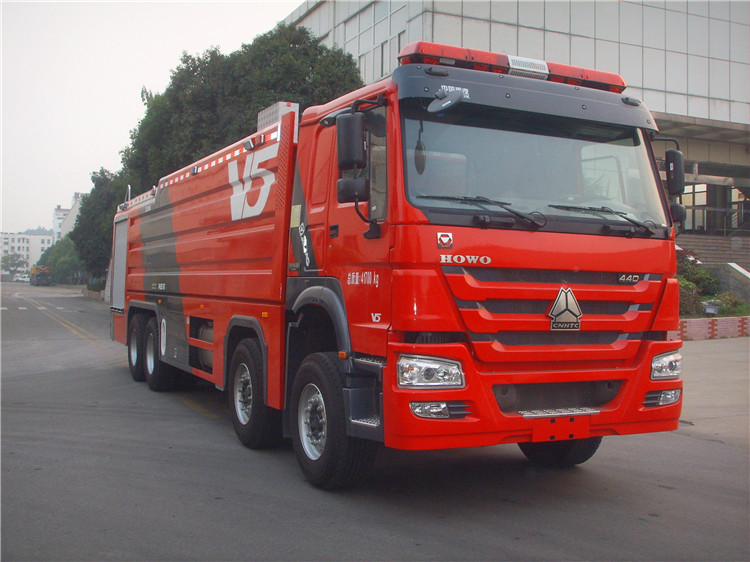

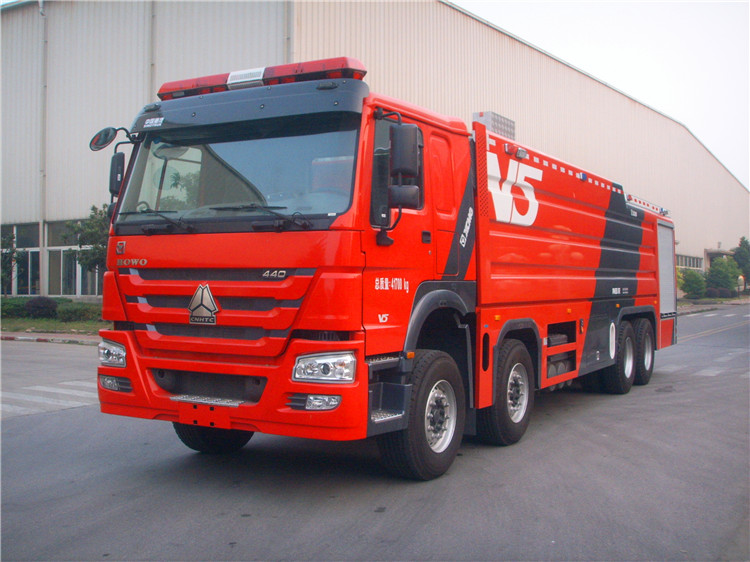

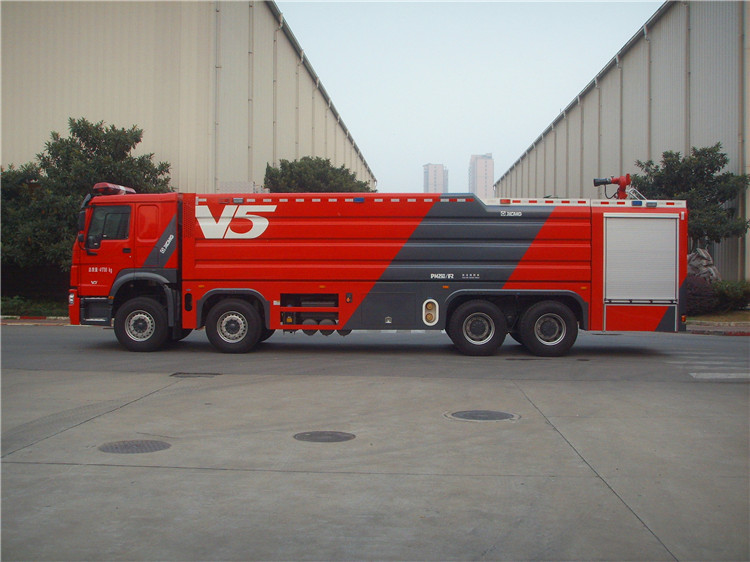

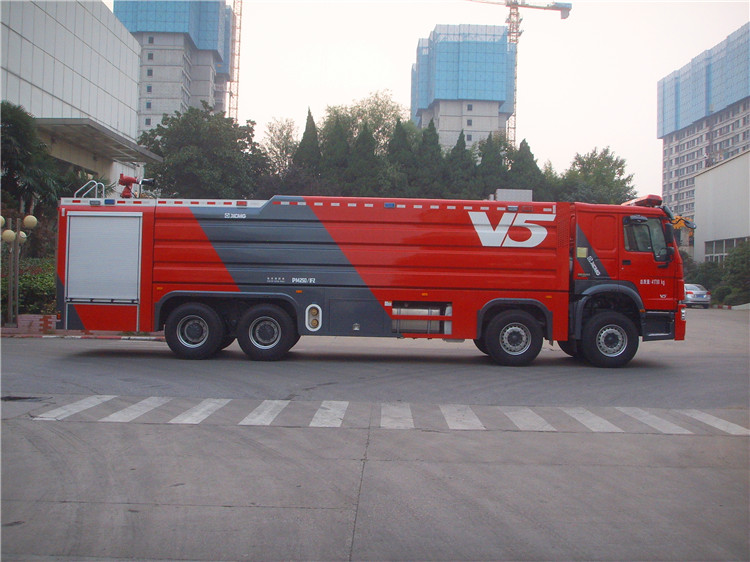

XCMG Official 25 ton new large capacity water tank fire truck SG250F2.
SG250F2 water tank fire truck, combing
water supply and fire fighting together, is one of the most important fire
fighting vehicles. It has large loading capacity and can play a role not only
by operating independently relaying on its advantage of low pressure and large
volume for the fire fighting and rescue in cities, mines, factories, docks,
especially logistics storage and other occasions, but also by working
cooperatively with water tower fire truck for the extinguishing in high-rise
buildings. In addition, the truck can be used for supplying water for high-rise
buildings.
1. It serves as a liquid supply vehicle. The chassis adopts China National
Heavy Duty Truck ZZ5437V4667E1 type two-class chassis, the national V emission,
the maximum speed is not less than 95km/h; the engine power is 324kw, which
meets the requirements of large-load liquid and high cost performance.
2. Fire-fighting system is equipped with
domestic CB10/100 fire pump and PSKD electric fire monitor produced by Chengdu
Weisite. It can meet the requirements of low-pressure and large-flow operating
conditions, and can also meet the cooperative fighting with lift fire truck.
The high-pressure output meets the fire-fighting requirements for high-rise
buildings.
3. This truck is equipped with 24700kg water
tank which can support firefighting operation in a location far away from the
water source or allow the truck to work independently.
|
Overall size : (L x W x H) |
11980×2500×3570mm |
|
|
Full-load weight |
41700kg |
|
|
Maximum truck speed |
≥95km/h |
|
|
Minimum turning diameter |
≤26m |
|
|
Approach angle |
≥16° |
|
|
Departure angle |
≥11° |
|
|
Maximum gradeability |
≥25% |
|
|
Front and rear suspension |
Front suspension |
1500mm |
|
Rear suspension |
2600mm |
|
|
Quality parameters |
Curb weight |
17000Kg |
|
Water |
24600Kg |
|
|
Foam |
— |
|
|
Chassis parameters |
Model |
Heavy Truck ZZ5437V4667E1 |
|
Drive form |
8×4 |
|
|
Manufacturer |
China Heavy Truck |
|
|
Engine power |
324Kw |
|
|
Emission Level |
National Ⅴ |
|
|
Number of driver and passengers |
2 |
|
|
Fire fighting system |
Pump rated flow |
90 L/s |
|
Pump rated pressure |
1.0 MPa |
|
|
Water absorption depth |
7m |
|
|
Diversion time |
≤100s |
|
|
Monitor model |
PSKD80W |
|
|
Monitor rated flow |
80 L/s |
|
|
Monitor rated pressure |
1.0 MPa |
|
|
Monitor shoot range |
≥80m |
|
