Summary
- Dimension(Long * Breadth * High):7616*3500*3402mm
- Machine Weight:23800kg
- Model Number:SD7N
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Certification:CE/ISO9001
Specifications
- Weight:23800.000kg
- Condition:New
- Moving Type:Crawler
- Ground pressure:71.9kpa
- Dozing capacity :8.4m3
- Blade width:3500mm
- Max. digging depth:498mm
- Rated revolution:2100rpm
- Max. torque:1097/1500N.m/rpm
- Rated power:185KW
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

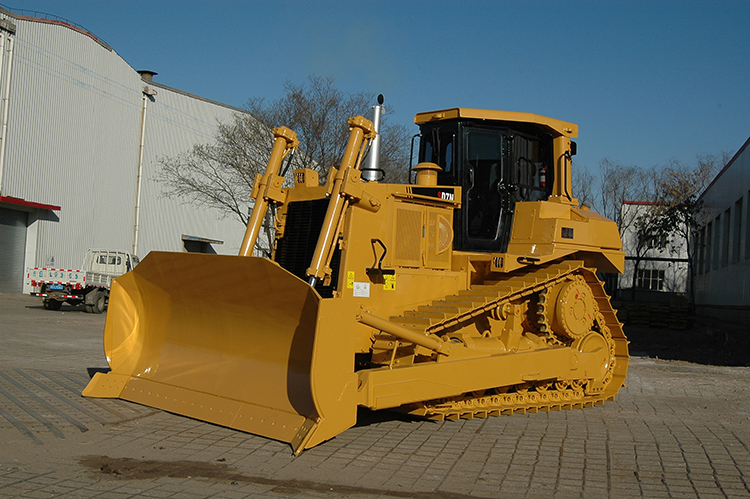

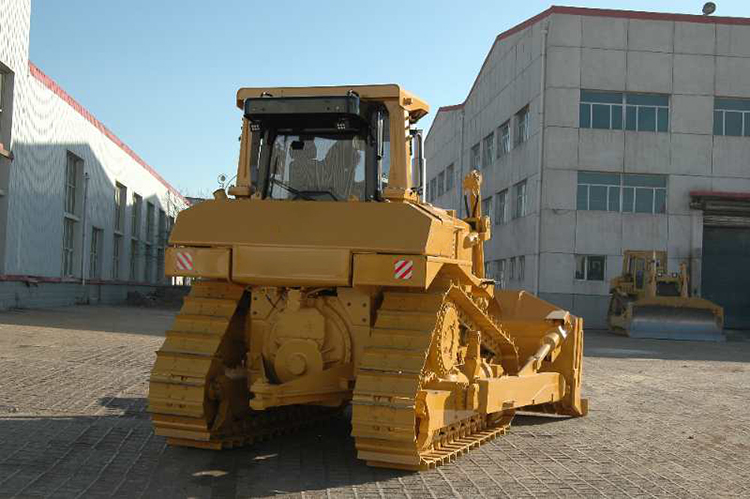

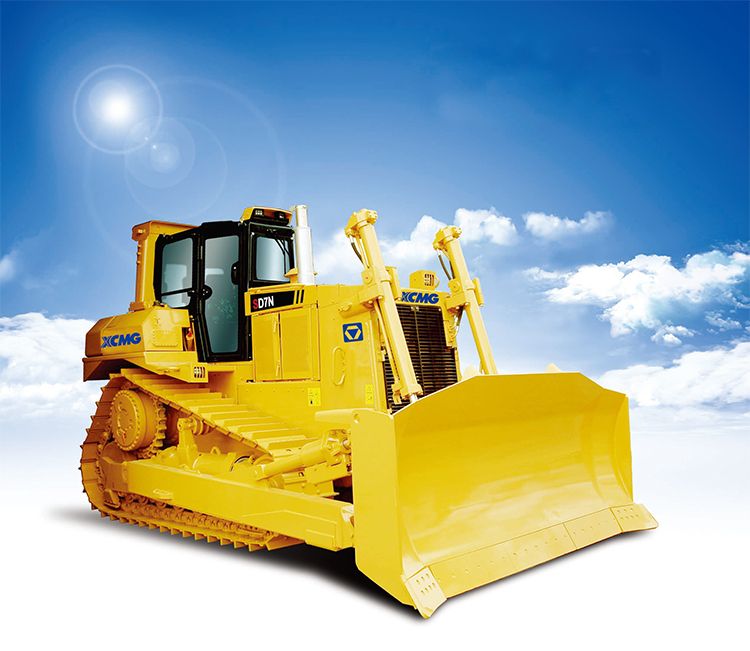

XCMG Official 230HP Crawler Bulldozer SD7N China New Bull Dozer.
XCMG SD7N bull dozer is 230 horsepower track-type dozer with elevated sprocket, power shift drive, semi-rigid suspended and hydraulic controls.
SD7N-230 horsepower, elevated sprocket bulldozer integrate with modular design is easy to repair& maintenance, it relieves oil with difference pressure, the hydraulic system performs protecting environment and save energy with high working efficiency. Safety and comfortable operation condition, electric monitoring and ROPS cabin with reliable entire quality, excellent service is your wise choosing.

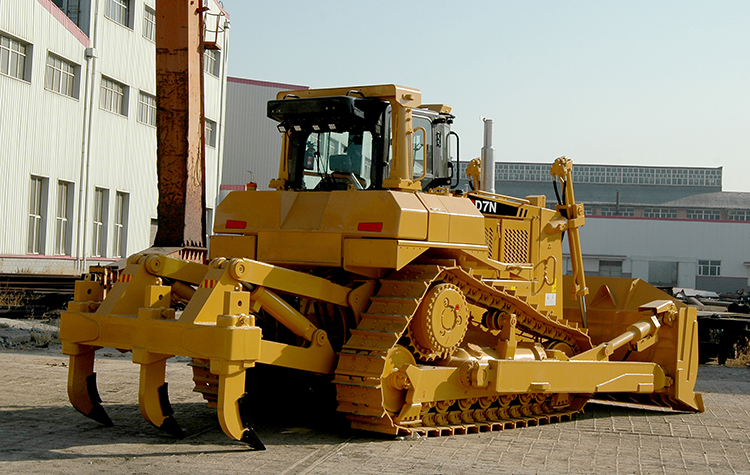

It can be equipped with straight tilting blade, angle blade, coal pushing blade, U shape blade; single shank ripper, three shanks ripper; ROP, FOPS, forest defense cabin etc. It is an ideal machine used in communication, desert, oil field, power, mining etc. large earth moving program.
|
Item |
SD7N |
|
Dozer |
Tilt |
|
Operation weight (kg) |
23800 |
|
Ground pressure (kpa) |
71.9 |
|
Track gauge (mm) |
1980 |
|
Min. ground clearance (mm) |
404 |
|
Gradient |
30。/25。 |
|
Dozing capacity (m3) |
8.4 |
|
Blade width (mm) |
3500 |
|
Max. digging depth (mm) |
498 |
|
Overall dimensions (mm) |
7616*3500*3402 |
|
Engine brand |
Cummins/ weichai |
|
Rated revolution (rpm) |
2100 |
|
Rated power (KW) |
185 |
|
Max. torque (N.m/rpm) |
1097/1500 |
|
Rated fuel consumption (g/KW.h) |
235 |
|
Pitch (mm) |
216 |
|
Width of shoe (mm) |
560 |
