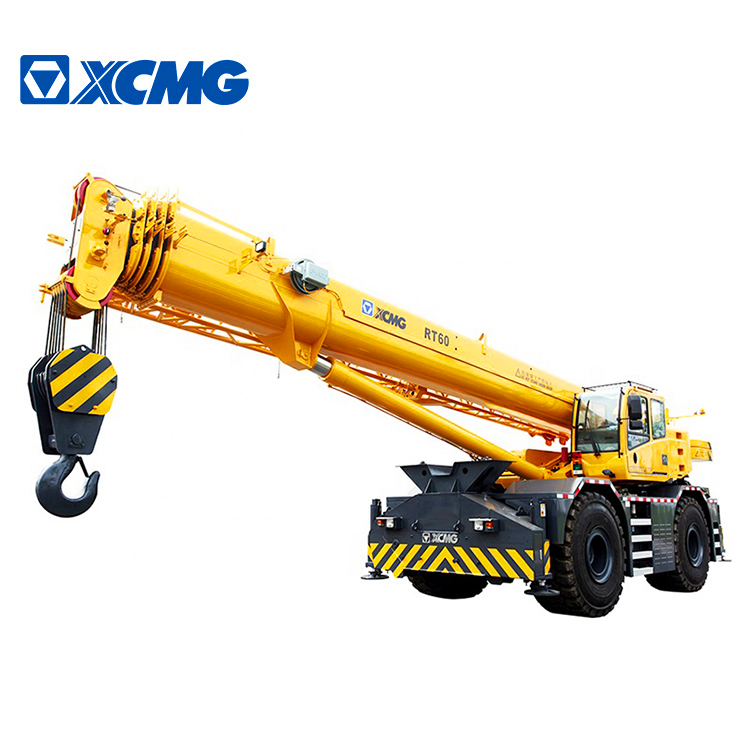

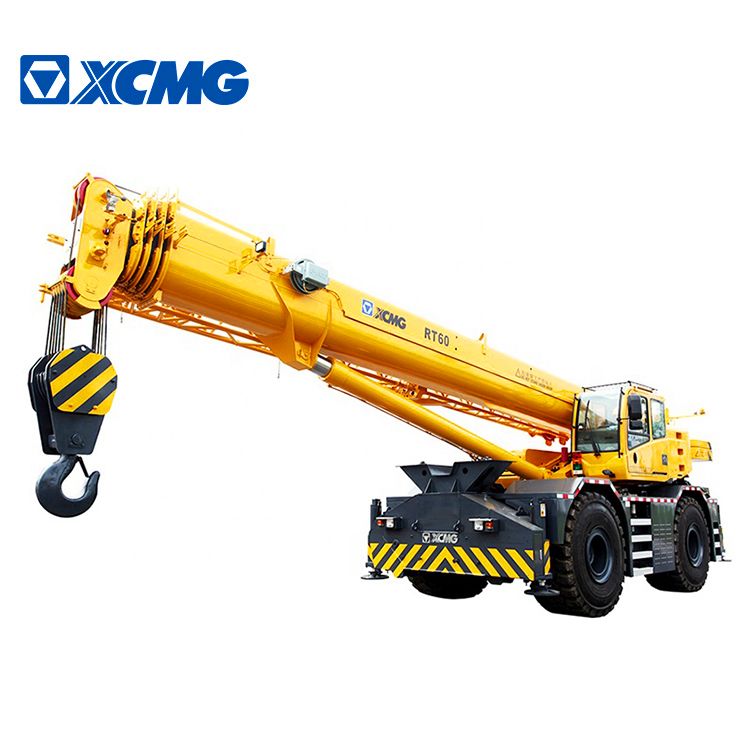

.jpg_l.jpg "XCMG Official 60 Ton Rough Terrain Crane RT60 China New Truck Crane Rough for Sale")
.jpg_t.jpg)
.jpg_t.jpg)
.jpg_t.jpg)
.jpg_t.jpg)
.jpg_t.jpg)
.jpg_t.jpg)

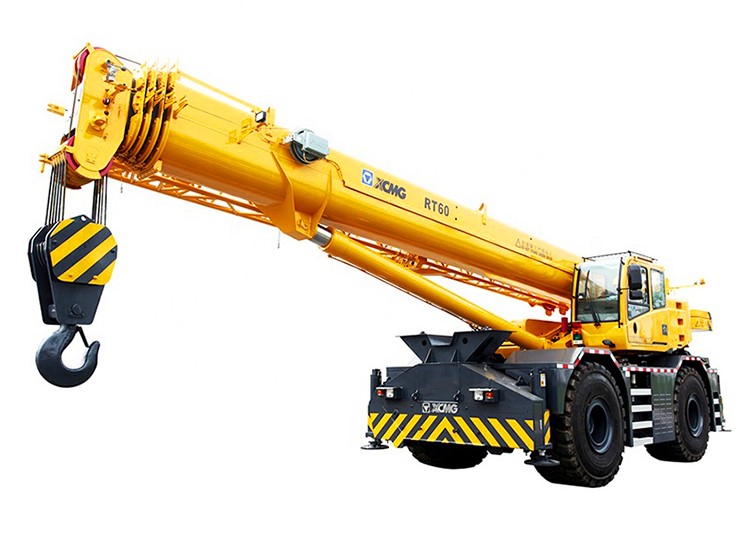

XCMG Official 60 Ton Rough Terrain Crane RT60 China New Truck Crane Rough for Sale
.jpg)
Summary
- Model Number:RT60
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Max. Lifting Height:58.1m
- Rated Lifting Moment:2033kN.m
- Rated Loading Capacity:60t
- Application:Construction
- Certification:CE/ISO9001
Specifications
- Weight:60000.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official 60 Ton Rough Terrain Crane RT60 China New Truck Crane Rough.
RT60 is suitable for lifting operation in oilfields, mines, road and bridge construction, etc.
1. Energy-saving and environment friendly
* Specialized energy-saving hydraulic system.
* The torque converter with lockout function has features of large torque at low speeds and high efficiency at high speeds.
* Elevating control system for freefall, without additional power needed.
2. High mobility and efficiency
* Two driving types of 4×2 and 4×4 are adopted with forwards and backwards driving function.
* Four steering modes are adopted, and the min. turning radius is 6.1m with better job site adaptability.
3. Powerful lifting capacity
* Developed jointly by Chinese and German engineers, with advanced design concept.
* 5-section boom of 43.2m and jib of 17.5m with wide operation range.
|
Wheel Track |
(mm) |
2400 |
|
Weight Parameters |
||
|
Gross Vehicle Weight When Driving |
(kg) |
49065 |
|
Axle Load |
(kg) |
(Front Axle)25032/(Rear Axle)24033 |
|
Kinetic Paremeter |
||
|
Engine Type |
- |
QSB6.7 |
|
Engine Rated Power(kw/ |
(kw/(r/min)) |
194 |
|
Engine Max Torque(N.m/ |
(N.m/(r/min) |
987 |
|
Driving Parameters |
||
|
Max Travel Speed |
(km/h) |
35 |
|
Min Travel Speed |
(km/h) |
2 |
|
Swerve |
||
|
Min Turning Radius |
(m) |
12.2 |
|
Head Min. Turning Diameter |
(m) |
- |
|
Max Gradeability |
(%) |
65 |
|
Min. Ground Clearance of Machine |
(mm) |
467 |
|
Approach Angle |
(°) |
20 |
|
Departure Angle |
(°) |
17.5 |
|
Braking Distance |
(m) |
9 |
|
Fuel Consumption per 100kms |
(L) |
- |
|
Major Performance Parameters |
||
|
Max. Rated Lifting Capacity |
(t) |
60 |
|
Min. Rated Range |
(m) |
3 |
|
Max. Load Moment of Basic Jib |
(kN·m) |
2033 |
|
Radius of Gyration of Turntable Tail |
(mm) |
4220 |
|
Outrigger |
||
|
Longitudinal |
(m) |
7.3 |
|
Horizontal |
(m) |
7.2/5.6 |
|
Max. Lifting Height |
||
|
Basic Boom |
(m) |
11.3 |
|
Longest Main Boom |
(m) |
43.3 |
|
Longest Main Boom + Auxiliary Boom |
(m) |
58.1 |
