XCMG 6m pavers RP605L world’s first gas-electric hybrid road paver machine exhibited at Bauma price
Summary
- Weight:19500 kg
- Dimension(L*W*H):7316x2600x3983 mm
- Model Number:RP605L
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
- Paving Width:6 m
- Max. Paving Thickness:260 mm
- Power(W):73.5 kw
- Certification:CE/ISO
Specifications
- Weight:19500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

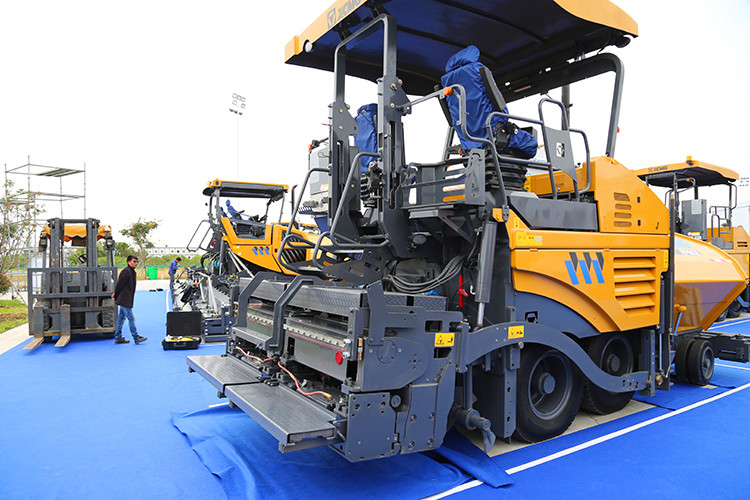

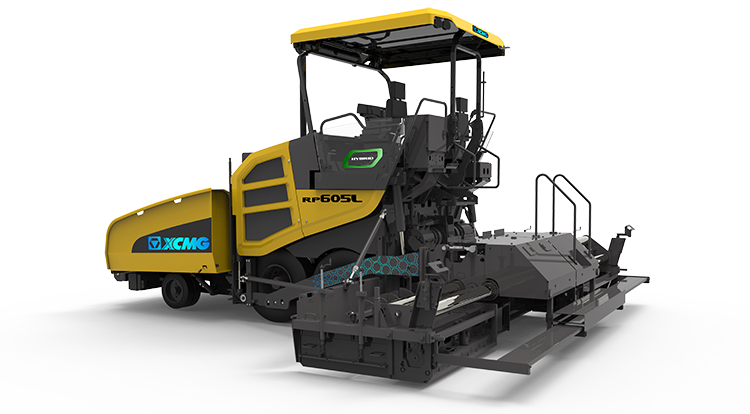

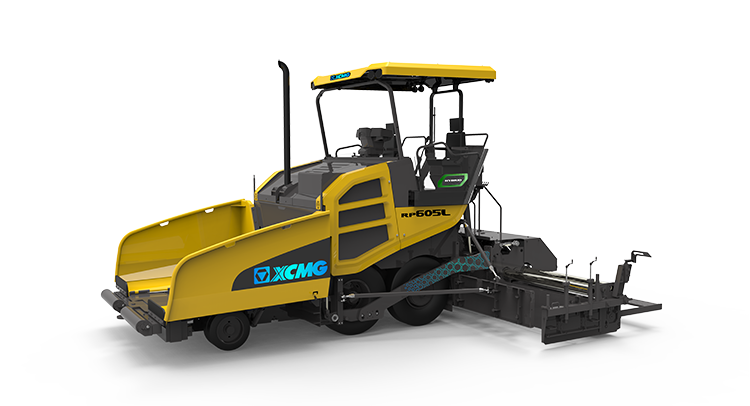

XCMG new 6m paver
machine RP605L world’s first gas-electric hybrid paver exhibited at Bauma.
1.Dual
working mode of pure electric power and hybrid power, can switch freely
according to needs.
2.Pure
electric mode for transport mode, low noise and zero emission, fuel consumption
reduced by more than 10%.
3.Permanent
magnet synchronous motor (PMSM) drives the working devices such as propel, conveyor
and auger, achieves higher control accuracy, working efficiency and
reliability.
4.Patented
swinging type rear four-wheel drive technology offers higher traction performance
and better adaptability.
5.Optional
full extension screed, hydraulic driven 2.4~6m stepless extensions, hydraulic
crown adjustment and segment gap adjustment save time and effort.
|
Item |
parameter |
|
Model Number |
RP605L |
|
Full Weight |
19500 kg |
|
Overall Dimension(LxWxH) |
7316x2600x3983 mm |
|
Basic Pave Width |
2.4-6 m |
|
Maximum Pave Width |
6 m |
|
Maximum Layer Thickness |
260 mm |
|
Maximum Travel Speed |
0-15 m/min |
|
Maximum Paving Speed |
0-15 km/h |
|
Maximum Laydown Rate |
400 t/h |
|
Engine Rated Power |
73.5 kw/ 1500 rpm |
|
Battery Capacity |
53kwh |
