XCMG official 6m width asphalt paver RP600 china hydraulic crawler asphalt paver machine price
Summary
- Weight:19ton
- Dimension(L*W*H):5535*1800*3580mm
- Model Number:RP600
- Brand Name:XCMG
- Place of Origin:Xuzhou, Jiangsu, China
- Paving Width:5.85m
- Max. Paving Thickness:200mm
- Power(W):159kw
- Production Capacity:500T/H
- Certification:CE/ISO9001
Specifications
- Weight:19000.000kg
- Condition:New
- Moving Type:Other
- Driving speed:3.3km/h
- Maximum paving speed:20m/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

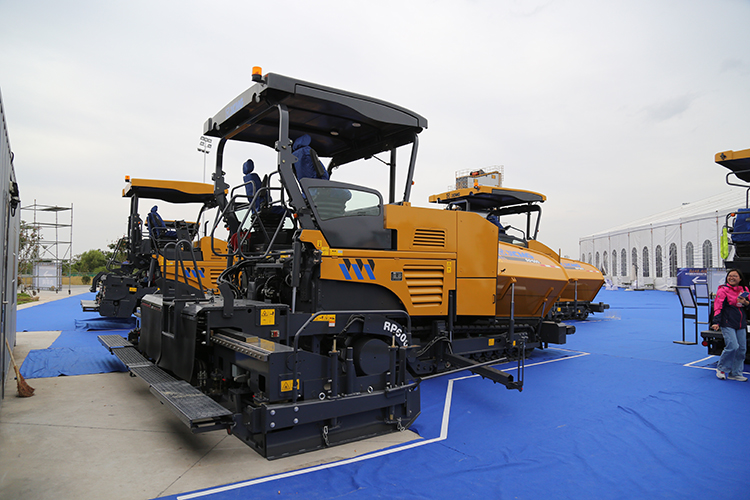

6m width asphalt paver RP600 china hydraulic crawler asphalt paver machine.
XCMG RP600 asphalt paver machine reinforced caterpillar device with large grounding area, feed material level is controlled by contact-type material shot, the material level is controlled by non-contact ultrasonic sensor, and spray control adopts touch screen operation.
Standard centralized lubrication system with pulsed spray system allows emulsified asphalt spray and mix paving to be synchronized. The five-section sprayer has compact structure, reasonable arrangement, high spraying precision, good uniformity of horizontal and vertical spraying, and fully meets the requirements of high-grade highway construction.
2200L large-capacity asphalt tank with integrated asphalt pump, spray control handle, emergency heating channel and constant temperature heating device, and has an overhaul access, which can provide a longer continuous construction distance and convenient operation and maintenance. Equipped with electronically controlled diesel sprayer, easy to use.
Item | RP600 |
Dimension | 7780×3000×3985 |
Weight | 27.5-28.3t |
Driving speed | 3.3km/h |
Basic pave width | 3.0-5.85m |
Maximum pave width | 5.85m |
Maximum layer thickness | 200mm |
Maximum paving speed | 20m/min |
Hopper capacity | 13t |
Maximum laydown rate | 500t/h |
Rate power | 159/2000 kw/rpm |
