XCMG QY70K-I 70 ton hydraulic lift truck crane price
Summary
- Model Number:QY70K-I
- Brand Name:XCMG
- Place of Origin:Jiangsu,China
- Span:7.3m
- Max. Lifting Height:59.5m
- Max. Lifting Load:70 tons
- Rated Lifting Moment:2303kN.m
- Application:Construction
- Certification:CE/ISO9001
Specifications
- Weight:43000.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

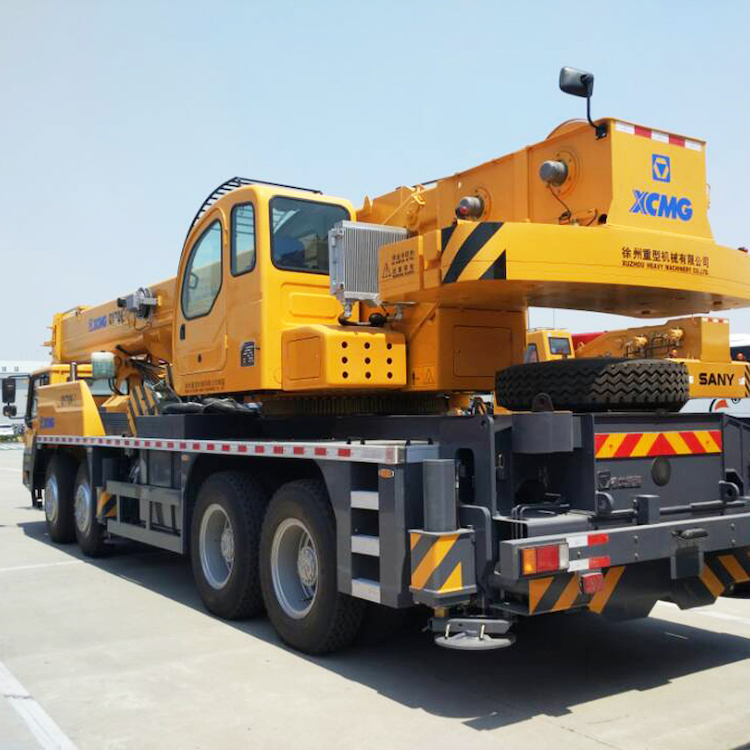

XCMG QY70K-I 70 ton hydraulic lift truck crane.
XCMG QY70K-I truck crane bring customers new advantages. 6 specialized techniques, load moment limit with color LCD make the machine outstanding in the market. Exclusive telescoping technology prevents occurrence of core pipe bending, oil cylinder bending and boom breaking caused by mis-operation, and therefore operation safety is improved.
Advantages and highlights:
1. High-power air-conditioner meets the requirements of T3 working condition
High-power air-conditioners are equipped in driver’ s cab and operator’ s cab, heat transferring area of condenser is increased by 75%, displacement of compressor is increased by 20%, refrigeration effect is improved by above 25% relative to regular products, which meets the requirements of T3 working condition.
2. Hydraulic heat radiation system with superpower, permissible ambient temperature exceeds 55℃
The layout mode of oil port of radiator is optimized, heat radiating area of core is increased by 50%, radiation power of hydraulic oil radiator is improved from 10kW to 18kW, permissible ambient temperature exceeds 55℃, which meets the requirements for high temperature operation.
3. High-temperature resistant and ageing resistant wiring harness, service life covers product lifecycle
The protecting ply of wiring harness is produced according to QC/T29106-2004 Technical Conditions of Automobile Low-voltage Wiring Harness, heat-resistant temperature is increased to 105℃, corrugated pipes are added for protection, protection class of plug-ins is IP67. The service life in high temperature operation exceeds 15 years.
4. High-temperature resistant sealing elements, working efficiency is improved by 10%
The seals of key hydraulic components such hydraulic pump, hydraulic motor, extension cylinder, jack cylinder, steering boosting cylinder, elevating cylinder and telescoping cylinder are upgraded to high temperature resistant silicon rubber lip seal, working efficiency is improved by 10%.
|
Description |
Unit |
Parameter value |
|
|
Overall length |
mm |
13900 |
|
|
Overall width |
mm |
2800 |
|
|
Overall Height |
mm |
3575 |
|
|
Axle base |
1st ,2nd axle |
mm |
1470 |
|
2nd ,3rd axle |
4105 |
||
|
3rd ,4th axle |
1350 |
||
|
Wheel Base |
mm |
2304+2075 |
|
|
Total vehicle mass in travel configuration |
kg |
43000 (not including auxiliary counterweight of 1t) |
|
|
Axle load |
1st and 2nd Axle |
kg |
17000 |
|
3rd and 4th Axle |
26000 |
||
|
Engine Model |
|
WD615.338 |
|
|
Engine rated power |
kw/(r/min) |
276/2200 |
|
|
Engine rated torque |
N.m/(r/min) |
1500/1400 |
|
|
Engine rated rotational speed |
r/min |
2100 |
|
|
Max. travel speed |
km/h |
80 |
|
|
Min. steady travel speed |
km/h |
3 |
|
|
Min. turning diameter |
m |
24 |
|
|
Min. turning diameter at boom tip |
m |
29 |
|
|
Min. ground clearance |
mm |
327 |
|
|
Max. grade ability |
% |
40 |
|
|
Approach angle |
° |
19 |
|
|
Departure angle |
° |
11 |
|
|
Braking distance (at 30 km/h, full load ) |
m |
≤10 |
|
|
Oil consumption per 100km |
L |
45 |
|
