XCMG Official 55 Ton Hydraulic Crane Truck QY55KA_Y China Truck Cranes Price
Summary
- Model Number:QY55KA_Y
- Brand Name:XCMG
- Place of Origin:China
- Max. Lifting Height:58.1m
- Max. Lifting Load:55t
- Rated Lifting Moment:1822kN.m
- Application:Construction
- Certification:CE/ISO9001
Specifications
- Weight:55000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

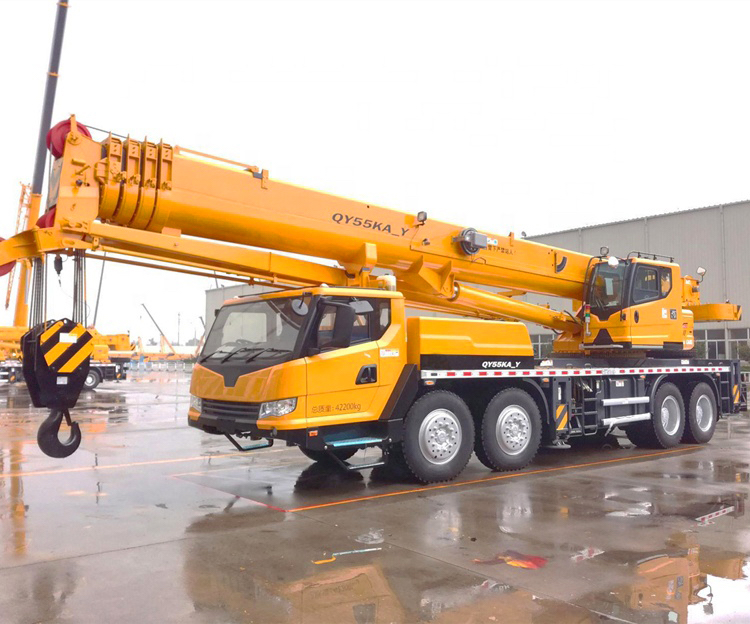

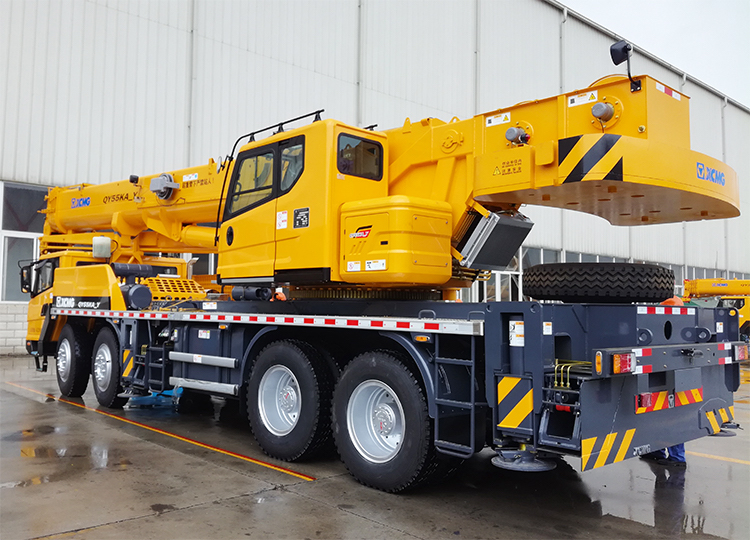

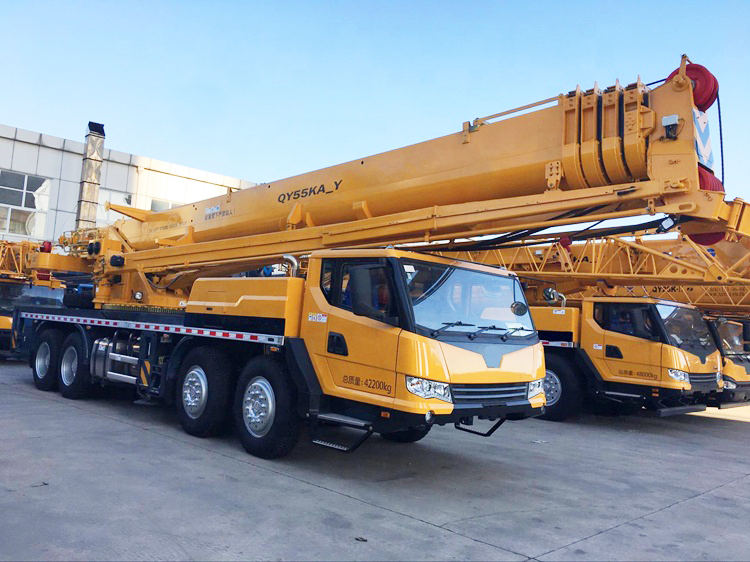

XCMG Official 55 Ton Hydraulic Crane Truck QY55KA_Y China Truck Cranes.
XCMG QY55KA_Y newly upgraded 55-ton truck crane with compact structure and highest operating performance in the industry.
1.Leading lifting and driving performances
Five section U-type booms. The boom length is 11.4m-43.5m with strong lifting performance, leading 5%-10% ahead of products with the same tonnages in the same industry.
High-power engine with good dynamic performance, strong gradeability and superior trafficability. The maximum gradeability and maximum travel speed respectively are 42% and 85km/h.
2. Reliability of heat dissipation, electrical system etc. has been improved with safer operation and driving
Waterproof connector clip. It is equipped with rubber sheath inside with excellent water impervious and level of protection reaches to IP65.
3. Mature and reliable double-pump confluence technique, maintaining the advantages of efficient operation
The double-pump confluence technique is adopted in raising and falling of winch, extending and retracting of lazy boom and luffing, leading ahead of luffing and extending and retracting operations.
4. Air-aid shift gears and 45% of shifting force is reduced
The boost system will work only by stepping on the clutch that effectively avoids gearbox damaging gears when shifting. Compared with the same industry, 100mm distance of shift gears and 45% of shifting force are respectively reduced.
|
Dimensions |
Total length |
13100 |
mm |
|
Total width |
2750 |
mm |
|
|
Total height |
3350 |
mm |
|
|
Weight |
Total weight in a traveling state |
38580 |
kg |
|
Front axle load |
12950 |
kg |
|
|
Rear axle load |
25630 |
kg |
|
|
Power |
Engine model |
Euro lll Hangfa WD615.334/Euro ll hangfa WD615.46 |
|
|
Rated Engine Power |
206/2200 266/2200 |
kW/(r/min) |
|
|
Engine rated torque |
1100/1400 1460/1400 |
N.m/(r/min) |
|
|
Travel |
Max.travel speed |
66 75 |
Km/h |
|
Min.turning diameter |
24 24 |
mm |
|
|
Min.ground clearance |
285 285 |
mm |
|
|
Approach angle |
16 16 |
° |
|
|
Departure angle |
11 11 |
° |
|
|
Max.gradeability |
27 46 |
% |
|
|
Fuel consumption of 100km |
42 42 |
L |
|
|
Lifting performance |
Max.lifting capacity |
50 |
t |
|
Min.rated working radius |
3 |
m |
|
|
Turning radius at swing table tail |
3482 |
m |
|
