XCMG Original Manufacturer 50 Ton Mobile Truck Crane QY50K-II China Mobile Crane Price
Summary
- Model Number:QY50K-II
- Brand Name:XCMG
- Place of Origin:China
- Max. Lifting Height:58m
- Rated Lifting Moment:2009kN/m
- Rated Loading Capacity:50t
- Application:Construction
- Certification:CE/ISO9001
Specifications
- Weight:50000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

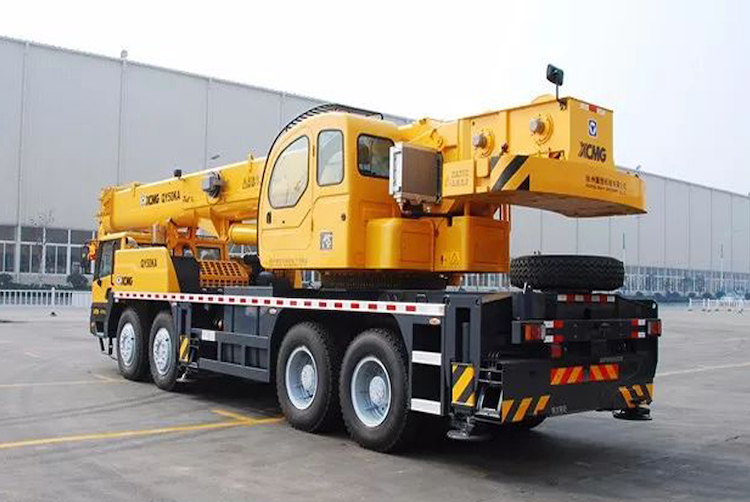

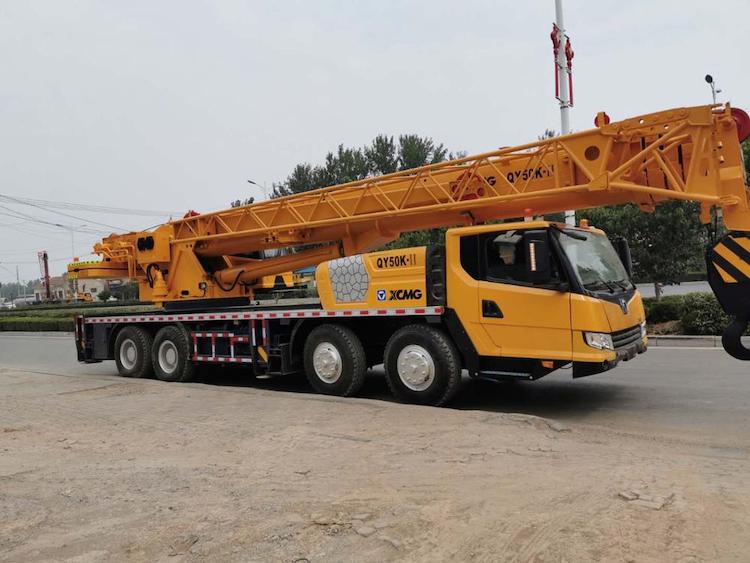

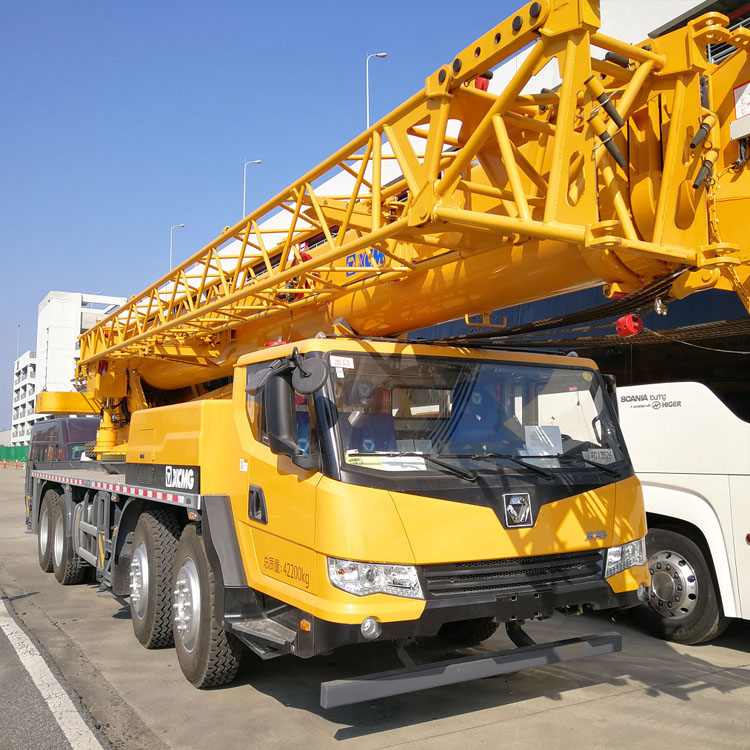

XCMG Original Manufacturer 50 Ton Mobile Truck Crane QY50K-II China Mobile Crane.
Main parameters:
Max. rated total lifting capacity:50T
5 sections "U" type main boom : 42.7M
Fully extended boom+jib:57.7M
Main configuration:
*WD615.338(276 kw)
* Wire rope
* Hirschmann PAT
*Heater
*Full dimension cab
*A/C
XCMG QY50K- structure is compact, the industry operating performance is the highest. Lifting performance and driving performance of a comprehensive upgrade, leading competitors. Dual-pump confluence technology, operating efficiency of a comprehensive lead.
Critical system reliability increases, job travel safer. Power shift, manipulation more light.The new upgrade appearance and user-friendly design, driving more comfortable manipulation.
|
Project |
Unit |
Parameter |
|
Overall Length |
(mm) |
13770 |
|
Overall Width |
(mm) |
2800 |
|
Overall Height |
(mm) |
3570 |
|
Wheel Base |
(mm) |
1470+4105+1350 |
|
Wheel Tread |
(mm) |
2304/2304/2075/2075 |
|
Weight |
||
|
Travelling Weight |
(kg) |
42000 |
|
Axle Load |
(kg) |
16000/26000 |
|
Kinetic Parameter |
||
|
Engine Model |
D10.38A-40/SC10E380.1Q4/WP10.375E41 |
|
|
Rated Power |
(kw/(r/min)) |
276/2200 279/2200 276/2200 |
|
Rated Torque |
(N.m/(r/min)) |
1500/1100-1600 1500/1300 1480/1200-1600 |
|
Travelling Parameter |
||
|
Travelling |
||
|
Max.Travelling Speed |
(km/h) |
80 |
|
Min.Stable Travelling Speed |
(km/h) |
- |
|
Turning |
||
|
Min Diameter of Turning Circle |
(m) |
24 |
|
Min Diameter of Turning Circle of Boom Head |
(m) |
28.158 |
|
Max Gradeability |
(%) |
40 |
|
Minimum Ground Clearance |
(mm) |
327 |
|
Approach Angle |
(°) |
17 |
|
Departure Angle |
(°) |
11 |
|
Braking Length |
(m) |
≤10 |
|
Fuel Consumption Per Hundred Kilometers |
(L) |
42 |
|
Main Performance Parameters |
||
|
Max.Rated Lifting Capacity |
(t) |
50 |
