XCMG Official 25 Ton Small Mobile Truck Crane QY25K5A_Y China Mobile Crane Price in Southeast Asia
Summary
- Model Number:QY25K5A_Y
- Brand Name:XCMG
- Place of Origin:China
- Max. Lifting Height:55m
- Rated Loading Capacity:25t
- Application:Construction
- Certification:CE/ISO9001
Specifications
- Weight:25000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official 25 Ton Small Mobile Truck Crane QY25K5A_Y China Mobile Crane Price in Southeast Asia.

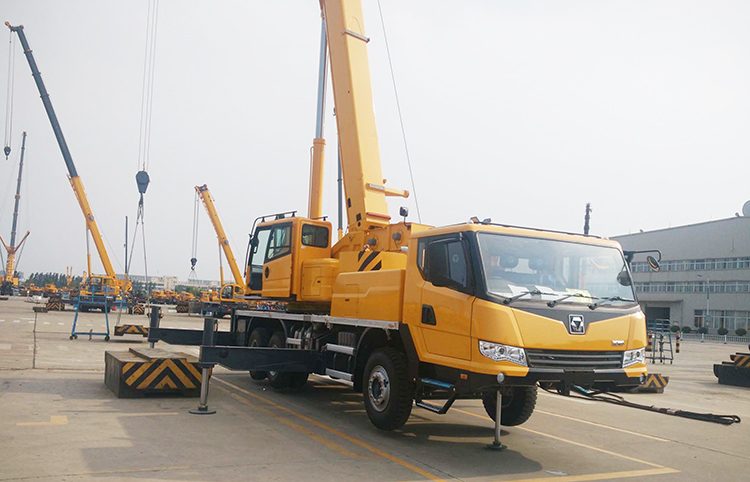

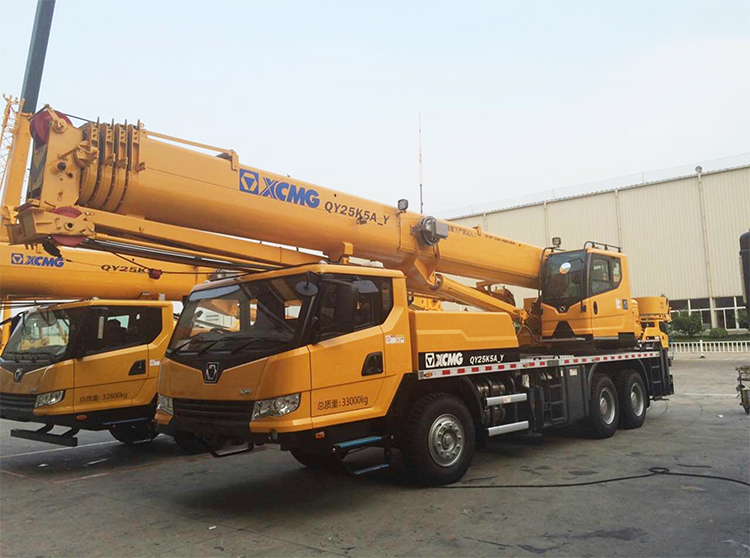

QY25K5A truck crane is the product with high reliability inheriting XCMG classical and advanced technology about design and manufacture truck crane of many years and based on mature technology.
Special truck crane chassis designed and manufactured by our company, all covered working surface and new appearance outline are equipped. The operations of crane are very simple, convenient and flexible. It is widely used for lifting operation and installation work in urban renewal, transportation, ports, bridges, oil field, industrial and mining enterprises, etc.
Performance Characteristics:
1. U-shaped cross-section boom has small depth-width ratio, strong bearing capacity, small deformation, strong anti-bending and powerful lifting capacity. The main boom length is 10.6m to 41.0m, the performance of mid-extended boom and fully extended are also superior.
2. Plug-in boom head effectively increases the boom connect length and reduces boom deformation. Embedded sliders are equipped, which enlarge the contact square and reduce the contact stress of boom.
3. With 9-speed transmission equipped, it has superior travel and grade ability. The max. grade ability is 40%, max. travel speed is 90km/h.
|
Category |
Item |
Unit |
Parameter |
|
Outline Dimensions |
Overall length |
mm |
12680 |
|
Overall width |
mm |
2500 |
|
|
Overall height |
mm |
3400 |
|
|
Axle base |
mm |
4425+1350 |
|
|
Wheelbase |
mm |
2074/1834/1834 |
|
|
Weight |
Total vehicle mass in travel configuration |
kg |
32800 |
|
Power |
Model |
SC9DF290Q4 |
|
|
Rated power |
kw/(r/min) |
213/2200 |
|
|
Rated torque |
N.m/(r/min) |
1200/1400 |
|
|
Travel Performance |
Max. travel speed |
km/h |
90 |
|
Min. turning diameter |
m |
22 |
|
|
Min. ground clearance |
mm |
275 |
|
|
Approach angle |
° |
11 |
|
|
Departure angle |
° |
12 |
|
|
Braking distance(at 30 km/h) |
m |
≤10 |
|
|
Max. grade ability |
% |
41 |
|
|
Oil consumption per 100km |
L |
≤32 |
|
|
Noise |
Exterior noise level in accelerating |
dB(A) |
88 |
|
Noise Level at seated position |
dB(A) |
90 |
