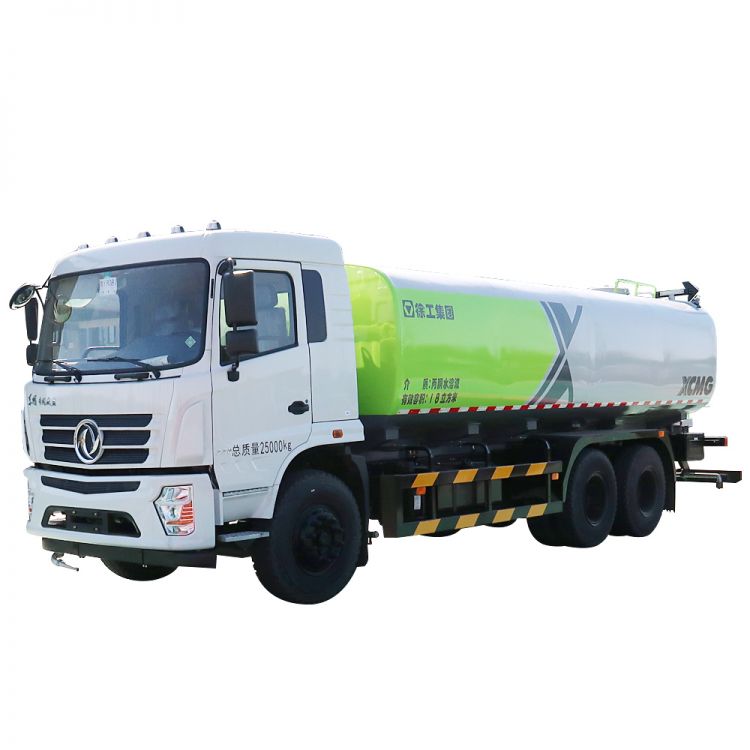

The greening spraying vehicle is suitable for all kinds of road sprinklers, spray, cooling, dust removal and dust removal. It can also be used for road maintenance, landscaping and emergency fire fighting, transportation and drinking water. Our company's production of greening spraying vehicle mainly consists of car chassis, tank, water pump, ball valve and water pipe, sprinkler system and so on. Water pump, power box, water switch components are based on national standard products, good performance, reliable work, high pressure, large flow, low fuel consumption when sprinkling water, open the music speakers switch when working, good music with you work cheerfully.

（1）Rich in features

The truck has a variety of sprinklers, The front is equipped with a duckbill nozzle or a round head nozzle, and a cylindrical sprinkler and a side spray shower head are arranged at the back to meet the needs of front, back and side spray. The truck's rear working platform also has a sprinkler. The sprinkler can have a variety of spray modes such as DC, heavy rain, moderate rain, drizzle, and foggy adjustment. It can also be rotated 360 degrees for pesticide spraying. These properties greatly enhance vehicle suitability and improve vehicle utilization.

（2）Easy to use

（a）There are fewer jams. The waterway is equipped with multiple filtering devices. The combination of coarse filtration and fine filtration minimizes the probability of blockage of pipes, nozzles and pumps.

（b）It is convenient to add water. The self-contained water pump has self-priming function and filter protection, which can pump water in and out, add water in the field The water supply port of the pipeline has fire-fighting joints, which can add water from the fire waterway; the can lid can be freely opened and closed, and the water  can be added to the tank using a water pipe.

（c）The function of each function is controlled by electric control pneumatic, which can be switched automatically by one button.

（3）Fine design

（a）The tank is made of high-performance steel plate. The tank is divided into compartments by the partition. When the vehicle starts and stops, it can effectively reduce the impact caused by the liquid in the tank.

（b）The water tank is provided with a measuring tube, and the Water quantity can be viewed in time to effectively avoid the misoperation caused by insufficient water.

（c）The water tank is provided with an overflow device, which can overflow in time when excessive water is added to avoid overloading.

（d）The upper end of the water tank is designed with a door for direct water addition. It can also be used for maintenance personnel to enter and exit the tank, and is supplemented by ladders for easy climbing.
