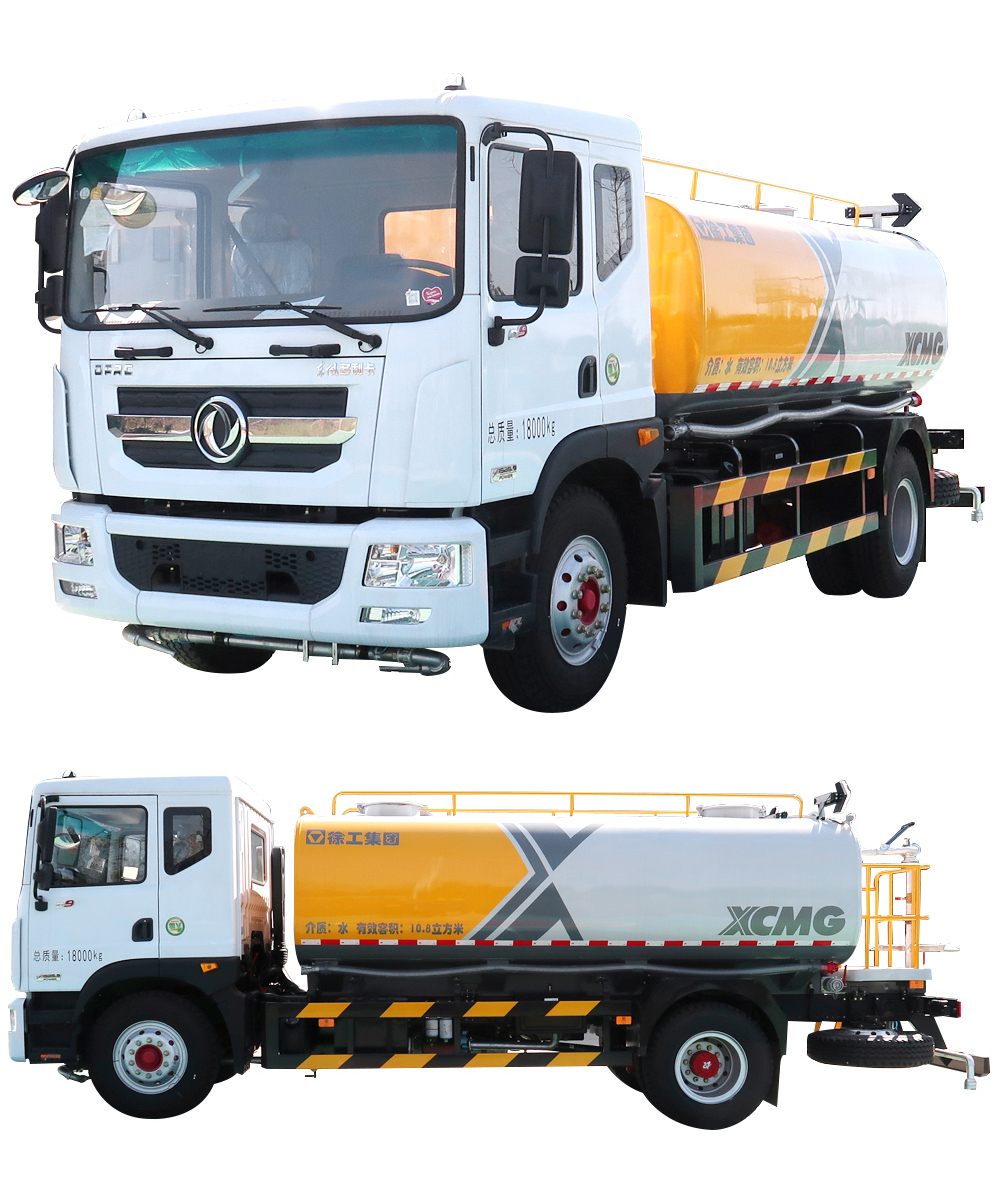

XCMG Official XZJ5180GSSD5 Sprinkler Truck for sale
Specifications
- Weight:7305.000kg
- Condition:New
- Moving Type:Wheel
- Engine power:140Kw
- Wheelbase :4500mm
- Working speed:5～20km/h
- L × W × H :8450×2500×3150mm
- Maximum total mass:18000kg
- Curing quality:7305kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
（1）Rich
in features
The
truck has a variety of sprinklers, The front is equipped with a duckbill nozzle
or a round head nozzle, and a cylindrical sprinkler and a side spray shower
head are arranged at the back to meet the needs of front, back and side spray.
The truck's rear working platform also has a sprinkler. The sprinkler can have
a variety of spray modes such as DC, heavy rain, moderate rain, drizzle, and
foggy adjustment. It can also be rotated 360 degrees for pesticide spraying.
These properties greatly enhance vehicle suitability and improve vehicle
utilization.
（2）Easy
to use
（a）There
are fewer jams. The waterway is equipped with multiple filtering devices. The
combination of coarse filtration and fine filtration minimizes the probability
of blockage of pipes, nozzles and pumps.
（b）It
is convenient to add water. The self-contained water pump has self-priming
function and filter protection, which can pump water in and out, add water in
the field The water supply port of the pipeline has fire-fighting joints, which
can add water from the fire waterway; the can lid can be freely opened and
closed, and the water can be added to the tank using a water pipe.
（c）The
function of each function is controlled by electric control pneumatic, which
can be switched automatically by one button.
（3）Fine
design
（a）The
tank is made of high-performance steel plate. The tank is divided into
compartments by the partition. When the vehicle starts and stops, it can effectively
reduce the impact caused by the liquid in the tank.
（b）The
water tank is provided with a measuring tube, and the Water quantity can be
viewed in time to effectively avoid the misoperation caused by insufficient
water.
（c）The
water tank is provided with an overflow device, which can overflow in time when
excessive water is added to avoid overloading.
（d）The upper end of the water tank is designed with a door for direct water addition. It can also be used for maintenance personnel to enter and exit the tank, and is supplemented by ladders for easy climbing.
|
description |
parameter |
|
Chassis parameters
|
Model |
EQ5180GLVJ |
|
Power（kw） |
140 |
|
|
Wheelbase（mm） |
4500 |
|
|
Vehicle parameters |
Maximum total mass（kg） |
18000 |
|
L×W×H（mm） |
8450×2500×3150 |
|
|
Curing quality（kg） |
7305 |
|
Operating performance
parameters Tank
|
effective volume（m3） |
11（Actual 12.73 m3） |
|
Working speed（km/h） |
5～20 |
|
|
Sprinkling width（m） |
≥16 |
|
|
Sprinkling capacity（L/ m2） |
0.2～2.0 |
|
|
Nozzle Flush System Pressure（kPa） |
≥300 |
|
|
Gun flushing flow rate（L/min） |
≥60 |
|
|
Spray gun range（m） |
≥25 |
|
|
Self-priming height（m） |
6.5 |
|
|
Opposite flush width（m） |
24 |
