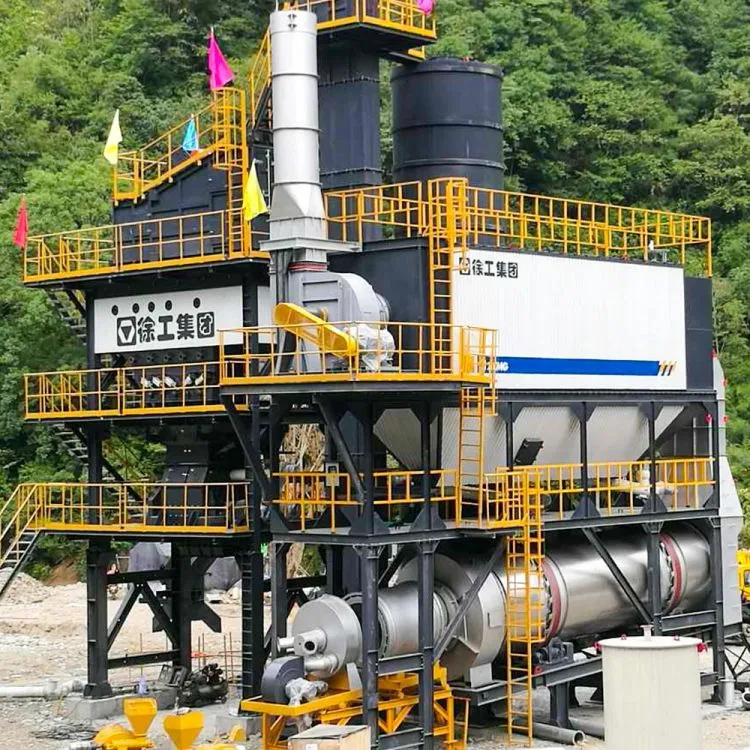

XAP80 Asphalt mixing plant
1、XAP80 asphalt mixing equipment is a modern advanced product in domestic developed by XCMG based on the introduction of advanced and mature technology from Europe.
2、The equipment can produce various grades of asphalt mixture, modified asphalt mixture and warm mix asphalt Materials, etc., and it can also be used matching with thermal regeneration equipment and foam asphalt equipment, to fully meet the needs of grade highway, municipal roads, freight yard and other engineering.
3、A number of inventions and utility model patents have been obtained and applied to XAP80 asphalt mixing equipment.
4、The equipment is equipped with screening precision control technology, secondary weighing asphalt technology, cauldron slow mixing, intelligent feeding material compensation technology, PID control and expert control technology, optimized combination of secondary dust removal technology and so on, which highlights the core features such as economy, reliability, advancement and intelligence of XCMG asphalt mixing equipment.

Description	Unit		Parameter value
Rated production rate	t/h		80
Mixing capacity	kg /batch		1250
Fuel consumption rate	kg/t		≤6.5
Dust emission concentration (bag dust)	mg/Nm³		≤20(Washing material)
Blackness of exhaustion(Ringelman Level)	Level		≤I
Static measurement accuracy	Aggregate	%	±0.3
	Powder	%	±0.3
	Asphalt	%	±0.2
Dynamic measurement accuracy	Aggregate	%	±2.5
	Powder	%	±2.5
	Asphalt	%	±2.0
Total installed power	kW		274
Maximum stand-alone power	kW		55
Occupied area	m2		812（29m×28m）
