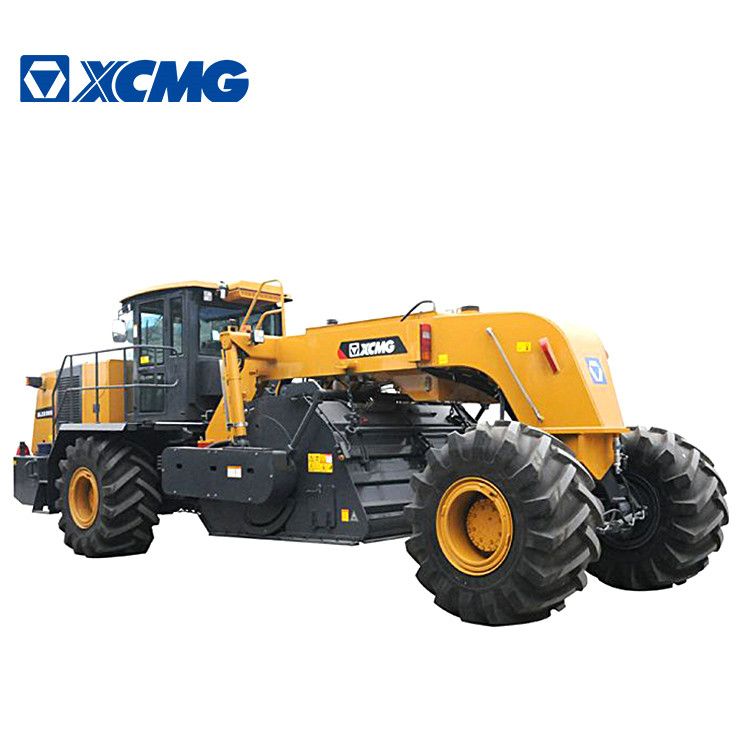

XCMG Official Road Cold Recycler XLZ2303 For Sale
![](/app/topc/statics/images/close.png)
![XCMG Official Road Cold Recycler XLZ2303 For Sale](http://www.machmall.com/images/store/357636/item/XCMG XLZ2303 (6).jpg)
![](/app/topc/statics/images/close.png)
Summary
- Rated Power:447kW
- Model Number:XLZ2303
- Place of Origin:China
- Rated Speed:0-10km/h
Specifications
- weight:29500.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG XLZ2303 Road Cold Recycler.
XLZ2303
road reclaimer is a set of multi-functional road maintenance equipment. It is
mainly used for upgrading and reconstruction of old asphalt pavement. It is
mainly used for mixing fillers, cement, limes and other objects with natural
soil, So as to improve mechanical and physical properties of soil. It can be
also used for milling damaged asphalt or asphalt concrete pavement with the
thickness of 200mm and below.
Performance Characteristics:
*
The milling width of the road reclaimer is 2300mm; generally, the maximum
milling depth is 480mm.
*
The milling/mixing rotors are driven by a, high-speed motor and a speed
reducer. The metallic milling/mixing rotors adopt double helix structures, with
reasonable arrangement of cutting tools and high milling and mixing accuracy.
*
The undercarriage system has two speed modes (high speed mode and low speed
mode); it adopts dual full-bridge driver and four-wheeled walking mode. Its
low-pres- sure wide-base big tread pattern tires have a good road holding
capacity.
*
Sprinkling system has the functions of sprinkling water. The sprinkling system
can manually and intelligently control flow of sprinkled medium.
*
Automatic depth control: built- in sensor of hydraulic cylinder is used for detection,
and milling depth can be displayed on display.
*
The intelligent control system can achieve on-line display, fault diagnosis,
fault alarm, maintenance. hints and other advanced functions in working mode
and walking mode; at the same time, various data can be directly read through
display.
*
Braking system: pneumatic brake, realizing the service brake and parking brake
functions of the machine.
*
The cab can slide to left and right, and has wide vision.
*
Lighting system is, used for illumination at night, and can bring good illumination
at the back of machine, in cab, on work edge and in front of machine.
Item |
Unit |
XLZ2303 |
Milling
width |
mm |
2300 |
Maximum
milling depth |
mm |
400 |
Cutter
spacing |
mm |
17 |
Diameter of
milling wheel (with cutter) |
mm |
1380 |
Manufacturer |
Imported Cummins |
|
Cooling
type |
Water-cooling |
|
Model |
QSX15 |
|
The
quantity of cylinder stator |
6 |
|
Rated power |
kW |
447 |
Engine
speed |
rpm |
2100 |
Oil
consumption: Full load |
kg/h |
98.3 |
Working
speed |
km/h |
0-2.5 |
Traveling
speed |
km/h |
0-10 |
Theoretical
gradeability (working gear) |
% |
40 |
Ground
clearance |
mm |
350 |
Front axle
load |
kg |
21000 |
Rear axle
load |
kg |
10000 |
Shipping
weight |
kg |
29500 |
Working
weight |
kg |
/ |
Fuel tank |
L |
1000 |
Hydraulic
oil tank |
L |
400 |
Water tank |
L |
750 |
Voltage of
electric system |
V |
24 |
Machinery(length*width*height) |
mm |
10193x3161x3450 |
