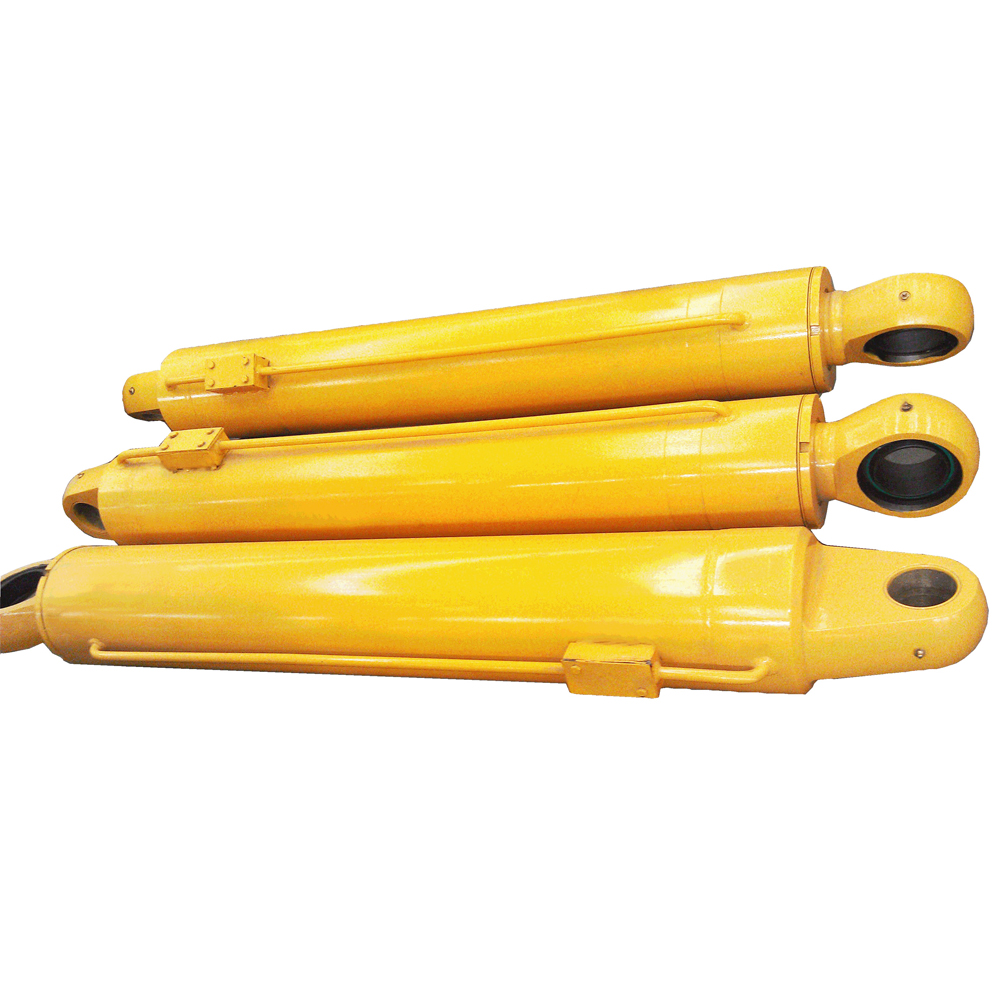

Piling Machinery Cylinder

Piling machinery has bad work environment and large impact vibration in the process of construction, so it has high requirement for of higher reliability of cylinder, our company has rich experiences in the research and development and manufacturing of such products, and it can fully meet the need of its high reliability, especially for the complicated working conditions of rock work of rotary drilling rig.

Product Features:

1. It adopts new anti-looseness structure with independent intellectual property rights to make the work operation have smooth running and safety, and high reliability;

2. It adopts special active dust prevention and scraping mud structure to effectively improve the service life of the cylinder;

3. It adopts high-strength cold drawn materials researched and developed independently, which is suitable for pressure cylinder with impact load and other special conditions.

Application:

Rotary drilling rig; diaphragm-wall grab; double wheels trench cutter

Product Parameters:

Main Item		Parameters	Unit	Supporting Scope
Cylinder Diameter		90 - 250	mm	100-500KNm Torque Series Rotary Drilling Rig
Rod Diameter		60 - 160	mm
Stroke		600 - 6000	mm
Working Pressure		25 - 35	MPa
Output Force	Thrust	≤ 1300	KN
	Pull	≤ 730	KN
Working Temperature		-40 - 80	℃
