XCMG Official NXG5650DTS 40m3 Water Tank truck for sale
Specifications
- Weight:25000.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

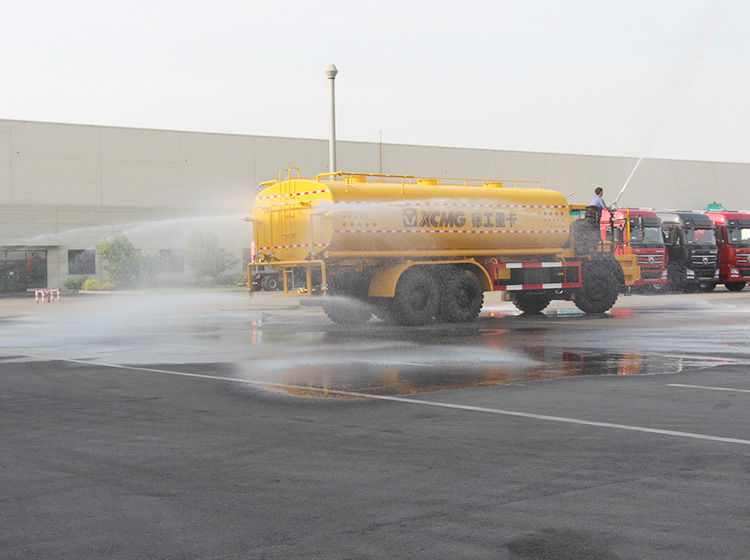

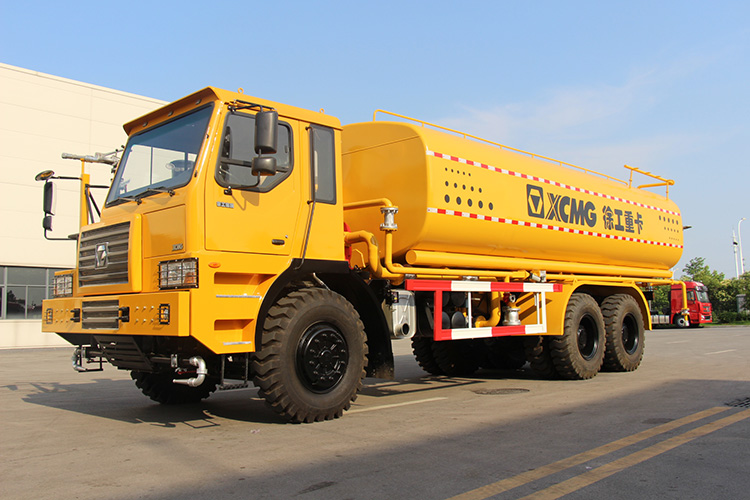

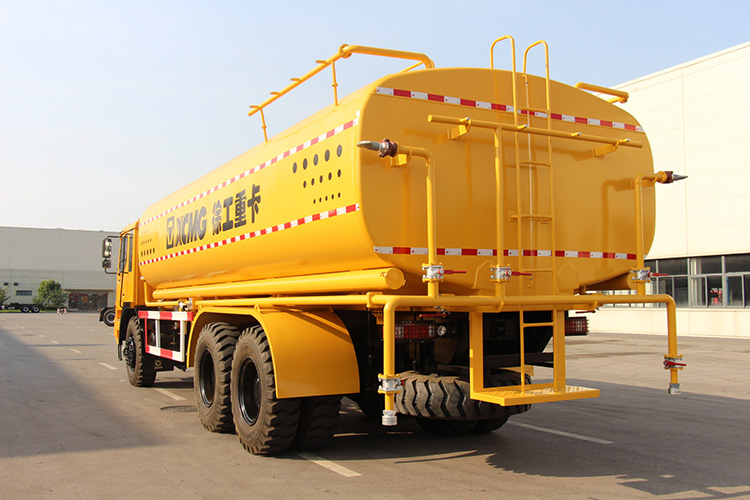

XCMG Official NXG5650DTS 40m3 Water Tank truck.
* According to each of the engine torque characteristic curve, perfectly match the different types of Fast manual gearbox, Allision automatic gearbox, to protect the most energy rationalization output, the vehicle has an excellent starting ability, climbing ability.
* Optimized arrangement of the traditional system architecture, reducing the loss of energy transfer process to ensure the kinetic energy efficient, rapid transmission.
* Using the unique steering and steering follower, the steering mechanism. Steering light, the failure rate lower.
* Dual-circuit brake system equipped with high pressure geography accumulator volume increases, the brake pressure increasing 25% to 1 Mpa, shorten braking distance.
|
Dimensions(mm) |
|
|
Water tank body size (length×width×height) |
8000×3200×1880 |
|
Cargo thickness |
8mm |
|
Tank |
40m³ |
|
Wheelbase |
5300+1560 |
|
Min. ground clearance |
380 |
|
Weight(kg) |
|
|
Kerb mass |
25000 |
|
Rated loading capacity |
40000 |
|
Gross vehicle weight |
65000 |
|
Performance |
|
|
Max. travel speed |
50 km/h |
|
Min. turning Radius |
12m |
|
Max. gradeability |
40% |
|
Engine |
|
|
WD12G375E211 6 in-line, four stroke, water-cooled, omega type combustion chamber, waste gas turbocharged and inter-cooled |
|
|
Rated output power |
375HP |
|
Displacement |
11596ml |
|
Unilateral cabin, the biggest overturn angle 40° |
|
|
Transmission |
|
|
Type |
Fast 9JSD180 , 9 forward 1 reverse |
|
Steering |
|
|
Power-steering system + aided steering |
|
|
Front axle |
|
|
Pengxiang 13T |
|
|
Rear axle |
|
|
Pengxiang 25T |
|
|
Brakes |
|
|
Service brake |
dual circuit compressed air brake |
|
Parking brake: |
spring energy operating on rear wheels |
|
Tyres |
14.00-24 |
|
Electric System |
|
|
Negative grounded |
|
|
Operating voltage |
24V |
|
Alternator |
70A/28V |
|
Batteries |
6-QAW-180DMF |
|
Fuel tank |
|
|
Capacity |
400L |
