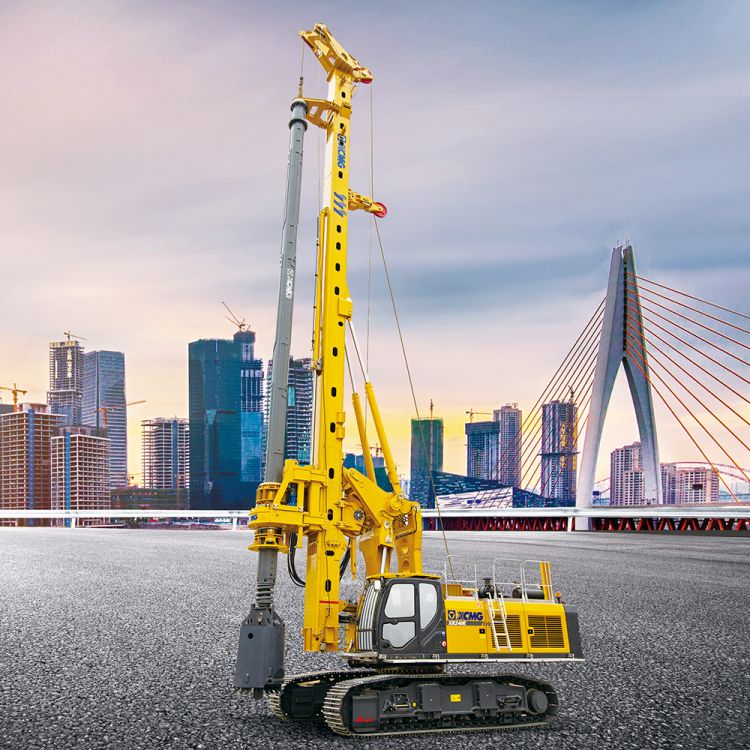

XCMG Official Multi-function Rotary Drilling Rig XR240E (Euro Stage IV) for sale
.jpg)
Summary
- Certification:CE/ISO9001
- Power(W):265kW
- Model Number:XR240E
- Brand Name:XCMG
- Place of Origin:China
Specifications
- Weight:82000.000kg
- Condition:New
- Moving Type:Crawler
- Max. Drilling Diameter:Φ22OOmm(Crowd Cylinder)/Φ2OOOmm(Crowd Winch)
- Max. Drilling Depth:70m
- Rated power:265kw
- Tank volume:580L
- Max. torque:240kN.m
- speed:7-30r/min
- Overall working height:22.7m
- Overall working weight:82t
- Crawler width:3250-4400mm
- Shoes width:800mm
- Shoes length:5715mm
- Driving force:485kN.m
- Travel speed:0-1.8km/h
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

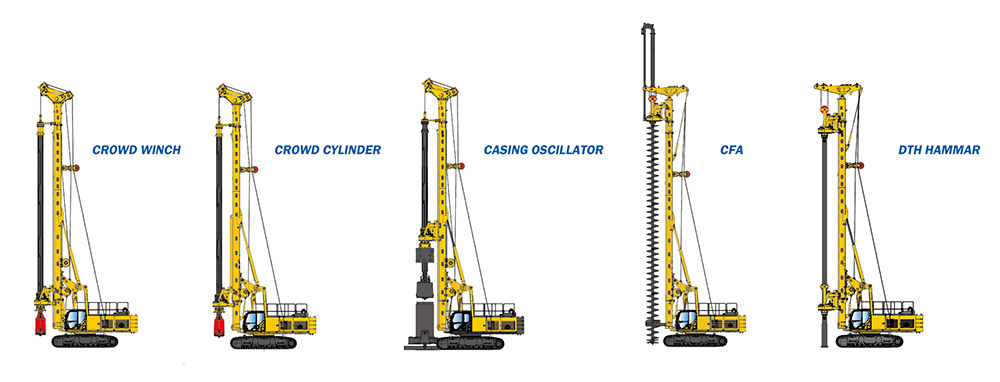

As
a multi-function machine, it can realize the quick switching of functions such
as cylinder pressurization, crowd winch pressurization, oscillator, CFA, and
dual power head. Meet more different construction needs.
The
capacity of rotary drive and main winch is increased by 20% and the work
efficiency is higher
The
rotary drive can be equipped with a torque multiplier (optional).The casing
drive torque is up to 360kN-m and the casing construction ability is stronger.
The
main and auxiliary winches both adopt single-layer rope technology. The service
life of the wire rope is 2〜4 times longer than
that of the multi-layer rope and the cost is lower.
The
double jib parallelogram luffing mechanism has a large support angle and a 16%
increase in the support range. The operation a more stable.
The
hydraulic system adopts negative flow control technology which has a fast
response and good control performance.
The
independent high-power rate temperature-controlled hydraulic oil cooler is
suitable for high-temperature construction and can adjust fan speed with
temperature changes.
Intelligent
control system can automatically adjust and display the verticality of mast,
automatically slew and slag discharge, CFA model automatically lifting concrete
pouring and pile type display. The system uses bus panel design to prevent
misoperation.
.jpg)
|
Item |
Unit |
Parameters |
|
|
Working capacity |
Max diameter |
mm |
Φ22OOmm(Crowd Cylinder) |
|
Φ2OOOmm(Crowd Winch) |
|||
|
Max depth |
m |
70 |
|
|
Engine |
Model |
- |
Volvo TAD1171VE |
|
Rated power |
kw |
265 |
|
|
Tank volume |
L |
580 |
|
|
Rotary drive |
Max torque |
kN.m |
240 |
|
Speed |
r/min |
7-30 |
|
|
Working condition |
Overall working height |
m |
22.7 |
|
Overall working weight |
t |
82 |
|
|
Crawler |
Crawler width |
mm |
3250-4400 |
|
Shoes width |
mm |
800 |
|
|
Shoes length |
mm |
5715 |
|
|
Driving force |
kN.m |
485 |
|
|
Travel speed |
km/h |
0-1.8 |
|
|
Mast |
Lateral |
° |
4 |
|
Forward |
° |
5 |
|
|
Crowd cylinder |
Max crowded force |
kN |
210 |
|
Max extraction force |
kN |
220 |
|
|
Stroke |
mm |
5000 |
|
|
Slow speed |
m/min |
5.8 |
|
|
High speed |
m/min |
12 |
|
|
Crowd winch (optional) |
Max crowded/ extraction force |
kN |
250/250 |
|
Stroke |
m |
13 |
|
|
Slow speed |
m/min |
7 |
|
|
High speed |
m/min |
30 |
|
|
Diameter of ropes |
mm |
24 |
|
|
Main winch |
Max extraction force |
kN |
240 |
|
Speed |
m/min |
0-70 |
|
|
Diameter of ropes |
mm |
32 |
|
|
Auxiliary winch |
Max extractio 门 force |
kN |
80 |
|
Speed |
m/min |
0-70 |
|
|
Diameter of ropes |
mm |
20 |
|
|
Hydraul c system |
Max flow |
L |
2x280+90 |
|
Max working pressure |
Mpa |
34 |
|
