XCMG Official Manufacturer XGC55 Crawler Crane for sale
Summary
- Model Number:XGC55T
- Brand Name:XCMG
- Place of Origin:China
- Max. Lifting Height:10.9m
- Max. Lifting Load:55t
- Rated Lifting Moment:2116.8kN·m
- Rated Loading Capacity:55t
- Application:Construction
- Certification:CE/ISO9001
Specifications
- Weight:63223.000kg
- Condition:New
- Moving Type:Crawler
- Width of track shoe:760mm
- Travel speed with no load:3km/h
- Min. clearance from the ground:304mm
- Max. gradeability:0.45
- Ground pressure:0.077MPa
- Rated power of engine:164kw
- Hydraulic tank capacity:900L
- Min. rated radius:3m
- Main boom hoisting time:60s
- Max. slewing speed:2r/min
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

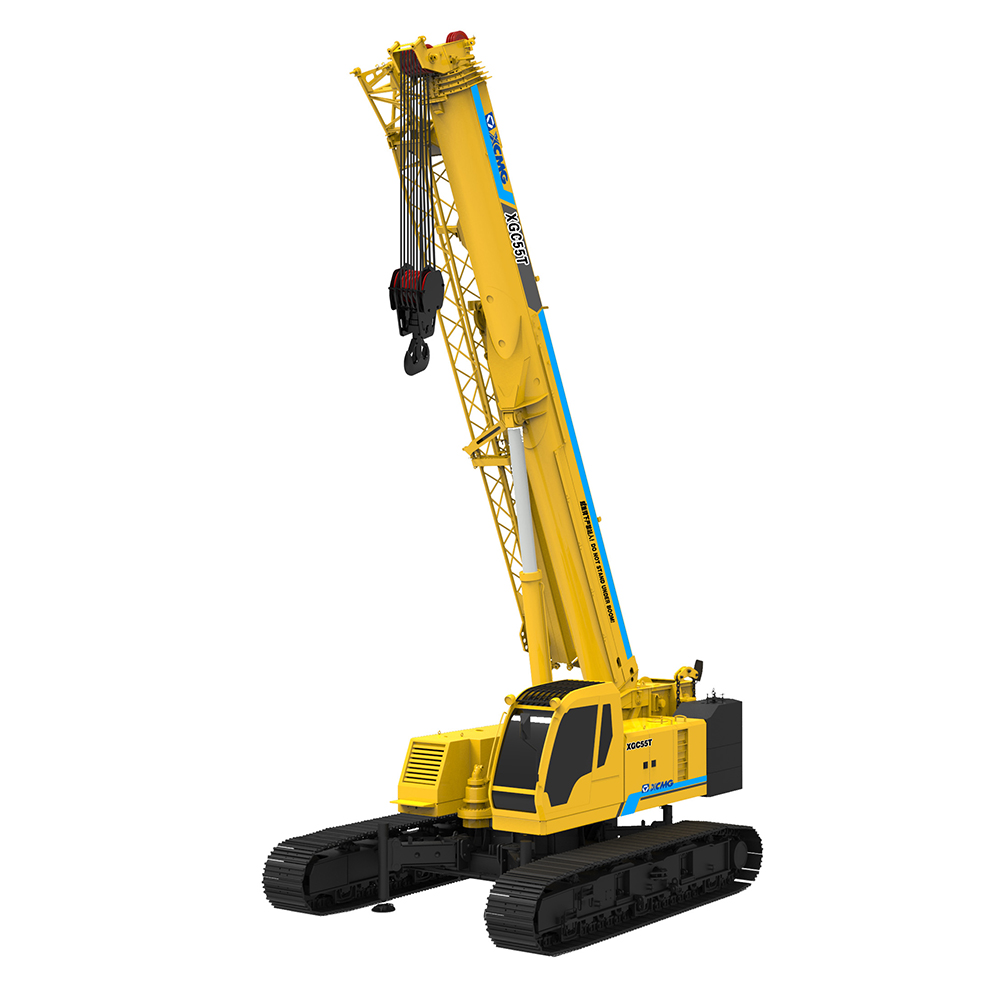

XGC55T telescopic crawler crane
The max rated lifting capacity of XGC55T telescopic crawler crane is 55t, with five telescopic boom sections, 41m fully-extended boom (10.6～41m), and 9.5～16m jib. Its boom length can fulfill various working radius demands. Telescoping crawler track, not only meets the high stability requirement of lifting operation, but also the outline dimension requirement for overall crane transportation.
|
Item |
Unit |
Parameter value |
|
Parameter Item |
- |
XGC55T |
|
Dimension parameter |
|
* |
|
Overall crane length |
(mm) |
12719 |
|
Overall crane width(extend/retract) |
(mm) |
4800/2980 |
|
Overall crane height |
(mm) |
3223 |
|
Center distance between drive roller and driven roller |
(mm) |
5278 |
|
Crawler shoe width |
(mm) |
760 |
|
Weight parameter |
|
* |
|
Total mass in travel state |
（kg） |
63223 |
|
Travel parameter |
|
* |
|
Travel speed with no load |
(km/h) |
3 |
|
Travel speed with full load |
(km/h) |
1.5 |
|
Min. ground clearance |
(mm) |
304 |
|
Max. grade ability |
(%) |
45 |
|
Ground pressure |
(MPa) |
0.077 |
|
Power parameter |
|
* |
|
Noise near ear（dB） |
(A) |
80 |
|
Engine model |
- |
QSB6.7 |
|
Engine rated power |
(kw) |
164 |
|
Engine rated speed |
(r/min) |
2200 |
|
Engine emission standard |
- |
(non-road) EU Stage IIIA |
|
Volume parameter |
|
* |
|
Hydraulic oil tank volume |
(L) |
900 |
|
Fuel tank volume |
(L) |
550 |
|
Main perdormance parameter |
|
* |
|
Max. rated lifting capacity |
(t) |
55 |
|
Min. rated radius |
(m) |
3 |
|
Max. load moment--basic boom |
(kN·m) |
2116.8 |
|
Max. load moment--longest boom |
(kN·m) |
1207 |
|
Lifting height--basic boom |
(m) |
10.9 |
|
Lifting height--longest boom |
(m) |
41.4 |
|
Lifting height--longest boom+jib |
(m) |
55 |
|
Boom length--basic boom |
(m) |
10.6 |
|
Boom length--longest boom |
(m) |
41 |
|
Boom length--longest boom+jib |
(m) |
57 |
|
Jib offset angle |
(°) |
0,15,30 |
|
Working speed |
|
* |
|
Boom raising time |
(s) |
60 |
|
Boom fully-extending time |
(s) |
110 |
|
Max. slewing speed |
(r/min) |
2 |
|
Hoisting speed(no load, the 4th layer) main hoist system |
(m/min) |
140 |
|
Hoisting speed(no load, the 4th layer) aux. hoist system |
(m/min) |
140 |
