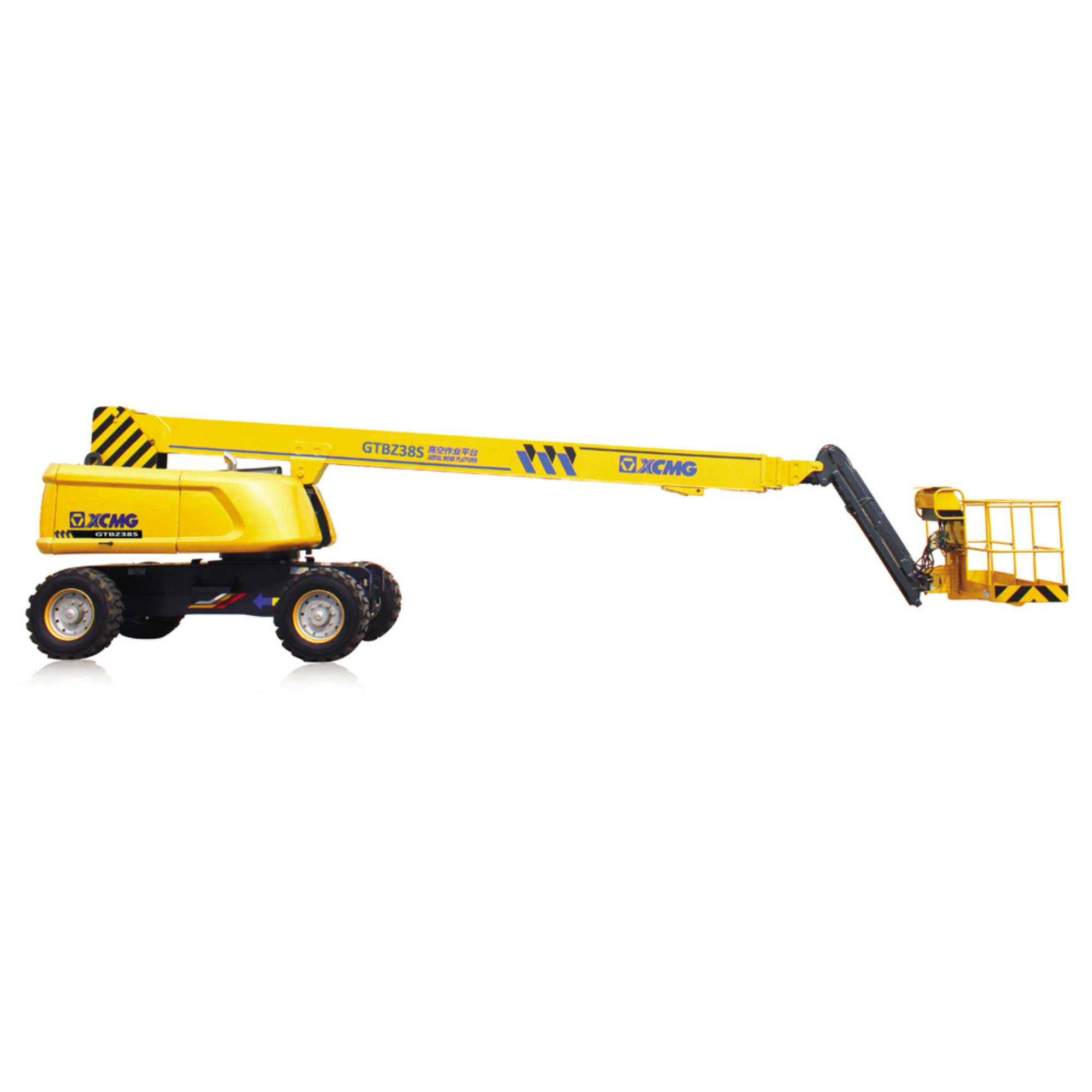

XCMG Official Manufacturer 38m Telescopic Aerial Work Platform GTBZ38S
Summary
- Brand:XCMG
- Place of Origin:China
Specifications
- Weight:20600.000kg
- Condition:New
- Moving Type:Other
- Overall Length(mm):14060
- Overall Width(mm):13800
- Overall Height(mm):3000
- Wheel Base(mm):3800
- Maximum Working Height(m):39.9
- Maximum Platform Height(m):38.2
- Maximum Working Range(m):23.9
- Maximum Load Capacity（kg）:230/340
- Boom Luffing Range(°):-7～+75
- Crank Arm Luffing Range(°): -60～+70
- Rotation Angle of Rotating Platform(°):360
- Maximum Tail Wagging(mm):2085/1430
- Platform Size(mm):2400*900
- Rotation Angle of Platform(°):180
- Total Weight(kg):20600
- Maximum Travel Speed(km/h):5
- Minimum Turning Radius(m):10.8/6.8（Two-turn） 5.8/6.8（Two-turn）
- Minimum Ground Clearance(mm):320
- Maximum Grade Ability(%):40
- Tire Specification:445/50D710
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
This telescoping boom aerial work platform features outstanding working performance and four-wheel drive,with the gradeability reaching industry’s advanced level. With double working range curve, its working height, range, and load are leading the industry. Featuring outstanding working performance and high safety and reliability, this machine can meet the needs of the industry users, including building construction, bridge and equipment maintenance, shipyard,petrochemical, and leasing industries.
1、Flexible Working Mobility
This product features outstanding horizontal extending capacity compared with products of same class. The installed curved boom works with the telescoping main boom to increase the horizontal reach and 130? elevation scope, featuring flexible working mobility.
2、All-Terrain Adaptive Technology
The four-wheel drive features high drive capacity.
The ultra-wide off-road foam rubber tires feature large ground area. The axle balance control system can automatically adjust the axle status based on the change of terrain to realize powerful ground adaptability for the machine to drive on cement, asphalt, and soft roads and diversified rugged mountain roads.
3、Flexible Driving and Steering Mobility
The electronically controlled four-wheel steering control technology can realize four steering modes, namely front/rear axle independent steering mode, all-wheel steering mode, and crabwalk steering mode, featuring flexible steering mobility.
| Itmm | Parameter |
| Overall Length(mm) | 14060 |
| Overall Width(mm) | 13800 |
| Overall Height(mm) | 3000 |
| Wheel Base(mm) | 3800 |
| Maximum Working Height(m) | 39.9 |
| Maximum Platform Height(m) | 38.2 |
| Maximum Working Range(m) | 23.9 |
| Maximum Load Capacity（kg） | 230/340 |
| Boom Luffing Range(°) | -7～+75 |
| Crank Arm Luffing Range(°) | -60～+70 |
| Rotation Angle of Rotating Platform(°) | 360 |
| Maximum Tail Wagging(mm) | 2085/1430 |
| Platform Size(mm) | 2400*900 |
| Rotation Angle of Platform(°) | 180 |
| Total Weight(kg) | 20600 |
| Maximum Travel Speed(km/h) | 5 |
| Minimum Turning Radius(m) | 10.8/6.8（Two-turn） |
| 5.8/6.8（Two-turn） | |
| Minimum Ground Clearance(mm) | 320 |
| Maximum Grade Ability(%) | 40 |
| Tire Specification | 445/50D710 |
| Engine Model | Perkins 1104D-44T |
| Cummins B3.3-85HP | |
| Rated Power of Engine(kW/(r/min)) | 55.5/2400 |
| 63/2600 |
