XCMG Official Manufacturer Water Well Drilling Rig XSL7/350 for sale, MACHMALL

Engineering & Construction Machinery > Piling Machinery > Water Well Drilling Rig

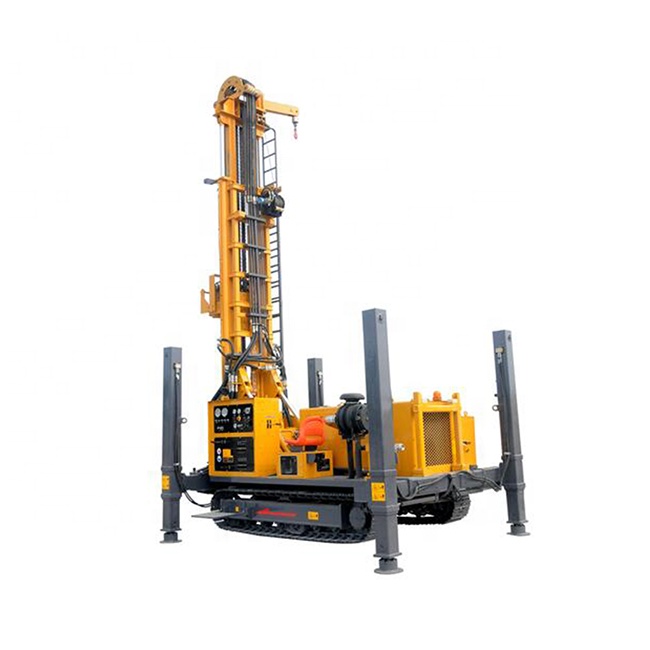

XCMG Official Manufacturer Water Well Drilling Rig XSL7/350 for sale

FOB Price: $68900.00-$68900.00

View All >

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG Official Manufacturer Water Well Drilling Rig XSL7/350 for sale

Quantity:

- + /EA

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Certification

Dimension(L*W*H)

Weight

Power(W)

Voltage

Usage

Model Number

Brand Name

Place of Origin

Power Type

Type

Working Dimension(L*W*H)

Transportation Dimension(L*W*H)

Engineering & Construction Machinery

CE/ISO9001

14 t

XSL7/350

XCMG

China

5130×3250×10500 mm

6400×2250×2860 mm

+ Add a Product

Summary

Certification:CE/ISO9001
Weight:14 t
Model Number: XSL7/350
Brand Name:XCMG
Place of Origin:China
Working Dimension(L*W*H):5130×3250×10500 mm
Transportation Dimension(L*W*H):6400×2250×2860 mm

Specifications

Weight:14000.000kg
Condition:New
Moving Type:Wheel
Drilling depth:700(Φ102) m
Max. diameter of working floor:Φ500 mm
Max. lifting capacity:350 kN
Max. feeding capacity:150 kN
Max. lifting speed:32 m/min
Max. feeding speed:60 m/min
Stroke:7000 mm
Max. torque of Top drive:12200/15000 N·m
Max. speed of Top drive:180/190 r/min
I.D of Top drive:Φ55 mm
Floating distance of Top drive:—
Max. tilting angle of Top drive:—
Deck engine Type:CUMMINS QSB5.9-C210
Deck engine Rated power:154 kW
Hoisting capacity of Main winch:30 kN
Hoisting capacity of Tool winch:15 kN
Max. breakout torque:36000 N·m
Vise clamping range:Customized
Max. flow of Mud pump:—
Max. pressure of Mud pump:—
Max. flow of Foam pump:—
Max. pressure of Foam pump:—
I.D of Mud pipe:Φ55 mm
Max. pressure of Mud pipe:15 Mpa
Chassis Drive mode:Crawler chassis
Chassis Rated power:—
Chassis Highest speed:3 km/h
Chassis Max. climbing gradient:39%
Weight:14 t

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

XCMG Official Manufacturer Water Well Drilling Rig XSL7/350 for sale

XE335C Crawler Excavator

1、The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2、The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3、The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4、The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.

Description				Unit	Parameter value
Operating weight				kg	33800
Bucket capacity				m³	1.4
Engine		Model		Engine	ISUZU AA-6HK1XQP
		Style	Direct injection	---	√
			Four strokes	---	√
			Water cooling	---	√
			Turbo-charging	---	√
			Air to air intercooler	---	√
		No. of cylinders		---	6
		Output power		kW/ r/min	190.5/2000
		torque/speed		N.m	872.8/1700
		Displacement		L	7.79
Main performance		Travel speed（H/L)		km/h	5.5/3.3
		Rotating speed		r/min	9.7
		Gradeability		°	≤35
		Ground pressure		kPa	66
		Bucket digging force		kN	263
		Arm digging force		kN	225
		Maximum traction		kN	261
Hydraulic system		Main pump		--	2
		Rated flow of main pump		L/min	2×280
		Pressure of prime valve		MPa	34.3/37
		Pressure of travel system		MPa	34.3
		Pressure of swing system		MPa	26.5
		Pressure of pilot system		MPa	3.9
Oil Capacity		Fuel tank capacity		L	630
		Hydraulic tank capacity		L	350
		Engine oil capacity		L	28
Appearance size		Overall length		mm	11388
		Overall width		mm	3190
		Overall height		mm	3515
		Width of platform		mm	2950
		Length of crawler		mm	4725
		Overall width of chassis		mm	3190
		Width of crawler		mm	600
		Wheel base of crawler		mm	3183
		Crawler gauge		mm	2590
		Clearance under counterweight		mm	1700
		Min. ground clearance		mm	495
		Min. tail swing radius		mm	3570
Working scope		Max. digging height		mm	10074
		Max. dumping height		mm	6898
		Max. digging depth		mm	6972
		Max. digging depth at the range of level 8 feet		mm	6728
		Max. vertical wall digging depth		mm	5366
		Max. digging reach		mm	10650
		Min. swing radius		mm	4424
Worker	Standard	Length of boom		mm	6400
		Length of arm		mm	2670
		Bucket capacity		m³	1.4
		Length of arm		m³	2900
		Bucket capacity		m³	1.6 /1.4
