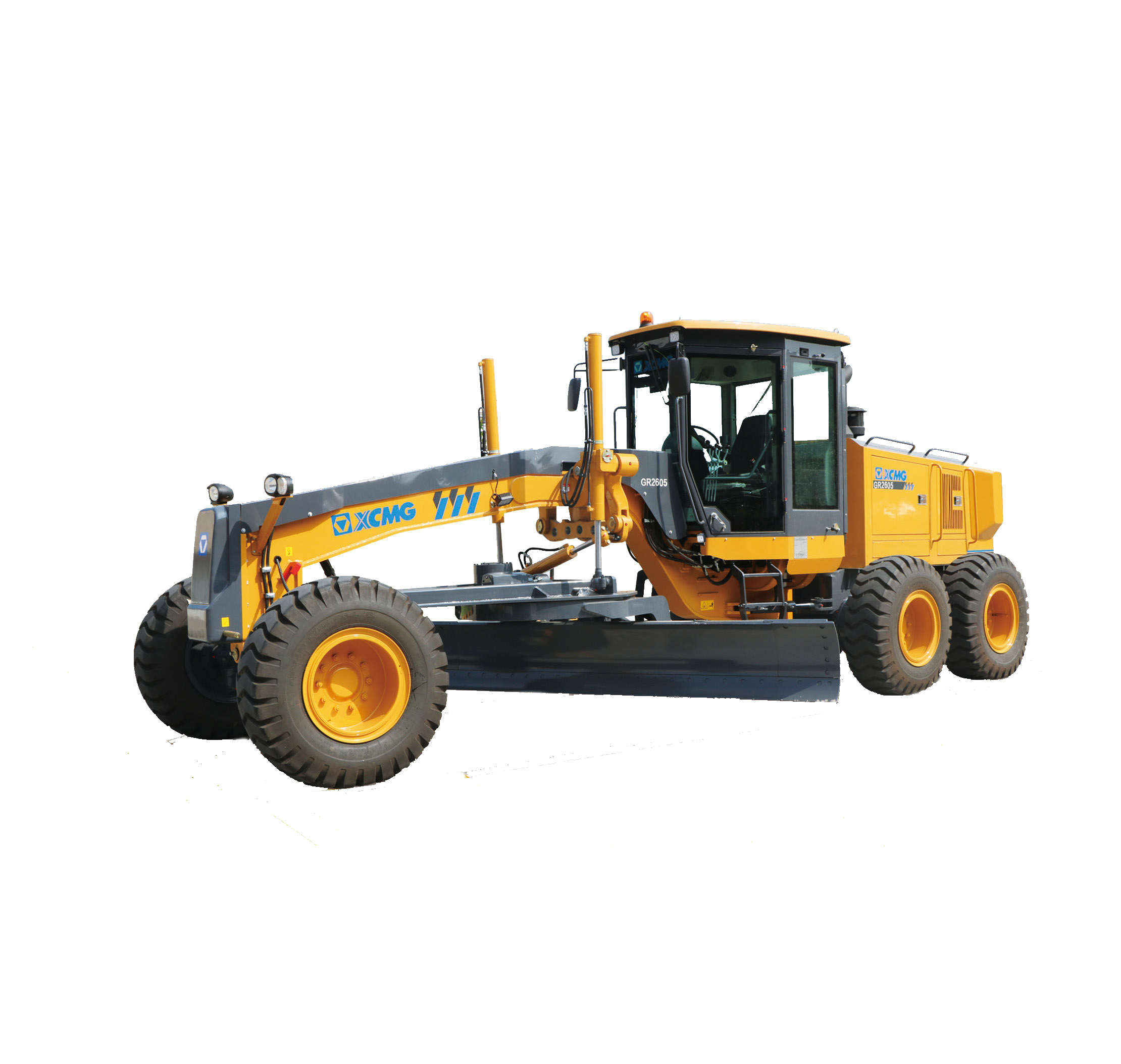

XCMG Official GR2605II Motor Grader for sale
![](/app/topc/statics/images/close.png)
![](/app/topc/statics/images/close.png)
Summary

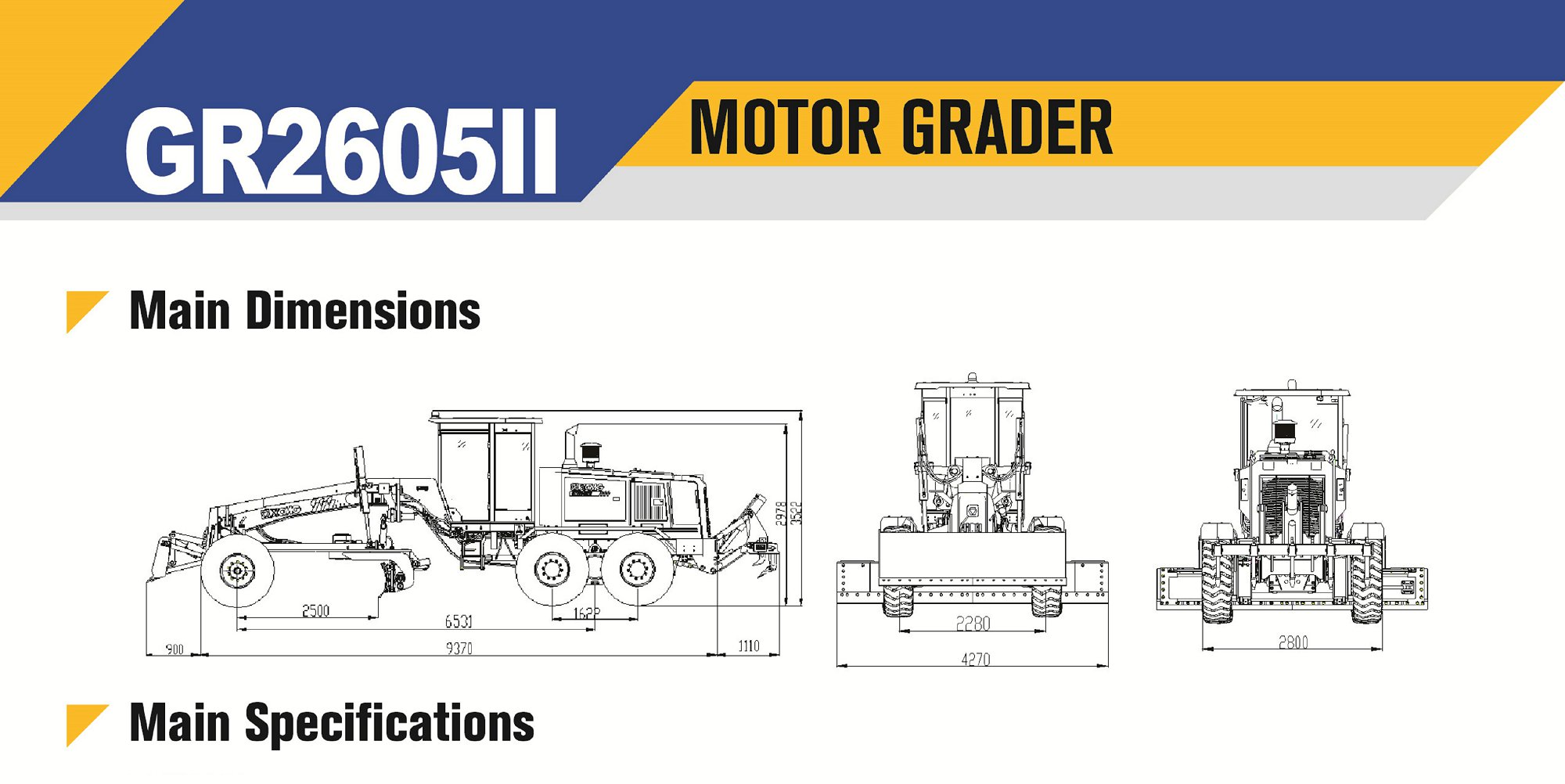

- Dimension(L*W*H):9370 x 2800 x 3522mm
- Weight:19000kg
- Model Number:GR2605II
- Brand Name:XCMG
- Place of Origin:China
- Reverse Speed(km/h):5、11、26km/h
- Forward Speed(km/h):5、8、11、19、26、47km/h
- Certification:Can provide relevant certification
Specifications
- weight:19000.000kg
- Condition:New
- Moving Type:Wheel
- Engine model:QSB6.7
- Rated power/speed:194kW/2200rpm
- Tire specification:20.5-25
- Ground clearance:620mm
- Space of front and rear axles :6531mm
- Tractive effort f=0.75:≥99kN
- Working system pressure:22MPa
- Maximum steering angle of front wheel:±48°
- Minimum turning radius:7.9m
- Maximum lift height:480mm
- Maximum shoveling depth:715mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
|
Item |
Unit |
GR2605II |
|
Basic parameters |
Engine model |
|
QSB6.7 |
|
Rated power/speed |
kW/rpm |
194/2200 |
||
Overall dimension(standard) |
mm |
9370 x 2800 x 3522 |
||
Total weight(standard) |
kg |
19000 |
||
Tire specification |
|
20.5-25 |
||
Ground clearance |
mm |
620 |
||
Tread |
mm |
2280 |
||
Space of front and rear axles |
mm |
6531 |
||
Space of middle and rear wheels |
mm |
1622 |
||
Performance parameters |
Forward velocity |
km/h |
5、8、11、19、26、47 |
|
Reverse speed |
km/h |
5、11、26 |
||
Tractive effort f=0.75 |
kN |
≥99 |
||
Maximum gradeadbility |
% |
≥25 |
||
Inflation pressure of tires |
kPa |
350 |
||
Working system pressure |
MPa |
22 |
||
Transmission pressure |
MPa |
1.85-2.2 |
||
Working parameters |
Maximum steering angle of front wheels |
° |
±48 |
|
Maximum inclination angle of front wheels |
° |
±17 |
||
Maximum swing angle of front axle |
° |
±15 |
||
Maximum swing angle of balance box |
° |
front 10, rear 10 |
||
Maximum steering angle of frame |
° |
±20 |
||
Maximum turning radius |
m |
7.9 |
||
Blade |
Maximum lifting height |
mm |
480 |
|
Maximum shoveling depth |
mm |
715 |
||
Maximum lateral inclination angle |
° |
90 |
||
Cutting angle |
° |
29-69 |
||
Oil filling amount |
Slewing angle |
° |
360 |
|
Length x chord height |
mm |
4270 x 610 |
||
Coolant |
L |
50 |
||
Fuel tank |
L |
270 |
||
Engine |
L |
24 |
||
Transmission |
L |
38 |
||
Balance box |
L |
170 |
||
Drive axle |
L |
44 |
||
Hydraulic oil |
L |
190 |
