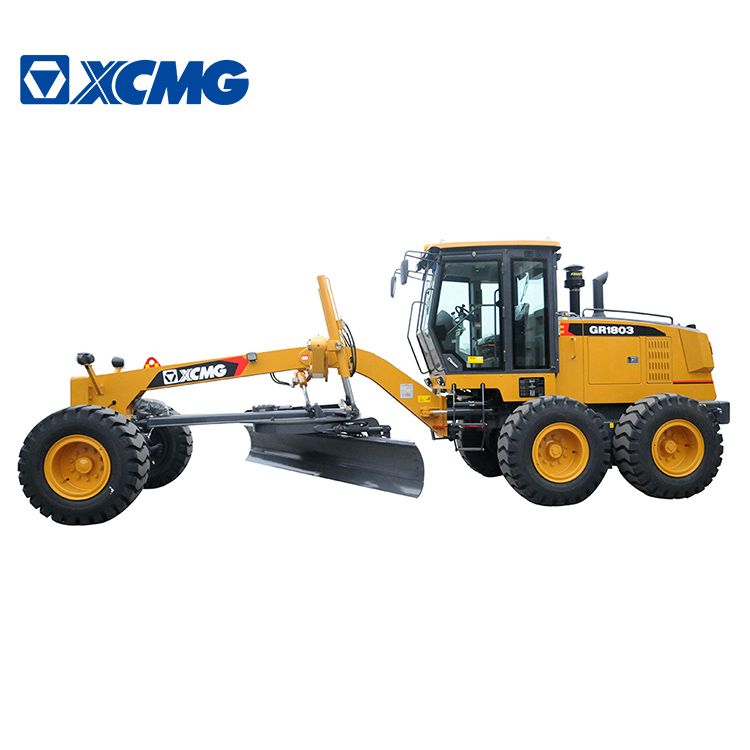

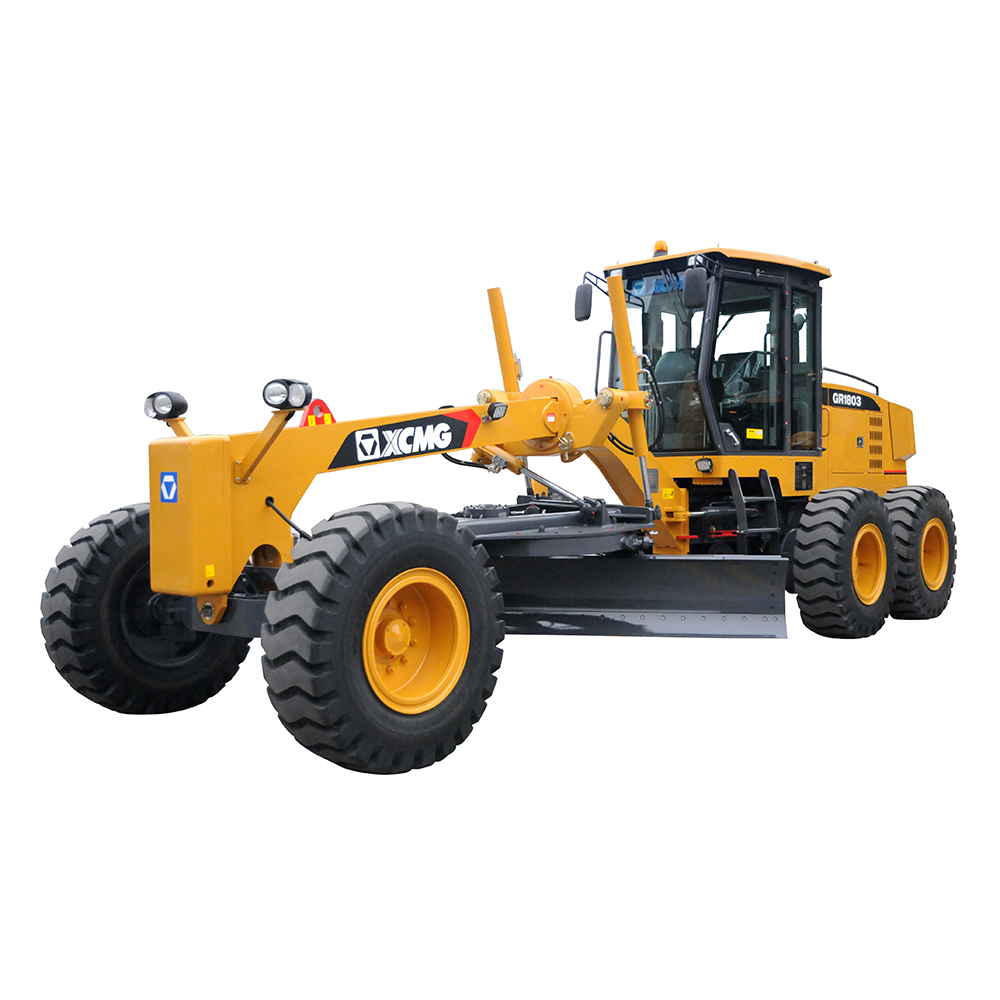

XCMG Official GR180 Motor Grader for Uzbekistan

.jpg)

Specifications
- Weight:15400.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
GR180 Motor Grader
1.Dongfeng Cummins
Engine, ZF Technology Gearbox, and XCMG Drive Axle make the drive system power
matching more reasonable and reliable.
2.Double-circuit
hydraulic brake system makes the brake more reliable and stable;
3.Steering to the load
sensing system, the main hydraulic components adopt international support to
ensure the stability and reliability of the system;
4.Use XCMG special
enhanced work devices;
5.The blade body adopts
adjustable large chute and double slide mechanism, and the working blade adopts
high-strength and wear-resistant material;
6.Various options expand
the machine's performance and working range.
Description | Unit | Parameter value | |
Engine model | 6CTA8.3-C190-Ⅱ | ||
Rated power/speed | kW/rpm | 142/2200 | |
Overall dimension (standard) | 8900x2625x3420 | ||
Total weight (standard) | kg | 15400 | |
Tire specification | 17.5-25 | ||
Ground clearance (front axle) | mm | 430 | |
Tread | mm | 2156 | |
Space of front and rear axles | mm | 6219 | |
Space of middle and rear wheels | mm | 1538 | |
Forward velocity | km/h | 5/8/11/19/23/38 | |
Reverse speed | km/h | 5/11/23 | |
Tractive effort f=0.75 | kN | ≥79 | |
Maximum gradeability | % | ≥25 | |
Tire inflation pressure | kPa | 260 | |
Working system pressure | MPa | 18 | |
Transmission pressure | MPa | 1.3—1.8 | |
Maximum steering angle of front wheel | ±50° | ||
Maximum slant angle of front wheel | ±17° | ||
Maximum oscillating angle of front axle | ±15° | ||
Maximum oscillating angle of equilibrium box | Front15° Rear15° | ||
Maximum steering angle of frame | ±27° | ||
Minimum turning radius | m | 7.3 | |
Scrape knife | Maximum lift height | mm | 450 |
Maximum cutting depth | mm | 500 | |
Maximum tilt angle | 90° | ||
Cutting angle | 28°—90° | ||
Angle of revolution | 360° | ||
Length & chord height | mm | 3965x610 | |
Coolant | L | 50 | |
Fuel tank | L | 280 | |
Engine | L | 24 | |
Transmission | L | 38 | |
Drive axle | L | 28 | |
Balancing box | L | 46 |
