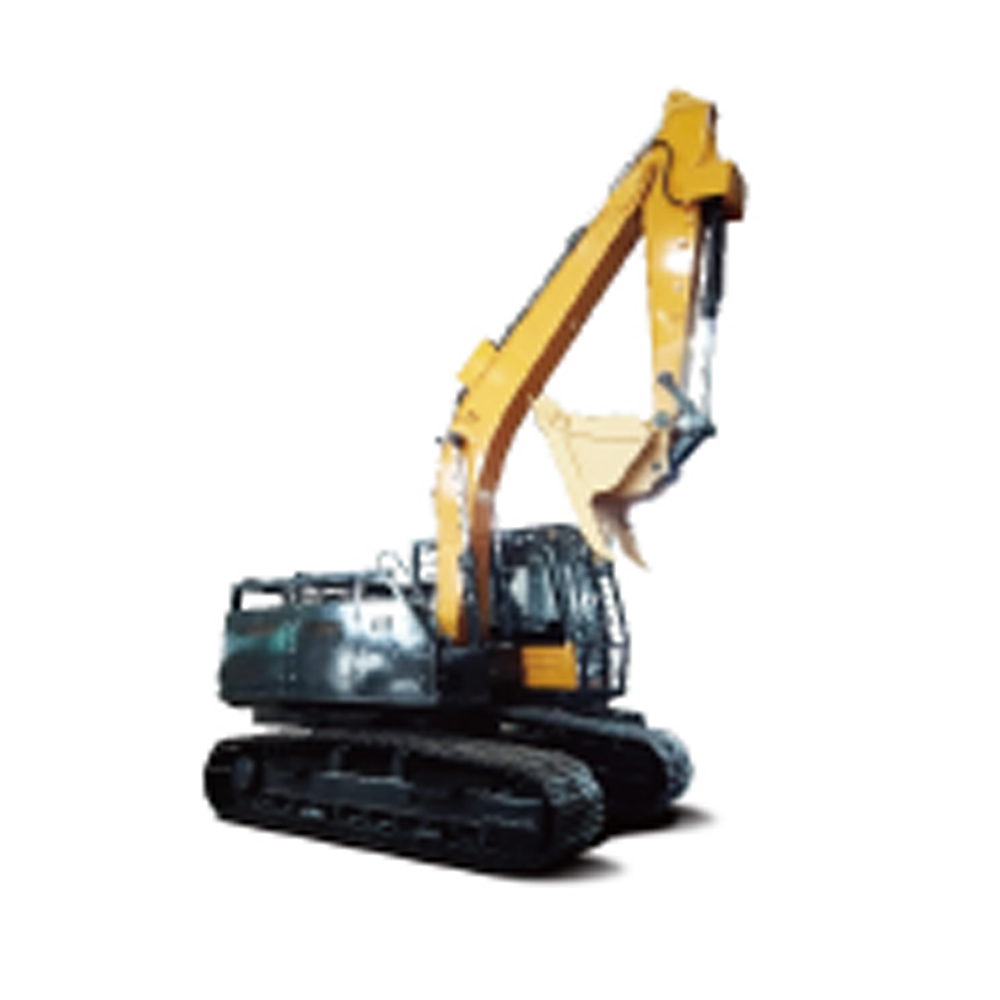

XCMG Official Felling Machine(Semi-automatic Head) XE210F(AFM60 FH) for sale
_1.jpg)
Summary
- Overall Dimension(W*H): 2990×2990 mm
- Weight:21286 kg
- Model Number: XE210F
- Brand Name:XCMG
- Place of Origin:China
- Certification:CE/ISO9001
Specifications
- Weight:21286.000kg
- Condition:New
- Moving Type:Crawler
- Operating weight:21286 kg
- Model of felling machine head:AFM60 FH
- Maximum felling diameter:80 cm
- Maximum sawing-off diameter:60 cm
- Weight of felling machine head:1400 kg
- Maximum output power:45 KW
- Engine model:CUMMINS QSB6.7
- Rated power/speed of Engine:116/2000 kW/(r/min)
- Maximum torque of Engine:618/1500 N.m
- Displacement:6.7 L
- Running speed:3.3/5.6 km/h
- Rotating speed:12.8 r/min
- Gradeability:70%
- Ground pressure:45.5 kPa
- Main pump:Two variable displacement plunger pumps and one gear pump
- Rated flow of main pump:2×211 L/min
- Pressure of main safety valve:31.4 Mpa
- Pressure of running system:34.3 Mpa
- Pressure of rotating system:28 Mpa
- Pressure of leading system:3.9 Mpa
- Capacity of fuel tank:380 L
- Capacity of hydraulic oil tank:245 L
- Slewing table width:2845 mm
- Minimum swing radius at rail:2750 mm
- Counterweight ground clearance:1065 mm
- Track wheelbase:3462 mm
- Track length:4255 mm
- Track gauge:2390 mm
- Track width:600 mm
- Minimum ground clearance:485 mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
Fellers are multi-step machines used for operations in felling areas, mainly for logging, pruning, bunching, skidding, bucking, handling and short-distance transportation. The feller of XCMG is mainly developed for the felling work characteristics and is widely used in North America, South America, Europe and Australia. It can combine single operations in the felling area which will be done by one or several machines to make felling construction more convenient and efficient. This can greatly reduce the tedious manual labor, shorten the production cycle, decrease the intensity of work, and bring high economic returns. Meanwhile, the use of enhanced get-off structure, get-on protection and dust-proof design greatly improves the service life and reliability of the whole machine while it is operated in forest. The bulletproof glass of the cab provides more comprehensive protection for the driver. The technological level and machine power of the product is a major breakthrough in the logging field.
