XCMG Official 54m Elevating Aerial Work Platform Fire Truck DG54C for sale
Summary
- Model Number:DG54C
- Brand Name:XCMG
- Place of Origin:Xuzhou,China
- Size:13500×2500×3995mm
- Max Work Height:54m
- Fuel Type:Diesel
- Tank Capacity:2500kg
- Horsepower:435hp
- Transmission Type:Manual
- Type:Aerial
- Drive Wheel:8×4
- Certification:ISO9001/CCC
Specifications
- Weight:40000.000kg
- Condition:New
- Moving Type:Other
- Rated flow rate: 50 L/s
- Rated pressure:1.7mpa
- Fire Monitor Model: 3578+1577, ps30-50d
- Rated flow rate: 50 L/s, 40 L/s
- Rated pressure:0.8mpa, 1.0mpa
- Range:55m
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

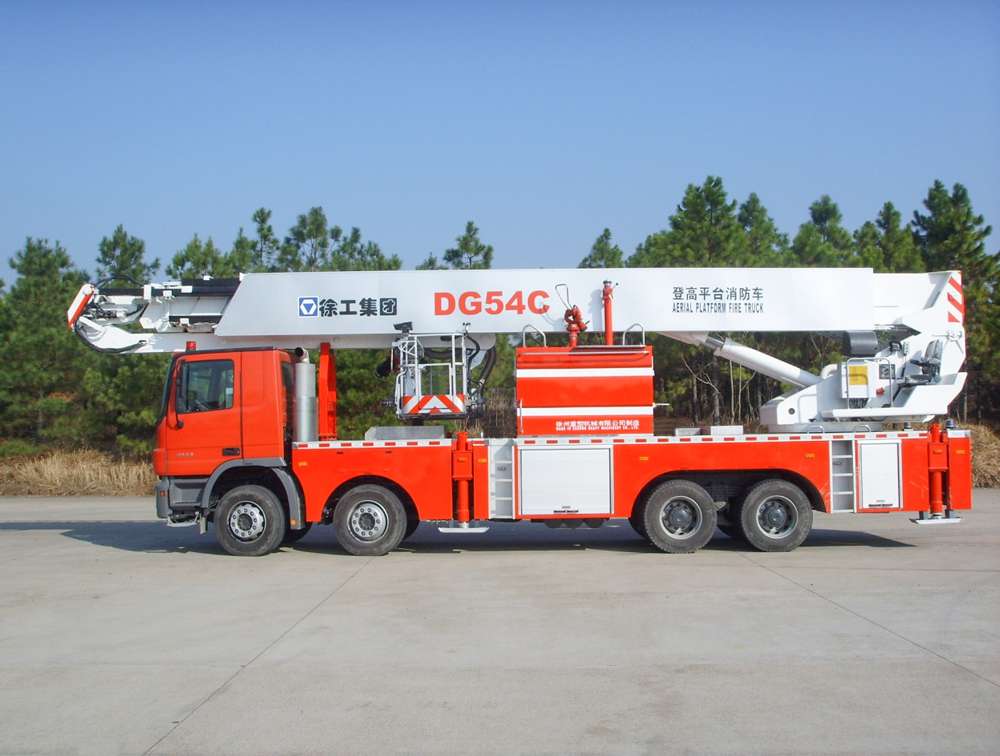

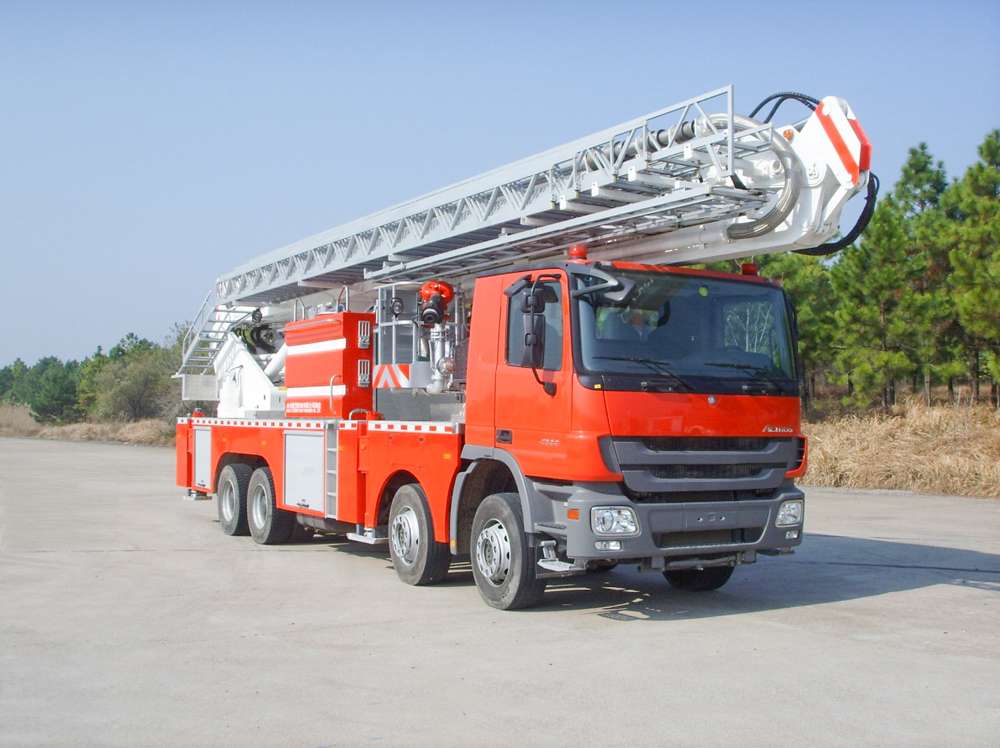

XCMG Official 54m Elevating Aerial Work Platform Fire Truck DG54C for sale
1. DG54C uses German Mercedes Benz Actros 4144/8×4 chassis and national-III emission standards, and has advanced performance, high trucking capacity, and full power reserves. Specific power 8 (320kw/40t)
2. The firefighting system is equipped with full functions.
1) Advanced system configuration:PSP1500 pump of American Darley and the platform water monitor is the 3578+5177 electronic-controlled fire monitor of American AKRON are adopted. The water pump is driven by the full power takeoff with reliable performance which is suitable for long-time operation.
2) Complete configuration of fire-fighting system: The liquid carrying capacity of the vehicle-mounted stainless steel tank is 3000kg, of which foam 450kg, water 2500kg, which can achieve the rapid fire-fighting operation. PS30/50D manual fire monitor is set at the top of tank, which may realize the low altitude fire-fighting operation.
3) The vehicle fire control system adopts intelligent control, electric operation, and the operation is simple and convenient. Fire main gun can provide 100 meters wireless remote control.
3. Based on the PLC and CAN bus distributed control technology, amplitude angle and extension, the vehicle uses new reliable detection technology and can achieve automatic leveling in lower structure, regional range control, platform load weighting, platform ultrasonic collision detection, and upper and lower structure posture dynamic monitoring. The human-computer interface provides rich information. The working platform leveling has good following character and operation in the upper structure is stable and non-collision.
4. The hydraulic system uses an LS load sensitive control system of dual variable piston pump and has good control performance.
Fire pump:
Rated flow rate: 50 L/s
Rated pressure: 1.7mpa
Fire Monitor:
Model : 3578+1577, ps30-50d
Rated flow rate: 50 L/s, 40 L/s
Rated pressure: 0.8mpa, 1.0mpa
Range: 55m, 55m
Main performance parameters of vehicle | |||
Overall dimensions:(L×W×H) | 13500×2500×3995mm | ||
Full load mass | 40000kg | ||
Maximum speed | ≥85km/h (electronic speed limit) | ||
Minimum turning diameter | ≤24m | ||
Approach angle | ≥18° | ||
Departure angle | ≥9° | ||
Maximum climbing ability | ≥25% | ||
Leg span | Longitudinal span | 6650mm | |
Lateral span | 6000mm | ||
Working platform load | 400kg | ||
Maximum working height | 54m | ||
Maximum working radius | 20m | ||
Arm support luffing angle | Telescopic boom -10°—83° The angle of bending boom and telescopic boom is 0°—175° | ||
Turning scope | 360°full-rotation | ||
Leg deployable time | ≤ 35s | ||
Time for boom raised maximum height and rotated 90° | ≤ 195s | ||
Maximum rotary speed | 0.5 - 1.5r/min | ||
Fire pump | Rated flow | 50 L/s | |
Rated pressure | 1.7 MPa | ||
Fire monitor | Type | 3578+1577 | PS30-50D |
Rated flow | 50 L/s | 40 L/s | |
Rated pressure | 0.8 MPa | 1.0 MPa | |
Range | 55m | 55m |
