XCMG Official 50ton Truck Crane QY50KA price for Sale, MACHMALL

Engineering & Construction Machinery > Engineering & Construction Crane > Truck Crane

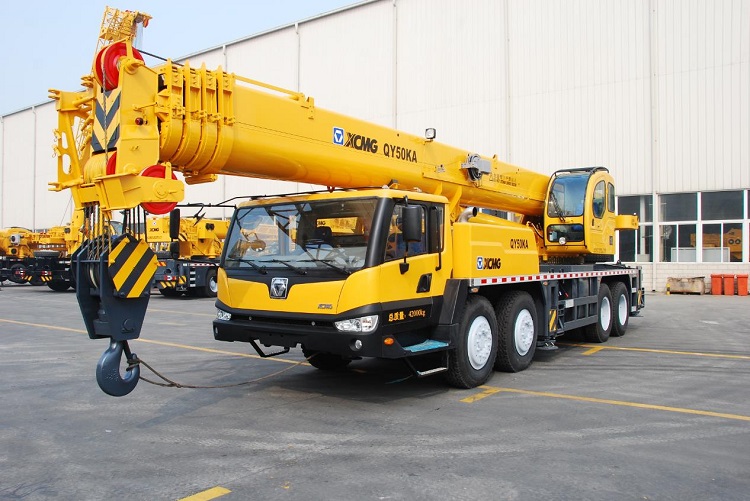

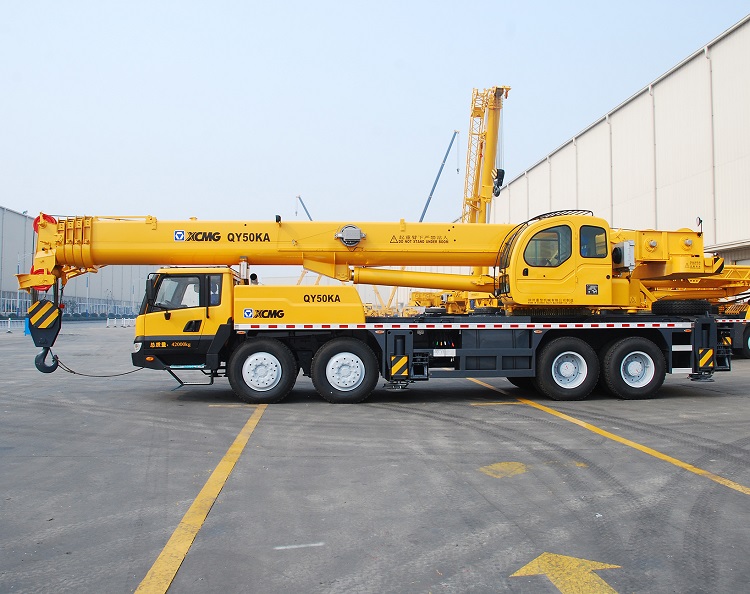

XCMG Official 50ton Truck Crane QY50KA price for Sale

View All >

Model： QY50KA

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG Official 50ton Truck Crane QY50KA price for Sale

Quantity:

- + /Unit

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

QY50KA

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Model Number

Brand Name

Place of Origin

Span

Max. Lifting Height

Max. Lifting Load

Rated Lifting Moment

Rated Loading Capacity

Application

Certification

Engineering & Construction Machinery

QY50KA

XCMG

China

Longitudinal6.1m/Lateral7.1m

58.1

50t

2009kN.m

50t

Construction Industry

ISO9001/CE

+ Add a Product

Summary

Model Number:QY50KA
Brand Name:XCMG
Place of Origin:China
Span:Longitudinal6.1m/Lateral7.1m
Max. Lifting Height:58.1
Max. Lifting Load:50t
Rated Lifting Moment:2009kN.m
Rated Loading Capacity:50t
Application:Construction Industry
Certification:ISO9001/CE

Specifications

Weight:42200.000kg
Condition:New
Moving Type:Wheel
Overall length:13930mm
Overall width:2780mm
Overall height:3630mm
Wheel base:2304+2075mm
Total vehicle mass in travel configuration:42200kg
Engine Model:WD615.338
Engine rated power:276/2200kw/(r/min)
Engine rated torque:1500/1300-1600N.m/(r/min)
Max. travel speed:85km/h
Min. turning diameter:24m
Min. ground clearance:327mm
Max. grade ability:0.42
Exterior noise level during acceleration traveling:≤88dB(A)

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

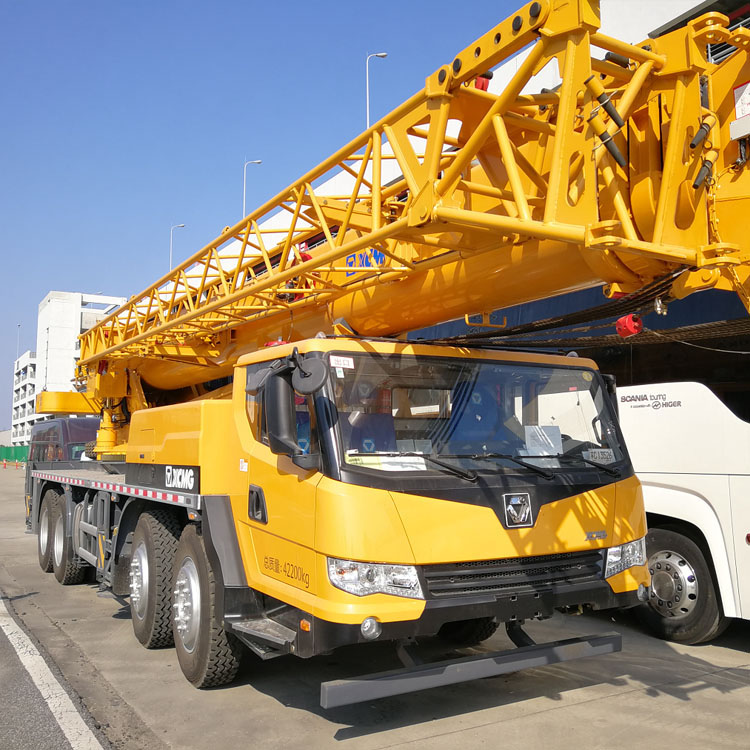

XCMG Official 50ton Truck Crane QY50KA.

1.Leading lifting and driving performances

Five section U-type booms. The boom length is 11.4m-43.5m with strong lifting performance, leading 5%-10% ahead of products with the same tonnages in the same industry.

High-power engine with good dynamic performance, strong gradeability and superior trafficability. The maximum gradeability and maximum travel speed respectively are 42% and 85km/h.

2.Reliability of heat dissipation, electrical system etc. has been improved with safer operation and driving

Waterproof connector clip. It is equipped with rubber sheath inside with excellent water impervious and level of protection reaches to IP65.

Aluminum alloy fuel tank. Good appearance quality, corrosion resistance, strong shock resistance capacity.

Double- broken line winch. The hoisting rope is in alignment, and it will be more reliable if turn off the press-rope machine.

Optimized heat-removal system. The air-conditioning condenser is separately installed, the heat-sinking capability is sharply improved and the environment temperature reached to more than 45℃.

3.Mature and reliable double-pump confluence technique, maintaining the advantages of efficient operation

Special confluence multi-valve has been designed. The double-pump confluence technique is adopted in raising and falling of winch, extending and retracting of lazy boom and luffing, leading ahead of luffing and extending and retracting operations.

4.Air-aid shift gears and 45% of shifting force is reduced

Special air-aid shift gears protection mechanism. The boost system will work only by stepping on the clutch that effectively avoids gearbox damaging gears when shifting. Compared with the same industry, 100mm distance of shift gears and 45% of shifting force are respectively reduced.

5.Apearance molding is newly upgraded, humanized design and comfortable riding manipulation

New operating house, wheel house, engine hood and machine shed, novel appearances, fine lines of the complete machine appearance, shows its elegant appearance.

Main Technical Data Table in Travel configuration
Description		Unit	Parameter value
Overall length		mm	13930
Overall width		mm	2780
Overall Height		mm	3630
Axle base	1st ,2nd axle	mm	1470
	2nd ,3rd axle		4300
	3rd ,4th axle		1350
Wheel Base		mm	2304+2075
Front overhang/rear overhang		mm	2389/2064or 2376/2064
Front extension/rear extension		mm	2131/226 or 2144/226
Total vehicle mass in travel configuration		kg	42200
Axle load	Front axle	kg	16200
	Rear axle		26000
Engine Model			WD615.338
Engine rated power		kw/(r/min)	276/2200
Engine rated torque		N.m/(r/min)	1500/1300-1600
Max. travel speed		km/h	85
Min. steady travel speed		km/h	2～3
Min. turning diameter		m	24
Min. ground clearance		mm	327
Max. grade ability		%	42
Approach angle		°	19
Departure angle		°	15
Braking distance (at 30 km/h, full load )		m	≤10
Oil consumption per 100km		L	40
Exterior noise level during acceleration traveling		dB (A)	≤88
Noise level at seated position		dB (A)	≤90

Main Technical Data Table for Lifting Operation
Max. total rated lifting capacity				t	50
Min. rated working radius				m	3
Turning radius at turntable tail				mm	3800
Max. load moment		Base boom		KN.m	2009
		Fully-extended boom			1129
Outrigger span		Longitudinal		m	6.1
		Lateral			7.1
Hoist height		Base boom		m	11.9
		Fully-extended boom			44
		Fully-extended boom + Jib			58.1
Boom length		Base boom		m	11.4
		Fully-extended boom			43.5
		Fully-extended boom + Jib			59.5
Jib offset angle				°	0, 15, 30
Time for boom raising				s	≤40
Time for boom extending fully				s	≤90
Max. slewing speed				r/min	≥2.0
Outrigger extending and retracting time	Outrigger		Extending	s	≤35
	beam		Simultaneously
			Retracting		≤30
			Simultaneously
	Outrigger		Extending		≤40
	jack		Simultaneously
			Retracting		≤35
			Simultaneously
Hoisting speed	Main winch		No load	m/min	≥130
(single line	Auxiliary winch		No load		≥130
Exterior noise level				dB (A)	≤118
Noise level at seated position				dB (A)	≤90
