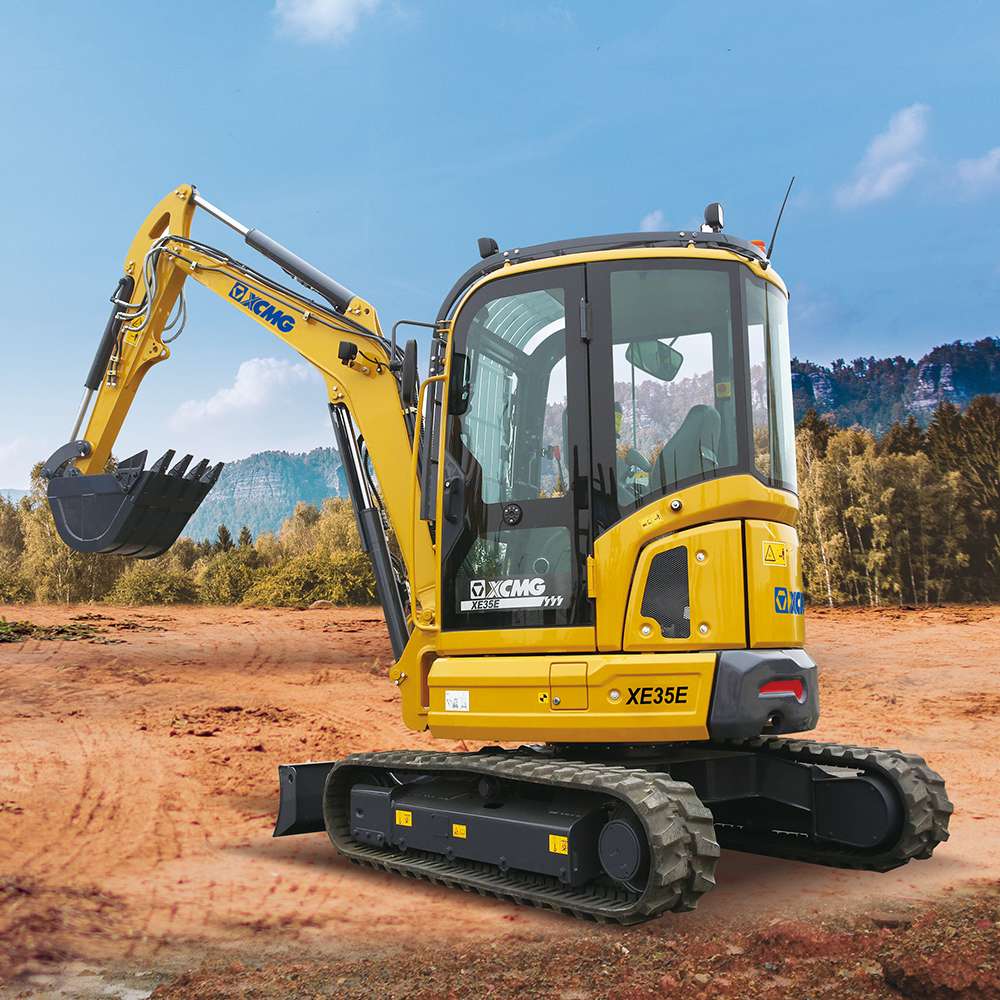

XCMG Official 3.5ton Hydraulic Excavator XE35E (Euro Stage V) for sale
Summary
- Max Digging Radius:5300mm
- Maximum Digging Depth:3060mm
- Maximum Digging Height:3600mm
- Bucket capacity:0.12m³
- Brand Name:XCMG
- Place of Origin:China
- Dimension(L*W*H):4960×1740×2535mm
- Weight:4200kg
- Model Number:XE35E
- Brand Name:XCMG
- Place of Origin:China
- Type:Crawler Excavator
- Certification:CE/ISO9001
Specifications
- Weight:4200.000kg
- Condition:New
- Moving Type:Crawler
- Operating weight:4200Kg
- Bucket capacity:0.12m³
- Swing speed:9r/min
- Ground pressure:36.6kPa
- Bucket digging force:28.6kN
- Max. digging height:5000mm
- Max. dumping height:3600mm
- Max. digging depth:3060mm
- Max. digging radius:5300mm
- Min. swing radius:2170mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
1. Environment friendly engine meeting Euro V emission standards is equipped with large displacement main pump, which has low energy consumption and high efficiency.
2. Tailless design cooperates with boom swing function, which can adapt to the narrow space operation flexibly.
3. The cab can be flipped up for easy maintenance.
4. Cab and base plate are integrated, which has strong noise isolation and high comfort.
5. The whole machine's weight is distributed reasonably improving the excavator's digging stability.
6. The armrest can be flipped up for easy access to the cab..jpg)
.jpg)
|
Item |
Unit |
Parameters |
|
|
Model |
Operating weight |
Kg |
4200 |
|
Bucket capacity |
m³ |
0.12 |
|
|
Engine |
Model |
- |
Yanmar 3TNV88F |
|
No. of cylinders |
- |
3 |
|
|
Rated power |
kw/rpm |
18.2/2200 |
|
|
Maximum torque/speed |
N.m |
85.3-94.2/1320 |
|
|
Displacement |
L |
1.642 |
|
|
Main performance |
Travel speed (H/L) |
km/h |
3.6/2.2 |
|
Swing speed |
r/min |
9 |
|
|
Gradeability |
° |
≤30 |
|
|
Ground pressure |
kPa |
36.6 |
|
|
Bucket digging force |
kN |
28.6 |
|
|
Arm digging force |
kN |
20.3 |
|
|
Maximum tractive force |
kN |
31.6 |
|
|
Hydraulic system |
Rated flow of main pump |
L/min |
108 |
|
Main safety valve pressure |
Mpa |
23 |
|
|
Travel system pressure |
Mpa |
27.5 |
|
|
Swing system pressure |
Mpa |
16.7 |
|
|
Pilot system pressure |
Mpa |
3.9 |
|
|
Oil capacity |
Fuel tank capacity |
L |
40 |
|
Hydraulic tank capacity |
L |
45 |
|
|
Engine oil capacity |
L |
7 |
|
|

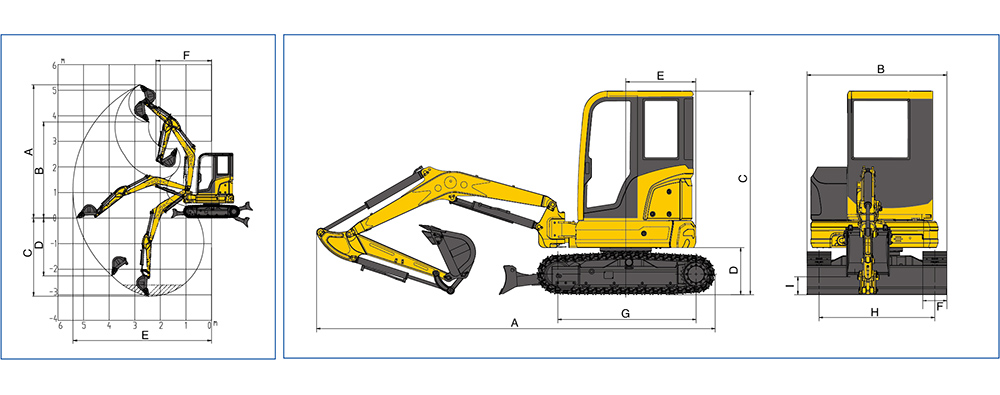

Appearance size |
A Overall length |
mm |
4960 |
|
B Overall width |
mm |
1740 |
|
|
C Overall height |
mm |
2535 |
|
|
D Width of platform |
mm |
587 |
|
|
E Minimum tail swing radius |
mm |
870 |
|
|
F Track shoe width |
mm |
300 |
|
|
G Wheel base of crawler |
mm |
1721 |
|
|
H Track gauge |
mm |
1440 |
|
|
J Minimum ground clearance |
mm |
297 |
|
|
Dozer blade(width/height) |
mm |
1740/358 |
|
|
Working range |
A Maximum digging height |
mm |
5000 |
|
B Maximum dumping height |
mm |
3600 |
|
|
C Maximum digging depth |
mm |
3060 |
|
|
D Maximum vertical wall digging depth |
mm |
2260 |
|
|
E Maximum digging radius |
mm |
5300 |
|
|
F Minimum swing radius |
mm |
2170 |
|
|
Maximum dozer lifting height |
mm |
305 |
|
|
Maximum dozer cutting depth |
mm |
360 |
|
|
Standard |
Length of boom |
mm |
2560 |
|
Length of arm |
mm |
1350 |
|
