XCMG Official 21ton Hydraulic Excavator XE210E (Euro Stage IV) for sale
Summary
- Max Digging Radius:9940mm
- Maximum Digging Depth:6680mm
- Maximum Digging Height:9620mm
- Bucket capacity:1.2m³
- Brand Name:XCMG
- Place of Origin:China
- Dimension(L*W*H):10220×2990×3300mm
- Weight:21000-23000kg
- Model Number:XE210E
- Brand Name:XCMG
- Place of Origin:China
- Type:Crawler Excavator
- Certification:CE/ISO9001
Specifications
- Weight:21000.000kg
- Condition:New
- Moving Type:Crawler
- Operating weight:21000-23000Kg
- Bucket capacity:1.2m³
- Swing speed:11.8r/min
- Ground pressure:45kPa
- Bucket digging force:149kN
- Max. digging height:9620mm
- Max. dumping height:6780mm
- Max. digging depth:6680mm
- Max. digging radius:9940mm
- Min. swing radius:3530mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
1.New generation hydraulic system featured with energy conservation and high efficiency.
2. New cab featured with comfortable operation and safety.
3. By adopting high pressure common rail engine with low speed and large torque and new power matching mode, the operation efficiency is higher and oil consumption is lower.
4. Maintenance is fast and convenient. Maintenance period of engine filter element has been extended.
5. Working equipment is featured with high reliability and our own patent technology.
.jpg)
.jpg)
|
Item |
Unit |
Parameters |
|
|
Model |
Operating weight |
Kg |
21000-23000 |
|
Bucket capacity |
m³ |
1.2 |
|
|
Engine |
Model |
- |
Cummins QSB6.7 |
|
No. of cylinders |
- |
6 |
|
|
Rated power |
kw/rpm |
129/2100 |
|
|
Maximum torque/speed |
N.m |
800/1500 |
|
|
Displacement |
L |
6.7 |
|
|
Main performance |
Travel speed (H/L) |
km/h |
5.6/3.5 |
|
Swing speed |
r/min |
11.8 |
|
|
Gradeability |
° |
≤35 |
|
|
Ground pressure |
kPa |
45 |
|
|
Bucket digging force |
kN |
149 |
|
|
Arm digging force |
kN |
111 |
|
|
Maximum tractive force |
kN |
184 |
|
|
Hydraulic system |
Rated flow of main pump |
L/min |
2x225 |
|
Main safety valve pressure |
Mpa |
34.3/37 |
|
|
Travel system pressure |
Mpa |
34.3 |
|
|
Swing system pressure |
Mpa |
27.5 |
|
|
Pilot system pressure |
Mpa |
3.9 |
|
|
Oil capacity |
Fuel tank capacity |
L |
420 |
|
Hydraulic tank capacity |
L |
300 |
|
|
Engine oil capacity |
L |
24 |
|
|

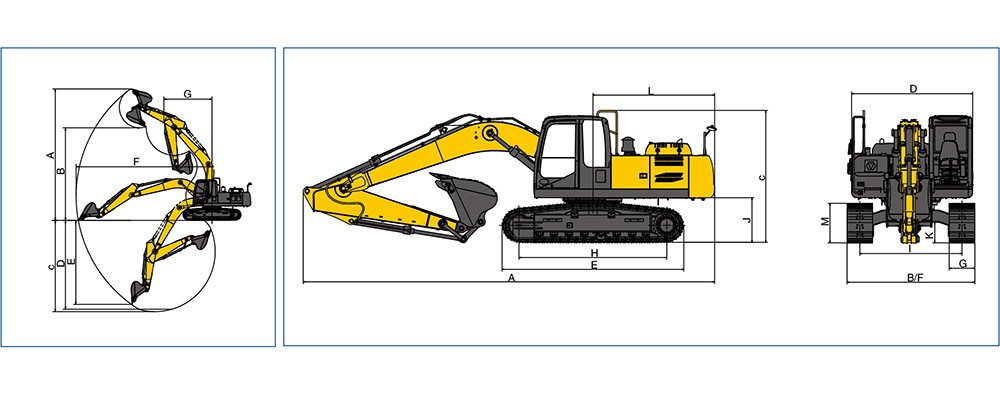

Appearance size |
A Overall length |
mm |
10220 |
|
B Overall width |
mm |
2990 |
|
|
C Overall height |
mm |
3300 |
|
|
D Width of platform |
mm |
2830 |
|
|
E Track length |
mm |
4455 |
|
|
F Overall width of chassis |
mm |
2990 |
|
|
G Track shoe width |
mm |
600 |
|
|
H Wheel base of crawler |
mm |
3647 |
|
|
I Track gauge |
mm |
2390 |
|
|
J Counterweight clearance |
mm |
1053 |
|
|
K Minimum ground clearance |
mm |
485 |
|
|
L Minimum tail swing radius |
mm |
2985 |
|
|
M Track height |
mm |
810 |
|
|
Working range |
A Maximum digging height |
mm |
9620 |
|
B Maximum dumping height |
mm |
6780 |
|
|
C Maximum digging depth |
mm |
6680 |
|
|
D Maximum depth cut for 2240mm(8 ft) level bottom |
mm |
6500 |
|
|
E Maximum vertical wall digging depth |
mm |
5715 |
|
|
F Maximum digging radius |
mm |
9940 |
|
|
G Minimum swing radius |
mm |
3530 |
|
|
Standard |
Length of boom |
mm |
5680 |
|
Length of arm |
mm |
2910 |
|
|
Optional |
Length of arm |
mm |
2400 |
|
Bucket capacity |
m³ |
1.0(Rock bucket) |
|
|
1.14 (Strengthened bucket) |
|||
