XCMG Official NXG5650DT 70 ton 6x4 375HP off-road mining mine dump truck price for sale
Specifications
- Weight:70000.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

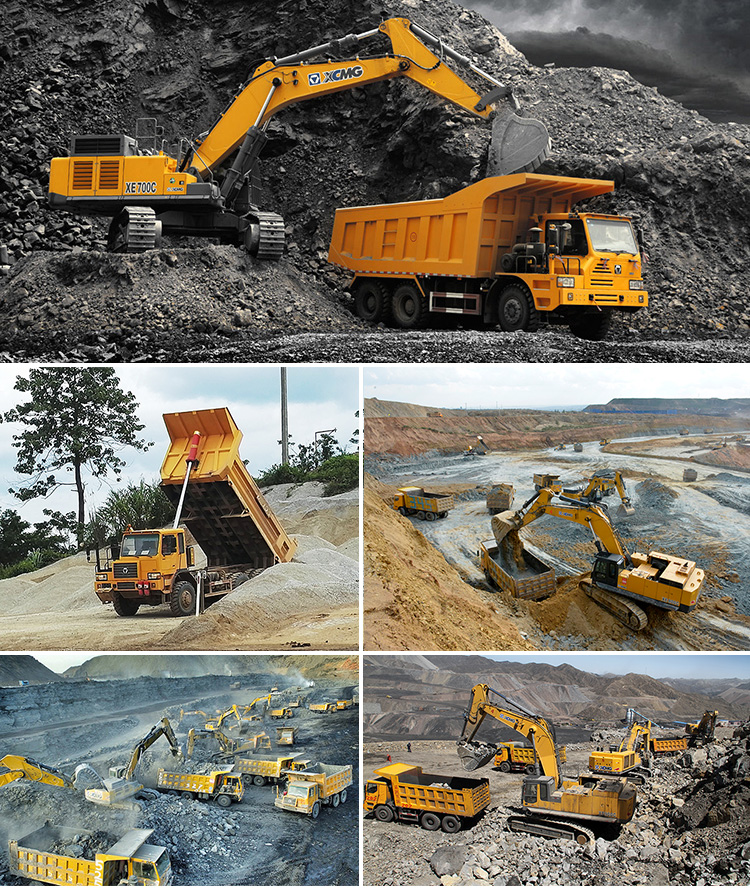

XCMG Official NXG5650DT 70 ton 6x4 375HP off-road mining
mine dump truck.
*
According to each of the engine torque characteristic curve, perfectly match the
different types of Fast manual gearbox, Allision automatic gearbox, to protect
the most energy rationalization output, the vehicle has an excellent starting
ability, climbing ability.
*
Optimized arrangement of the traditional system architecture, reducing the loss
of energy transfer process to ensure the kinetic energy efficient, rapid
transmission.
*
Using the unique steering and steering follower, the steering mechanism.
Steering light, the failure rate lower.
* Dual-circuit brake
system equipped with high pressure geography accumulator volume increases, the
brake pressure increasing 25% to 1 Mpa, shorten braking distance.
|
Dimensions |
Overall size (length×width×height) |
8875×3335×3915mm |
||
|
||||
|
Cargo body size (length×width×height) |
5800×3150×1650mm |
|||
|
Cargo thickness |
Bottom 16mm ,sideboard 12mm |
|||
|
Wheelbase |
3900+1600 |
|||
|
Weight |
Kerb mass |
25000kg |
||
|
Rated loading capacity |
45000kg |
|||
|
Gross vehicle weight |
70000kg |
|||
|
Performance |
Max. travel speed |
50km/h |
||
|
Max. gradeability |
40% |
|||
|
Engine |
Rated output power |
375HP（277kw） |
||
|
Displacement |
11596ml |
|||
|
Fuel tank |
Capacity |
400L |
