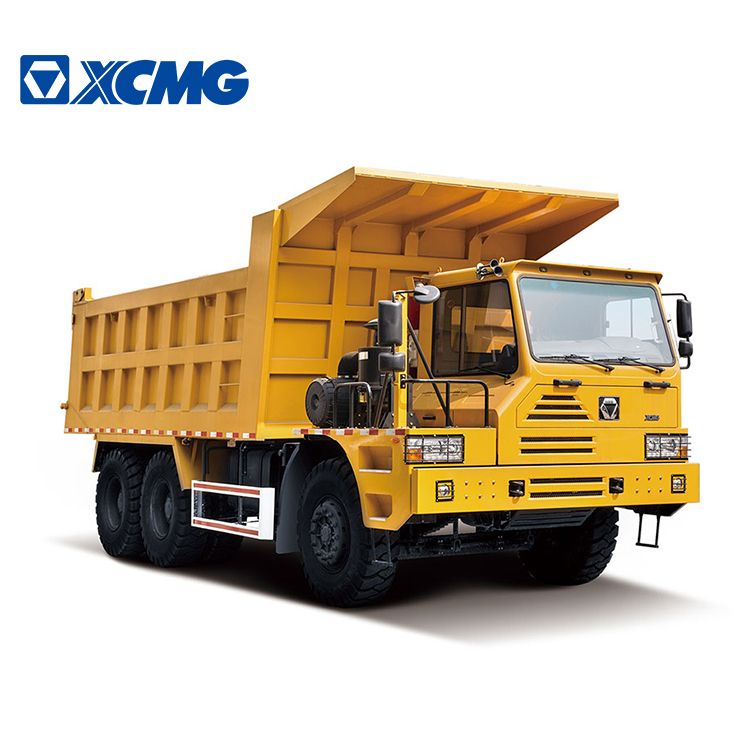

XCMG Manufacturer Electric Mining Dumper Trucks NXG5550DT for Sale
![](/app/topc/statics/images/close.png)
![XCMG Manufacturer Electric Mining Dumper Trucks NXG5550DT for Sale](/images/store/357636/item/NXG5550DT (1).jpg)
![](/app/topc/statics/images/close.png)
Summary
- Certification:CE/ISO9001
- Dimension(L*W*H):8860*3275*3740mm
- Weight:47000kg
- Model Number:NXG5550DT
- Place of Origin:Jiangsu,China
- Max. Speed:65km/h
- Brand Name:XCMG
Specifications
- weight:47000.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Manufacturer Electric Mining Dumper Trucks NXG5550DT.
*
According to each of the engine torque characteristic curve, perfectly match
the different types of Fast manual gearbox, Allision automatic gearbox, to
protect the most energy rationalization output, the vehicle has an excellent
starting ability, climbing ability.
*
Optimized arrangement of the traditional system architecture, reducing the loss
of energy transfer process to ensure the kinetic energy efficient, rapid
transmission.
*
Using the unique steering and steering follower, the steering mechanism.
Steering light, the failure rate lower.
*
Dual-circuit brake system equipped with high pressure geography accumulator
volume increases, the brake pressure increasing 25% to 1 Mpa, shorten braking
distance.
Dimensions(mm) | Overall size (length×width×height) | 8860*3275*3740 |
Cargo body size (length×width×height) | 5800*2400*1650 | |
Cargo thickness | Bottom 16mm, sideboard 12mm | |
Wheelbase | 4000+1400 | |
Weight(kg) | Kerb mass | 17000 |
Rated loading capacity | 30000 | |
Gross vehicle weight | 47000 | |
Performance | Max. travel speed | 65km/h |
Min. turning Radius | 18.8m | |
Max. gradeability | 33% | |
Electric System | Operating voltage | 24V |
Alternator | 70A/28V | |
Batteries | 6-QAW-180DMF |
