XCMG Official Track Dumper NCL3258 Tipper Truck 280HP 6X4 Dumper Trucks For Sale
Specifications
- Weight:10480.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG Official Track Dumper NCL3258 Tipper Truck 280HP 6X4
Dumper Trucks.
*
Elaborate Design
The
V front face, with diamond crystal headlamps, highlights the modern trend.
*
Top Manufacturing
Adopting
catholic electrophoresis enables the truck with good quality and elegant
appearance.
*
Safety and Energy Conservation
The
cabin with rational design adopts steel wedge-shaped structure, which of
safety, being fuelefficient and fast speed-raising.
*
Gold Configuration
It
adopts stabilizer bar, rear suspension with optimized and strong thrust rod and
suspension compression ramp structure.
*
Reliability and Durality

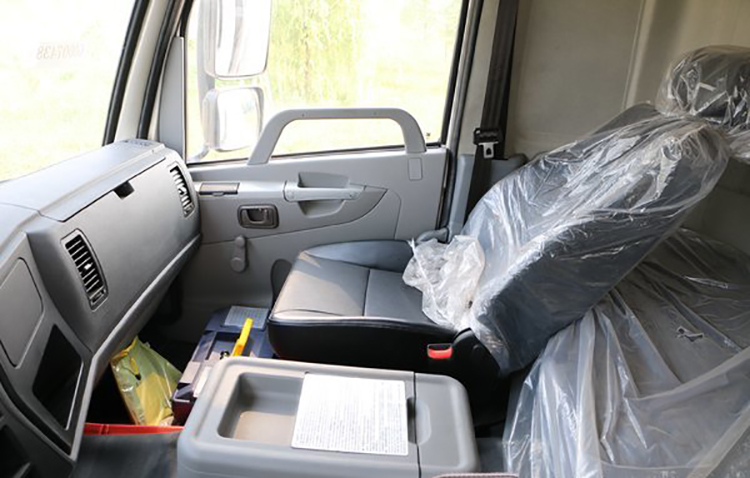

Console has
reasonable layout, complete functions, and visible various keys.
|
Dimension |
NCL3258 |
|
Overall size (length×width×height) |
7910×2490×3150mm |
|
Cargobody size (length×width×height) |
5200×2300×1400mm |
|
Wheelbase |
3650+1350mm |
|
Wheel tread (Front/Rear) |
2032/1848mm |
|
Min. ground clearancee |
270mm |
|
Kerb mass |
10480kg |
|
Gross vehicle weight |
24675kg |
|
Rated loading capacityy |
14000kg |
|
Max. travel speedd |
80km/h |
|
Min. turning diameter |
16m |
|
Max. gradeability |
30% |
|
Approach angle |
26° |
|
Departure angle |
26° |
|
Fuel consumption |
28(L/100 km) |
|
Engine |
6C280-2, water-cooling, turbocharging and intercooling,
Euro Ⅱ emission standard, direct injection
diesel |
|
Rated output at 1,900rpmm |
280HP(206kw) |
|
Max. torque at 1200r/pm |
1117N.m |
|
Rated Fuel consumption |
205g/(KW.h) |
|
Rims |
8.00-20 |
|
Tyres |
12.00R-20 |
|
Operating voltage |
24V |
|
Alternator |
70A/28V |
|
Batteries |
6-QAW-165 |
|
Capacity |
240 L |
