Summary
- Rated Speed:11.7r/min
- Max Digging Radius:8304mm
- Machine Weight:14800Kg
- Maximum Digging Depth:5520mm
- Maximum Digging Height:8640mm
- Bucket capacity: 0.32~0.72m³
- Operating Weight:14800Kg
- Model Number:XE150E
- Brand Name:XCMG
- Place of Origin:Jiangsu, China
Specifications
- Weight:14800.000kg
- Condition:New
- Moving Type:Crawler
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

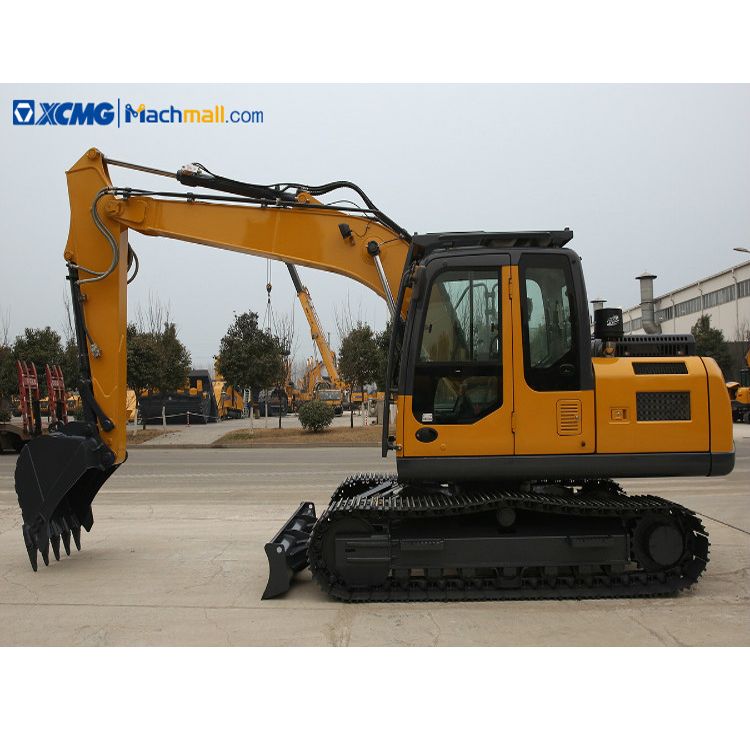

15 Ton XCMG Manufacturer Crawler Excavator XE150E.
XCMG crawler excavator XE150E adopts a high-pressure common-rail EFI engine that meets North American EPA Tier4F emissions, achieving optimal fuel injection control and improved combustion efficiency. Combined with DOC+DPF exhaust gas treatment technology, it is more energy-saving and environmentally friendly.
In addition, the brand new cab, complemented by a luxurious interior, the panoramic sunroof design has a wider field of vision, and the operation buttons are centrally arranged to fully upgrade the driving experience. A large number of special structures and high-strength, wear-resistant steel are used to develop and manufacture structural parts; the strength and service life of the products are greatly improved, and various severe working conditions can be easily handled.
XCMG crawler excavator XE150E is widely used in small and medium-sized earth and stone works, municipal construction, highway and bridge construction, excavation of ditches, and farmland water conservancy construction.
|
Sales model |
Unit |
XE150E |
|
|
Operating weight |
Kg |
14800 |
|
|
Bucket capacity |
m³ |
0.32～0.72 |
|
|
Engine |
Model |
/ |
QSB4.5 |
|
No. of cylinders |
/ |
4 |
|
|
Rated power |
kw/rpm |
90/2200 |
|
|
Maximum torque/speed |
N.m/rpm |
470/1500 |
|
|
Displacement |
L |
4.5 |
|
|
Main performance |
Travel speed |
km/h |
5.3/3.2 |
|
Swing speed |
r/min |
11.7 |
|
|
Gradeability |
° |
≤35 |
|
|
Ground pressure |
kPa |
38 |
|
|
Bucket digging force |
kN |
106.9 |
|
|
Arm digging force |
kN |
73.4 |
|
|
Maximum tractive force |
kN |
134 |
|
|
Hydraulic system |
Rated flow of main pump |
L/min |
123.5×2 |
|
Main safety valve pressure |
MPa |
34.3/37 |
|
|
Travel system pressure |
MPa |
34.4 |
|
|
Swing system pressure |
MPa |
25 |
|
|
Pilot system pressure |
MPa |
3.9 |
|
|
Oil Capacity |
Fuel tank capacity |
L |
260 |
|
Hydraulic tank capacity |
L |
105 |
|
|
Engine oil capacity |
L |
11 |
|
|
Appearance size |
A Overall length |
mm |
7806 |
|
B Overall width |
mm |
2590 |
|
|
C Overall height |
mm |
2900 |
|
|
D Width of platform |
mm |
2490 |
|
|
E Track length |
mm |
3658 |
|
|
F Overall width of chassis |
mm |
2590 |
|
|
G Track width |
mm |
600 |
|
|
H Wheel base of crawler |
mm |
2910 |
|
|
I Track gauge |
mm |
1990 |
|
|
J Counterweight clearance |
mm |
942 |
|
|
K Min. ground clearance |
mm |
476 |
|
|
L Min. tail swing radius |
mm |
2355 |
|
|
M Track height |
mm |
836 |
|
|
Working scope |
A Max. digging height |
mm |
8640 |
|
B Max. dumping height |
mm |
6180 |
|
|
C Max. digging depth |
mm |
5520 |
|
|
D Maximum depth cut for 2240mm(8 ft) level bottom |
mm |
5324 |
|
|
E Max. vertical wall digging depth |
mm |
4697 |
|
|
F Max. digging radius |
mm |
8304 |
|
|
G Min. swing radius |
mm |
2445 |
|
|
Standard |
Length of boom |
mm |
4600 |
|
Length of arm |
mm |
2520 |
|
|
Bucket capacity |
m³ |
0.61 |
|
|
Optional |
Length of boom |
m³ |
/ |
|
Length of arm |
m³ |
2100/3010 |
|
|
Bucket capacity |
m³ |
0.52 Rock bucket、Strengthened bucket 0.32/0.4/0.72 Earthwork bucket |
|
