Summary
- Certification:ISO9001/CE
- Model Number:MQH37A
- Brand Name:XCMG
- Place of Origin:JiangSu,China
- Span:3.2m
- Max. Lifting Height:40m
- Max. Lifting Load:37000KG
- Rated Lifting Moment:1764kN.M
- Rated Loading Capacity:30000kg
- Application:Construction
Specifications
- weight:70000.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

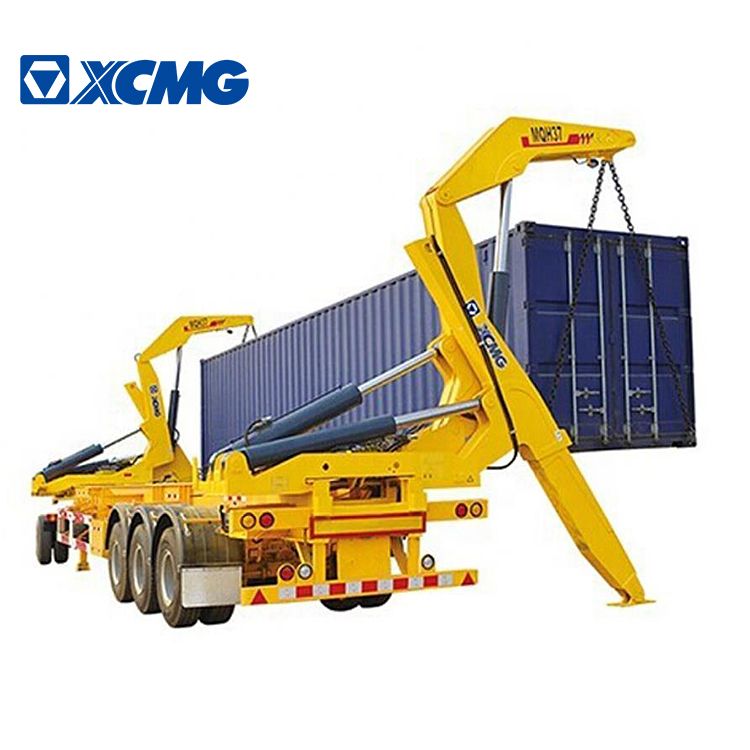

XCMG Official Pickup Crane MQH37A
Container Side Lifter 37 Ton Pickup With Crane.
XCMG side loader MQH37A have several
advanced core technologies and a number of patents,itcan transfer containers to
other trailers, trucks, or onto the ground. Its characters includingbiglifting
capacity, large working range, wide applicationrange, good versatility and
strong guarantee ability, meet the demands of lifting containeranywhere. It
iswidely used for shipping, port, railway, storage and custom etc.Its
characteristics of "rapid, vivid, efficiency, convenience" get more
and more understanding and approbations.
Advantages and highlights:
* Power take off(PTO) or Diesel APU.
* Sideloader can slide to fit 20ft-40ft
Containers.
* Wireless remote contrcl/Manual
operating.
* Engine throttle size and engine speed
can be control, improving working efficiency.
* The front and rear crane can work
together and Separate, adjusting container conveniently.
* Safety control with stop button.
* Elegant appearance,Reliable
performance.
* Convenient operation,Facilitate
manufanture and maintenance.
Item |
Units |
Crane model |
|
Specification |
Max lifting capacity |
kg |
37000 |
Max stabilizer outreach |
mm |
3200 |
|
Max working range |
mm |
4000 |
|
Overall height |
mm |
2490 |
|
Over width |
mm |
2500 |
|
Over length |
mm |
1020 |
|
Max pressure of hydraulic system |
Mpa |
28 |
|
Tare weight |
kg |
7000 |
|
Power system specification |
Motor manufacturer |
Kubota |
|
Engine Model |
V2403-M-DI-E3B-CSL-1 |
||
Total displacement |
L |
2.434 |
|
Brake Horse Power |
kW/rpm |
36.5/2600 |
|
Max Torque/Speed |
N•m/rpm |
158.6N•m/1600 |
|
Min Idling Speed |
rpm |
1050~1150 |
|
Max Idling Speed |
rpm |
2820 |
|
Dry Weight |
kg |
185 |
|
Power Voltage |
V |
12 |
|
Emission Regulation |
EU Stage3 |
||
Main technical parameters of
semi-trailer |
Type |
/ |
Frame |
Outline dimension |
mm |
14100*2480*(≤1510) |
|
Maximum gross mass |
kg |
52000 |
|
Curb mass |
kg |
7200 |
|
Payload mass |
kg |
44800 |
|
Quantity of wheel |
/ |
3 |
|
Spread of axles |
mm |
8000+1350+1350 |
|
Tare weight |
kg |
7000 |
|
Axle load |
kg |
- / 24000 |
|
Maximum Kingpin Mass |
kg |
16000 |
|
ABS |
YES |
||
Front/Rear overhang |
mm |
-/2370 |
