XCMG official 6 ton front loader LW600KN China new wheel loader
Summary
- Rated Load:6000kg
- Dimension(Long* Breadth * High):8505*3220*3515mm
- Type:wheel loader
- Place of Origin:Jiangsu, China
- Model Number:LW600KN
- Brand Name:XCMG
- Certification:CE/ISO90001
Specifications
- Weight:20000.000kg
- Engine Brand:SHANGCHAI
- Rated Load:6-10 ton
- Bucket Capacity:
- Bucket capacity:3.0~4.5m3
- Power:178kW
- Machine Weight:20000±300kg
- dump clearance at max lift:3170~3750mm
- Max.breakout force:205kN
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

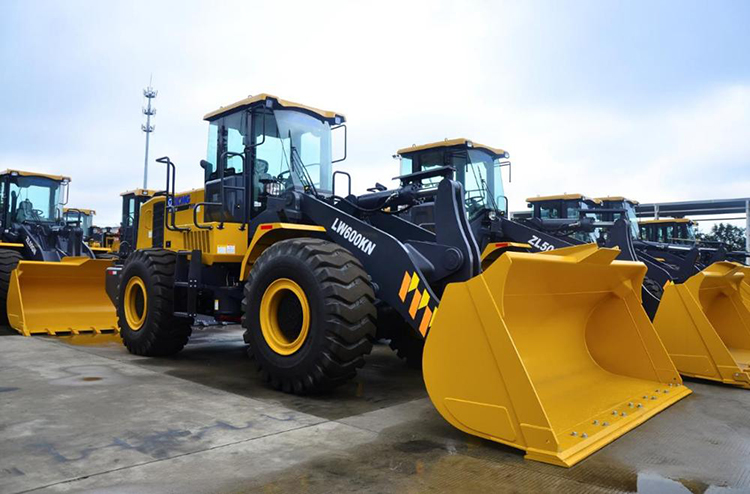

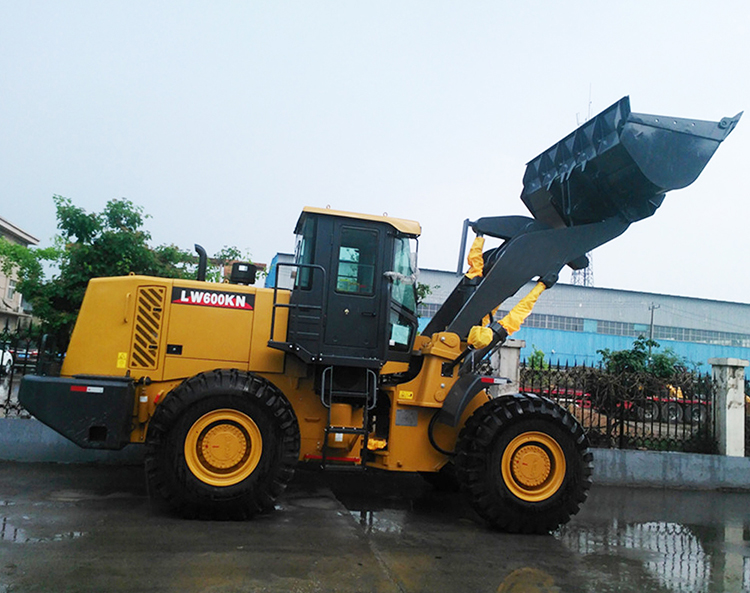

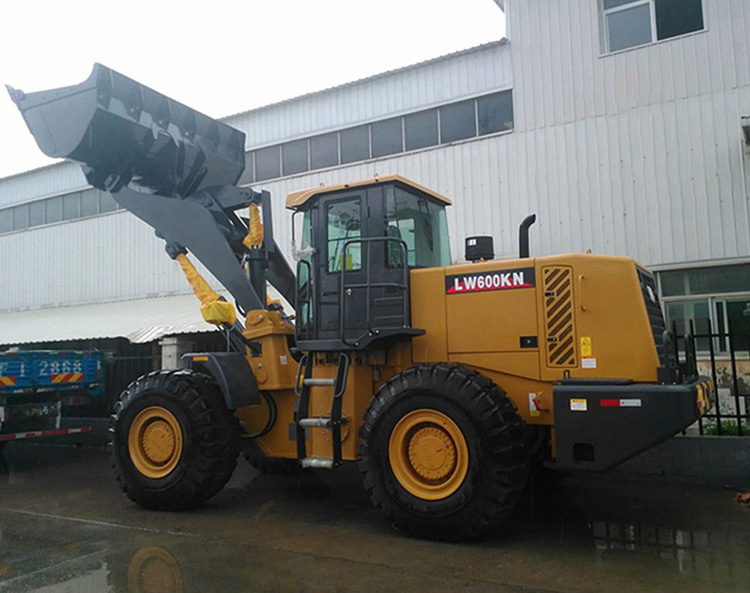

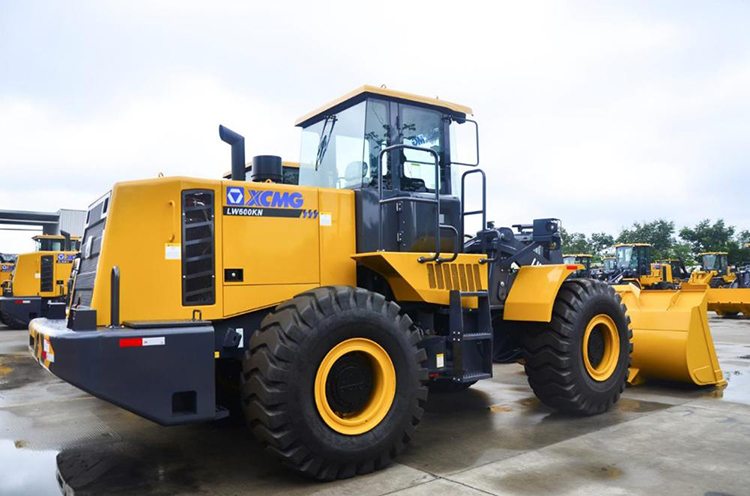

XCMG official 6 ton front loader LW600KN China new wheel loader.
XCMG LW600KN wheel loader is rooted in the customers’ needs and based on the international R&D platform to thoroughly improve the product reliability, economy, comfort, efficiency, maintenance convenience, and adaptability and is a preferential machinery product for the production organization in the fields of ports, mines, engineering constructions, and logistics.

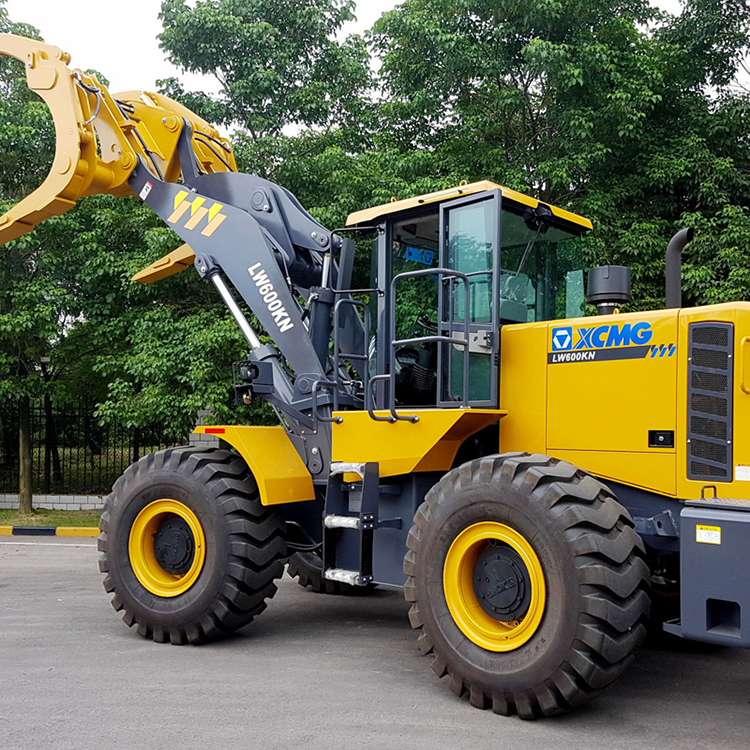

With wide scope design this machine is applicable for diversified working environments, including high altitude, heavy dust, high temperature, and low temperature. The diversified attachments can be equipped to meet the needs of diversified working conditions.
Performance Characteristics:
1.Carry the torsion and impact loads under diversified working conditions.
2.Realize higher fuel utilization efficiency and more powerful working capacity.
3.Ensure that the machine could adapt to various tough condition and powerful lifting capacity.
4.Reasonable distribution and strong carrying capacity.
5.Featuring excellent abrasion resistance and shock resistance.
Description | Unit | Parameter value |
Rated operating load | kg | 6000 |
Bucket capacity | m³ | 3.0～4.5 |
Machine weight | kg | 20000±300 |
Dump clearance at maximum lift | mm | 3170～3750 |
Reach at maximum lift | mm | 1200～1360 |
Wheel base | mm | 3350 |
Tread | mm | 2265 |
Max.breakout force | kN | 205 |
Max.horse power | kN | 174 |
Hydraulic cycle time-raise | s | ≤5.9 |
Total hydraulic cycle time | s | ≤10.9 |
Min. turning radius over tyres | mm | 6005 |
Articulation angle | ° | 38 |
Gradeability | ° | 28 |
Tyre size | 23.5-25 | |
Overall machine dimension L×W×H | mm | 8505×3220×3515 |
Model | SC11CB240.1G2B | |
Rated Power | kW | 178 |
Fuel Tank | L | 250 |
Hydraulic Tank | L | 210 |
Travel Speed | km/h | 6-34 |
