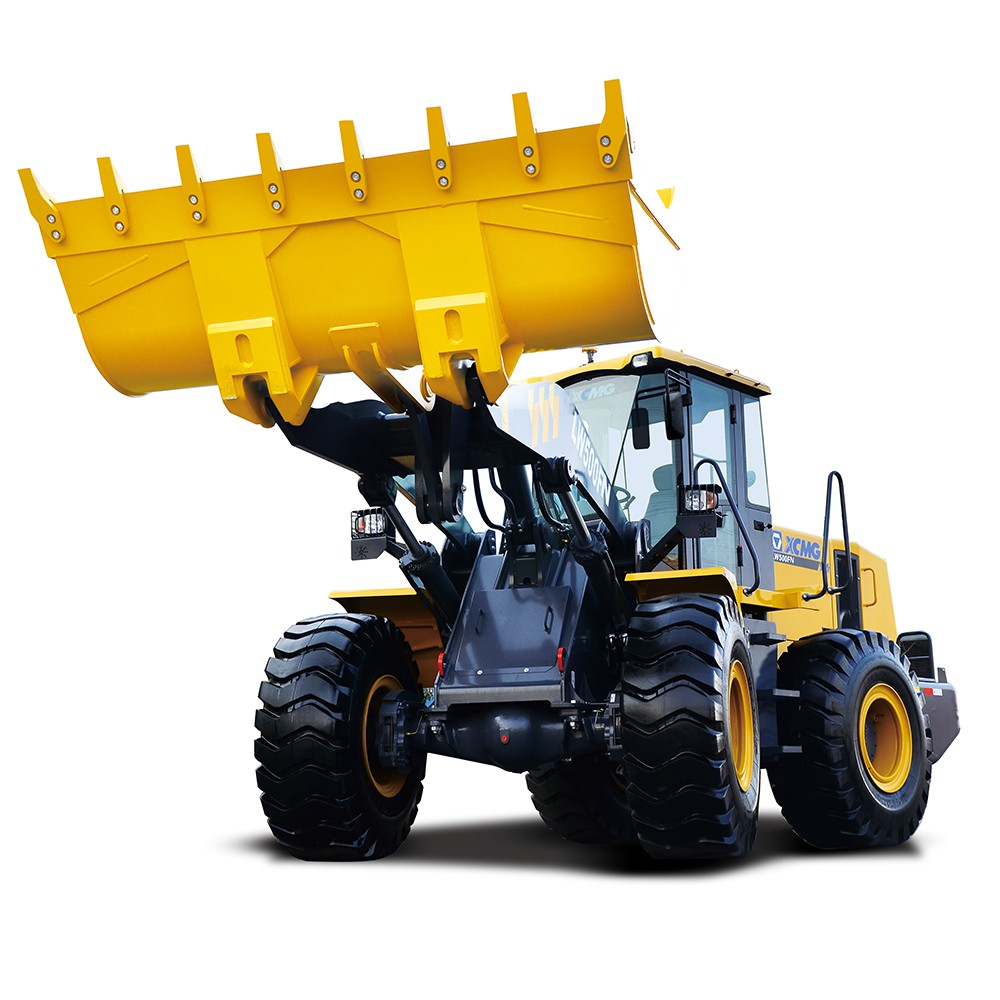

XCMG Official LW500FN Wheel Loader for sale
![](/app/topc/statics/images/close.png)
![XCMG Official LW500FN Wheel Loader for sale](/images/store/357636/item/LW500FN_1.jpg)
![](/app/topc/statics/images/close.png)
Specs & Compare
Details
Select 3 models for comparison
Rated Load
Dimension(Long* Breadth * High)
Type
Place of Origin
Model Number
Brand Name
Certification
Dimension(Long*Breadth*High)
Engineering & Construction Machinery
5000
--
Front Loader
China
LW500FN
XCMG
CE/ISO9001
7910×3016×3515mm
+ Add a Product
+ Add a Product
Summary
- Rated Load:5000
- Type:Front Loader
- Place of Origin:China
- Model Number:LW500FN
- Brand Name:XCMG
- Certification:CE/ISO9001
- Dimension(Long*Breadth*High):7910×3016×3515mm
Specifications
- weight:16900.000kg
- Condition:New
- Moving Type:Wheel
- Rated operating load:5000kg
- Bucket capacity:2.5~4.5m³
- Machine weight:16900kg
- Dump clearance at maximum lift:3150~3560mm
- Reach at maximum lift:1100~1190mm
- Wheel base:2960mm
- Tread:2250mm
- Max.breakout force:170kN
- Engine Model:WD10G220E21
- Rated Power:162kW
- Tyre specification:23.5-25-16PR
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
LW500FN Wheel loader
1、High torque and high efficiency drive chain features reasonable matching.
2、The 160kN traction force and ≥3.5m
high dumping capacity handle the severe conditions with ease.
3、This engine meets the instant overload demand during
operations and sufficiently provides the power required for heavy-load
operations.
4、The air-assisted hydraulic four-wheel caliper brakes
feature stable braking and high safety and reliability.
5、The easy and convenient daily maintenance ensure that the
machine is under the best ready status at all times.
Description
Unit
Parameter value
Rated operating
load
kg
5000
Bucket capacity
m³
2.5~4.5
Machine weight
kg
16900
Dump clearance at
maximum lift
mm
3150~3560
Reach at maximum
lift
mm
1100~1190
Wheel base
mm
2960
Tread
mm
2250
Height of hinge
at maximum lift height
mm
4112
Working
height(fully lifted)
mm
5510
Max.breakout
force
kN
170
Hydraulic cycle
time-raise
s
≤6
Total hydraulic
cycle time
s
≤10.5
Min. turning
radius over tyres
mm
5950
Articulation
angle
°
35
Gradeability
°
28
Tyre size
23.5-25-16PR
Overall machine
dimension L×W×H
mm
7910×3016×3515
Model
WD10G220E21
Rated Power
kW
162
Fuel Tank
L
250
Hydraulic Tank
L
210
Travel Speed
Ⅰ-gear(F/R)
km/h
13/18
Ⅱ-gear(F/R)
km/h
40
Description |
Unit |
Parameter value |
||
Rated operating load |
kg |
5000 |
||
Bucket capacity |
m³ |
2.5~4.5 |
||
Machine weight |
kg |
16900 |
||
Dump clearance at maximum lift |
mm |
3150~3560 |
||
Reach at maximum lift |
mm |
1100~1190 |
||
Wheel base |
mm |
2960 |
||
Tread |
mm |
2250 |
||
Height of hinge at maximum lift height |
mm |
4112 |
||
Working height(fully lifted) |
mm |
5510 |
||
Max.breakout force |
kN |
170 |
||
Hydraulic cycle time-raise |
s |
≤6 |
||
Total hydraulic cycle time |
s |
≤10.5 |
||
Min. turning radius over tyres |
mm |
5950 |
||
Articulation angle |
° |
35 |
||
Gradeability |
° |
28 |
||
Tyre size |
23.5-25-16PR |
|||
Overall machine dimension L×W×H |
mm |
7910×3016×3515 |
||
Model |
WD10G220E21 |
|||
Rated Power |
kW |
162 |
||
Fuel Tank |
L |
250 |
||
Hydraulic Tank |
L |
210 |
||
Travel Speed
|
Ⅰ-gear(F/R) |
km/h |
13/18 |
|
Ⅱ-gear(F/R)
|
km/h |
40 |
