XCMG 5 ton pay wheel loader LW500FN China new payloader machine price, MACHMALL

Engineering & Construction Machinery > Earth-Moving Machinery > Wheel Loader

XCMG 5 ton pay wheel loader LW500FN China new payloader machine price

View All >

Model： LW500FN

Engine： WEICHAI

After-sales Service： Engineers available to service machinery overseas

Min Order Quantity： 1 Unit

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 20 days)

Customization (negociated delivery time)

After-sales Service：

1. It is recommended that you keep in touch with the seller after purchasing offline...

About after-sales service:

1. It is recommended that you keep in touch with the seller after purchasing offline, who knows your equipment and working conditions and can provide you with more effective after-sales service.

2. If you purchase on Machmall.com, its customer management system will record your customer information, please rest assured to apply for after-sales service.

3. If you can't find the seller, Machmall.com will help you as long as you provide the equipment nameplate and service you want. Please inform us as much information as possible in order to get the most accurate after-sales service.

After-sales service forms:

1. Online service: samples, technical specifications, operation manuals, spare parts purchase.

2. Video service: application guidance, troubleshooting and maintenance guidance.

3. Overseas service: XCMG has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Inquiry Chat Now

Favorite Products

Product:

XCMG 5 ton pay wheel loader LW500FN China new payloader machine price

Quantity:

- + /EA

Content:

Or choose from these questions:

What is the best price you can offer?

Do you support customization?

What is the MOQ for this product?

*Email:

Full Name:

Mobile phone:

LW500FN

Specs & Compare

Details

Specs & Compare

Select 3 models for comparison

Rated Load

Dimension(Long* Breadth * High)

Type

Place of Origin

Model Number

Brand Name

Certification

Engineering & Construction Machinery

LW500FN

5000kg

7910*3016*3515mm

front loader

Jiangsu, China

LW500FN

XCMG

CE/ISO9001

+ Add a Product

Summary

Rated Load:5000kg
Dimension(Long* Breadth * High):7910*3016*3515mm
Type:front loader
Place of Origin:Jiangsu, China
Model Number:LW500FN
Brand Name:XCMG
Certification:CE/ISO9001

Specifications

Weight:5000.000kg
Engine Brand:WEICHAI
Rated Load:6-10 ton
Bucket Capacity:2.5 - 3.5m³

Packaging & Shipping

Delivery Lead Time:7 days for ready goods
Minimum Order:1 Piece
Supply Ability:10,000 Set/ Sets per Month
Total Quantity In Stock:Over 5000
Delivery Port:Any Port In China

XCMG 5 ton pay wheel loader LW500FN China new payloader machine price

XCMG 5 ton pay wheel loader LW500FN China new payloader machine.

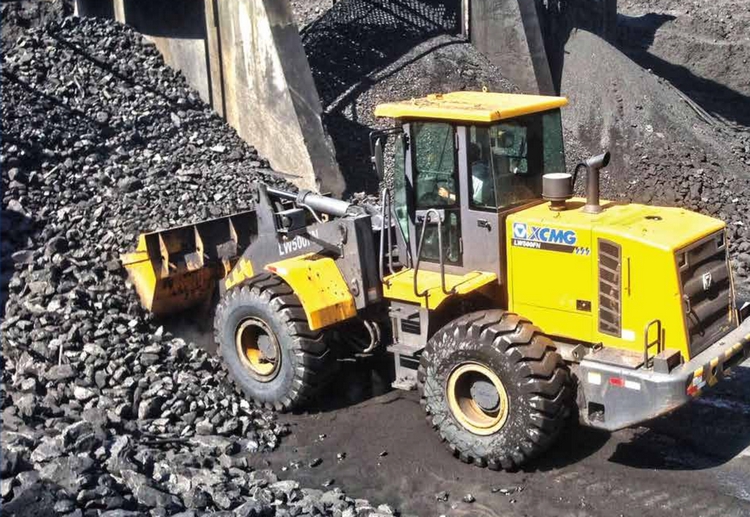

LW500FN boasts outstanding advantages (such as efficiency) in the fields of engineering constructions, aggregate yards, and coal logistics.

Performance Highlights:

1. The 160kN traction force and ≥3. 5m high dumping capacity handle the severe conditions with ease.

2. ≥7 ,500kg lifting capacity and 170kN breakout force handle all kinds of materials with ease.

3. The front frame adopts the box structure with integrally cast lugs and the rear frame adopts the special-shaped box beams welded from variable stiffness bent plates, featuring high carrying capacity.

4. The hinged joints between front and rear frames adopt the structure of rolling bearings + knuckle bearings, featuring high carrying capacity and working stability.

5. With short wheelbase and small turning radius, this product features high mobility and flexibility and outstanding field adaptability.

XCMG 5 ton pay wheel loader LW500FN China new payloader machine price

Description	Unit		Parameter value
Rated operating load	kg		5000
Bucket capacity	m³		2.5～4.5
Machine weight	kg		16900
Dump clearance at maximum lift	mm		3150～3560
Reach at maximum lift	mm		1100～1190
Wheel base	mm		2960
Tread	mm		2250
Height of hinge at maximum lift height	mm		4112
Working height(fully lifted)	mm		5510
Max.breakout force	kN		170
Hydraulic cycle time-raise	s		≤6
Total hydraulic cycle time	s		≤10.5
Min. turning radius over tyres	mm		5950
Articulation angle	°		35
Gradeability	°		28
Tyre size			23.5-25-16PR
Overall machine dimension L×W×H	mm		7910×3016×3515
Model			WD10G220E21
Rated Power	kW		162
Fuel Tank	L		250
Hydraulic Tank	L		210
Travel Speed	Ⅰ-gear(F/R)	km/h	13/18
	Ⅱ-gear(F/R)	km/h	40

XCMG 5 ton pay wheel loader LW500FN China new payloader machine price
