XCMG Official LW1200KN Wheel Loader for sale
Summary
- Rated Load:12000kg
- Dimension(Long* Breadth * High):12337×3875×4319mm
- Place of Origin:China
- Model Number:LW1200KN
- Brand Name:XCMG
- Certification:ISO9001
Specifications
- Weight:50000.000kg
- Condition:New
- Moving Type:Wheel
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

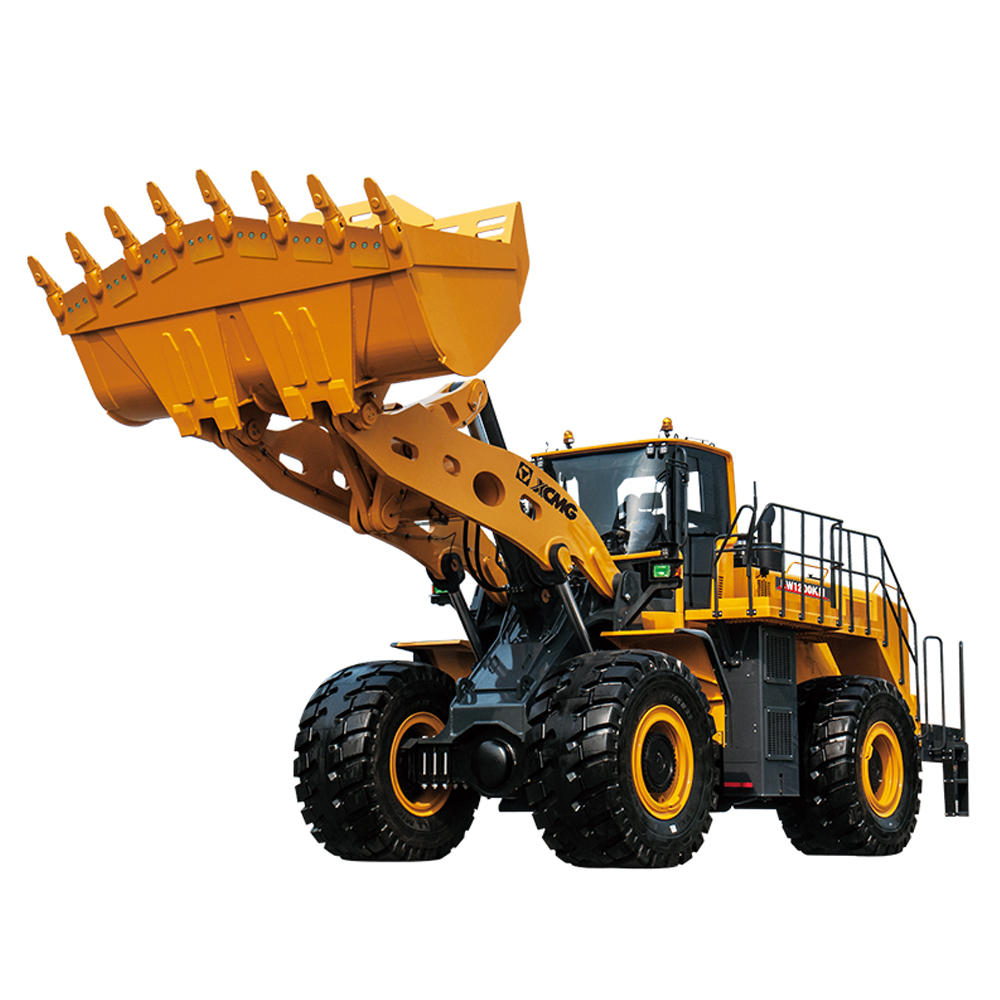

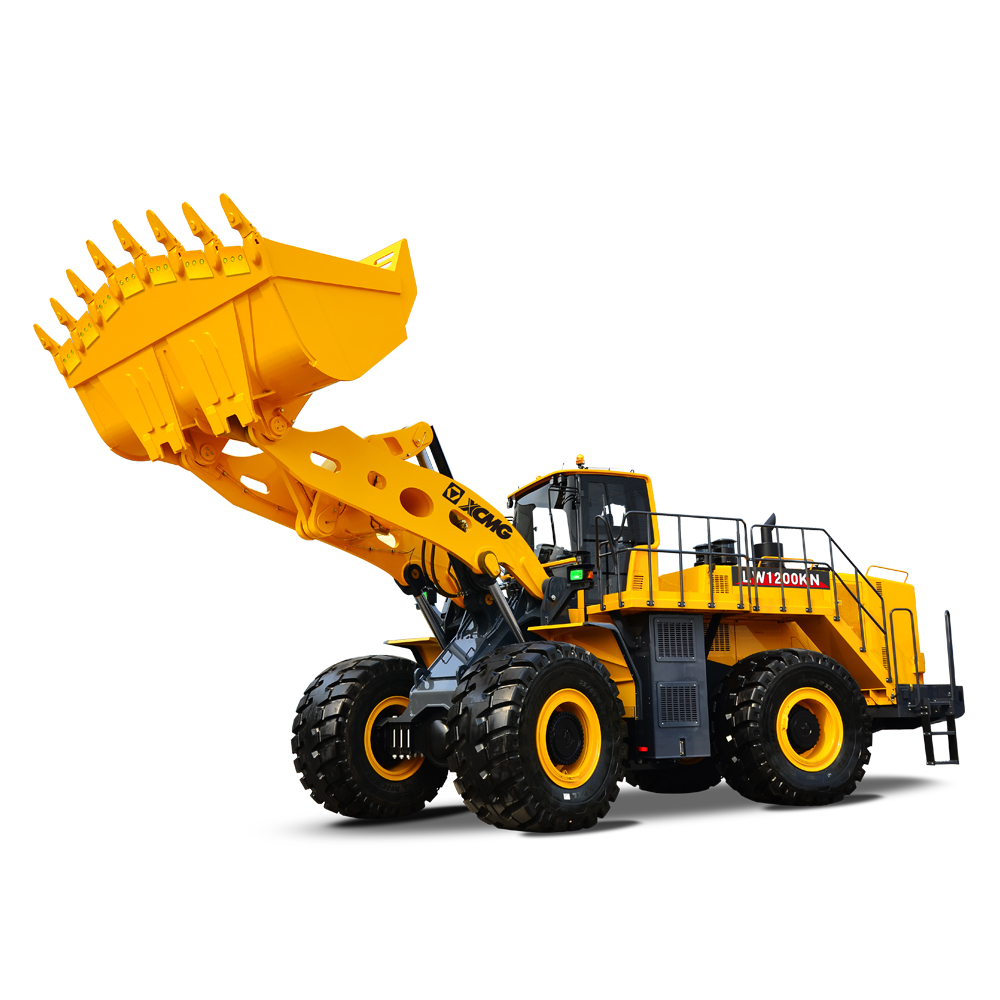

LW1200KN Wheel Loader
1、The XCMG’s latest integral FOPS&ROPS cab is globally developed and designed to incorporate the world’s most advanced technologies and reach the world’s leading level.
2、The integral cab structure is connected with the frame by silicone oil shock absorbers and is equipped with air cushioned seats, featuring large space, broad visual field, good sealing performance, low noise, and high safety and comfort.
3、The scientifically matched and in-depth optimized drive system assembly and the world’s leading quality drive parts ensure the high stability and reliability of the drive system and realize the maximum utilization of engine power.
4、The load-sensing variable technology is adopted to supply pressure and flow depending on the working needs, which improves the fuel utilization efficiency by 15%.
Description | Unit | Parameter value | |
Wheel base | mm | 4500 | |
Tread | mm | 2710 | |
Dump clearance at maximum lift | mm | 3845 | |
Reach at maximum lift | mm | 2168 | |
Minmum ground clearance | mm | 505 | |
Overall machine dimension L×W×H | mm | 12337×3875×4319 | |
Rated operating load | kg | 12000 | |
Bucket capacity | m³ | 6.5 | |
Machine weight | kg | 50000 | |
Max.breakout force | kN | 394 | |
Total cycle time | s | 15.3 | |
Minimum turning radius (at tire center) | mm | 7622 | |
Articulation angle | ° | 40 | |
Gradeability | ° | 25 | |
Tyre size | Radial35/65R33 | ||
EngineModel | CummnisQSK19 | ||
Rated Power/Speed | kW/rpm | 418/2000 | |
Travel Speed | Ⅰ-gear(F/R) | km/h | 6.5/6.5 |
Ⅱ-gear(F/R) | km/h | 12/12 | |
Ⅲ-gear(F/R) | km/h | 20/20 | |
Ⅳ-gear(F) | km/h | 33/33 | |
