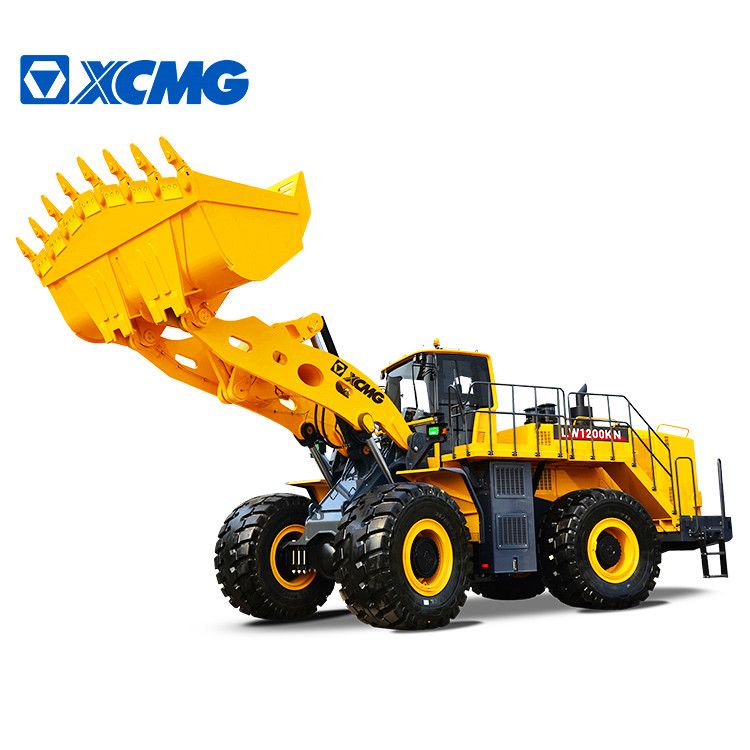

XCMG 12 ton strong large wheel loader LW1200KN mining heavy front loader
![](/app/topc/statics/images/close.png)
![XCMG 12 ton strong large wheel loader LW1200KN mining heavy front loader](/images/store/357636/item/LW1200K (1).jpg)
![](/app/topc/statics/images/close.png)
Summary
- Rated Load:12000kg
- Dimension(Long* Breadth * High):12337*3875*4319mm
- Type:wheel loader
- Place of Origin:Jiangsu, China
- Model Number:LW1200KN
- Brand Name:XCMG
- Certification:CE/ISO90001
Specifications
- weight:50000.000kg
- Engine Brand:CUMMINS
- Rated Load:
- Bucket Capacity:
- Bucket capacity:6.5m3
- Machine Weight:50000kg
- Power:418kw
- Min.turning radius over tyres:7622mm
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
XCMG 12 ton strong large wheel loader LW1200KN mining
heavy front loader.
wheel loader LW1200KN is the most popular model of China
12t huge wheel loader, Now LW1100KN is upgrading to new model LW1200KN equipped
with EURO III engine with electric injector, new model will have high
performance.
Performance Characteristics:
1.The XCMG’s latest integral FOPS&ROPS cab is
globally developed and designed to incorporate the world’s most advanced
technologies and reach the world’s leading level.
2.The integral cab structure is connected with the frame
by silicone oil shock absorbers and is equipped with air cushioned seats,
featuring large space, broad visual field, good sealing performance, low noise,
and high safety and comfort.
3.The scientifically matched and in-depth optimized drive
system assembly and the world’s leading quality drive parts ensure the high
stability and reliability of the drive system and realize the maximum
utilization of engine power.
4.The load-sensing variable technology is adopted to
supply pressure and flow depending on the working needs, which improves the
fuel utilization efficiency by 15%.
Description |
Specification |
Unit |
Rated operating load |
12000 |
kg |
Bucket capacity |
6.5 |
m³ |
Machine weight |
50000 |
Kg |
Wheel Tread |
2710 |
mm |
Max.breakout force |
394 |
kN |
Total hydraulic cycle time |
15.3 |
s |
Min.turning radius over tyres |
7622 |
mm |
Articulation angle |
40 |
° |
Gradeability |
25 |
° |
Tyre size |
radial35/65R33 |
|
Overall machine dimension L*M*H |
12337*3875*4319 |
mm |
Model |
Cummnis |
|
Rated Power/Speed |
418/2000 |
kW/rpm |
Travel Speed (I-gear F/R) |
6.5/6.5 |
km/h |
Travel Speed (II-gear F/R) |
12/12 |
km/h |
Travel Speed (III-gear F/R) |
20/20 |
km/h |
Travel Speed(IV-gear F/R) |
33/33 |
km/h |
