XCMG Official 11 Ton Mining Wheel Loader LW1100KV China Big Mine Loader for Sale
Specifications
- Weight:11000.000kg
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China

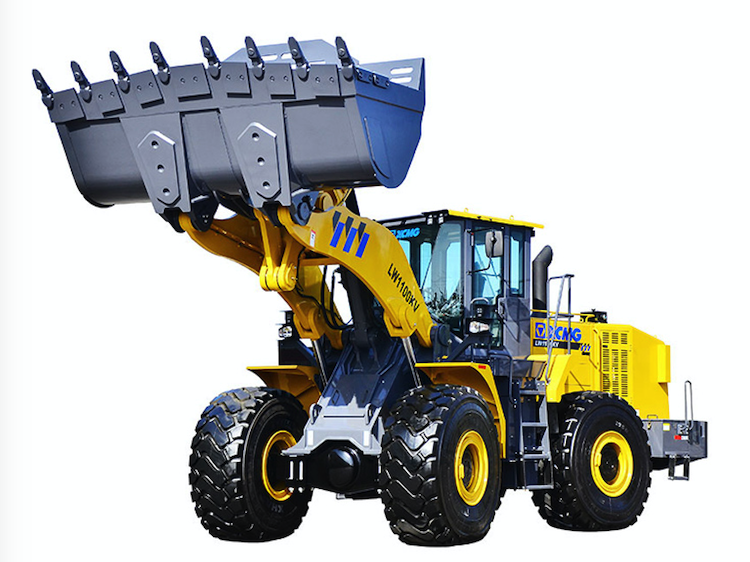

XCMG Official 11 Ton Mining Wheel Loader LW1100KV China Big Mine Loader for Sale.
LW1100KV is one main model of XCMG V series high-tonnage wheel loader and is leading the domestic industry development. It's rooted in the customers' needs and based on the international R&D platform to thoroughly improve the product reliability, economy, energy-saving, environmental-friendliness, comfort, and maintenance convenience.
With heavy-duty design and high firmness and reliability and globally supplied critical parts, this product is extensively applied in the productions of mine, logistics, cement, and steel enterprises.
Performance Characteristics:
* High efficiency drive system
The world's leading full-automatic electronic control transmission is equipped, with four-forward and three-reverse gears, automatic/manual mode switchover function, and KD function.
* High efficiency hydraulic system
The load-sensing variable technology is adopted to supply pressure and flow depending on the working needs, which reduces the fuel consumption by 15%.
* High-efficiency working device
The high- efficiency linkage system is fitted with limit sensing mechanism with angle memory function, featuring higher limiting accuracy and working efficiency.
* Engine
The three-stage air filter is designed especially for severe working environment of construction machinery industry.
The multi-stage fuel filter ensures good fuel adaptability and guarantees cleanliness of engine system.
Description | Specification | Unit | |
Rated operating load | 11000 | kg | |
Bucket capacity | 5.5-6.1 | m³ | |
Machine weight | 34000-35000 | kg | |
Dump clearance at maximum lift | 3450 | mm | |
Reach at maximum lift | 1494 | mm | |
Wheel base | 3700 | mm | |
Tread | 2450 | mm | |
Max. breakout force | 290 | kN | |
Hydraulic cycle time-raise | 6.6 | s | |
Total hydraulic cycle time | 11.9 | s | |
Min. turning radius over tyres | 6306 | mm | |
Articulation angle | 40 | ° | |
Gradeability | 25 | ° | |
Tyre size | 29.5R25 | ||
Overall machine dimension L×W×H | 10139*3639*3950 | mm | |
Model | QSX15 | ||
Rated Power/Speed | 291/2000 | kw/rpm | |
Travel speed | 1-gear(F/R) | 6.2/6.2 | km/h |
2-gear(F/R) | 11.5/11.5 | km/h | |
3-gear(F/R) | 17.5/24.8 | km/h | |
4-gear(F/R) | 35.7/- | km/h | |
