XCMG 20m fire tender trucks JP20C2 water and foam towers fire truck howo chassis for sale
Summary
- Model Number:JP20C2
- Brand Name:XCMG
- Place of Origin:Xuzhou,Jiangsu,China
- Size:10620*2500*3880mm
- Max Work Height:20m
- Fuel Type:Diesel
- Emission Standard:National Ⅴ
- Tank Capacity:7001 - 10000L
- Horsepower:351 - 450hp
- Transmission Type:Manual
- Type:Aerial
- Drive Wheel:6x4
- Certification:CE/ISO9001
Specifications
- Weight:32250.000kg
- Condition:New
- Moving Type:Other
Packaging & Shipping
- Delivery Lead Time:7 days for ready goods
- Minimum Order:1 Piece
- Supply Ability:10,000 Set/ Sets per Month
- Total Quantity In Stock:Over 5000
- Delivery Port:Any Port In China
20m fire tender trucks JP20C2 water and foam towers fire truck howo chassis.

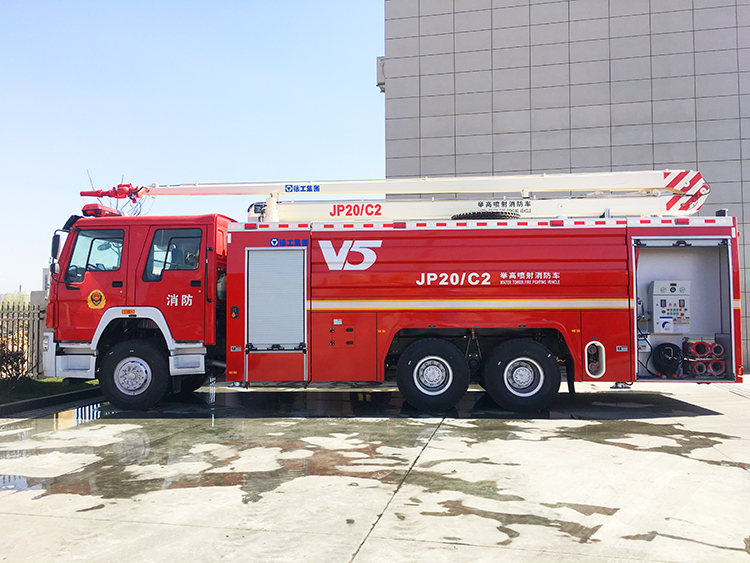

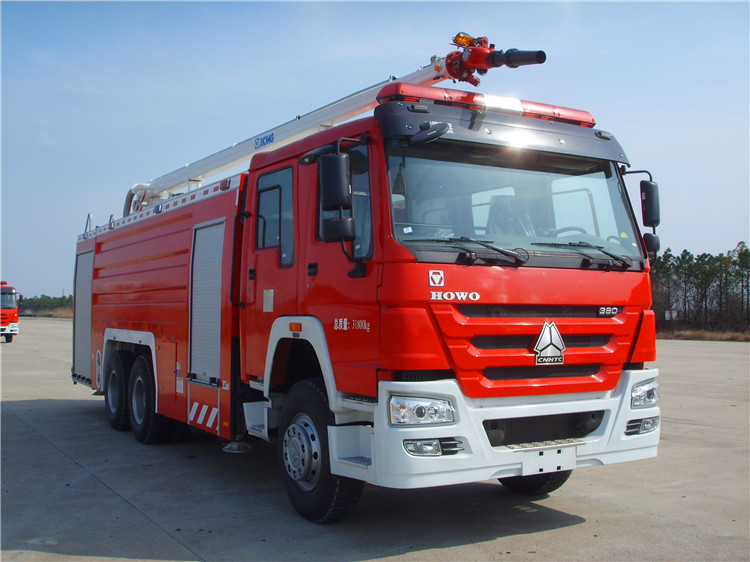

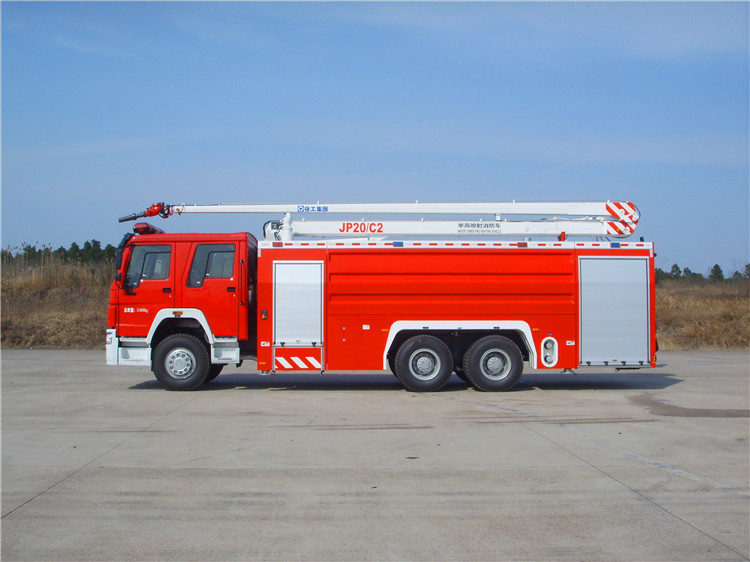

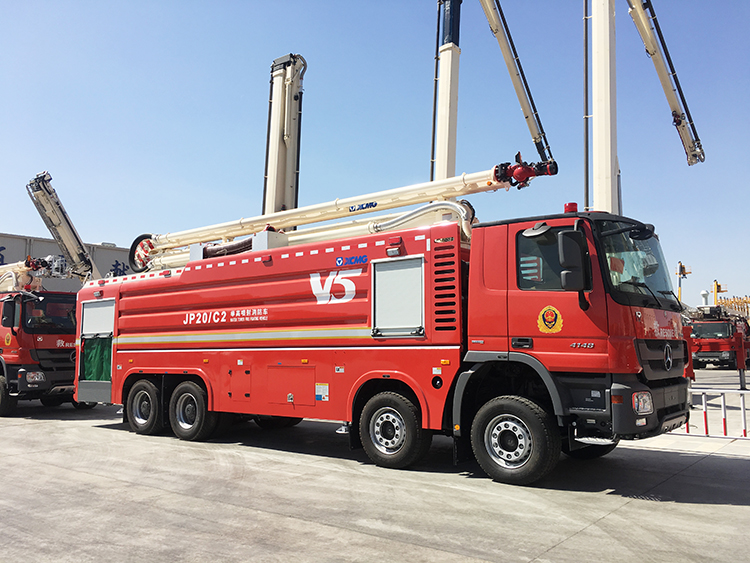

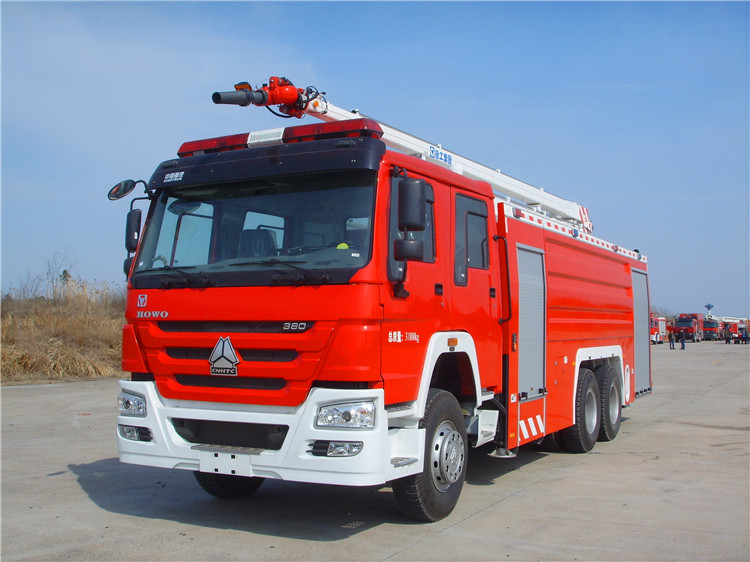

XCMG JP20C2 water and foam tower fire truck is a multi-function main battle vehicle having functions of water tanker, foam truck and high-spray truck. It is widely used in fire fighting and rescue work in middle and high-rise buildings in towns, mines, oil fields, and factories.
Advantages and highlights:
1. The JP20C2 chassis adopts the HOWO ZZ5347V4647E5 chassis, featuring with the National-V emission, advanced performance, large carrying capacity, full power reserve and power.
2. Perfect functions of fire fighting system.
3. As the truck adopts the distributed control technology based on PLC and CAN bus.
4. The hydraulic system has no pressure loss and is energy-saving and environmentally friendly.
5. The machine adopts a professional new appearance design, with a generous appearance and good user-friendly operation.
|
Overall size: (L x W x H) |
10620×2500×3880mm |
|
|
Full-load weight |
32250kg |
|
|
Maximum truck speed |
≥90km/h |
|
|
Minimum turning diameter |
≤23m |
|
|
Approach angle |
≥16° |
|
|
Departure angle |
≥9° |
|
|
Maximum gradeability |
≥25% |
|
|
Outrigger span |
Outrigger longitudinal span |
5835mm |
|
Outrigger transversal span |
2270mm |
|
|
Maximum working height |
20m |
|
|
Maximum working radius |
12m |
|
|
Jib rack luffing angle |
First section arm (related to water level): 0°~85° |
|
|
Second section arm (related to water level): 0°~170° |
||
|
Turning range |
360° continuous rotation |
|
|
Leg deployment time |
≤20s |
|
|
Boom operation time |
≤45s |
|
|
Rotation speed of the boom |
0.5~1.5r/min |
|
|
Fire pump |
Rated flow |
≥50 L/s |
|
Rated pressure |
≥1.4 MPa |
|
|
Fire monitor |
Model |
PLKD64 |
|
Rated flow |
50 L/s |
|
|
Rated pressure |
≤0.9 MPa |
|
|
Shoot range |
≥60m |
|
